2026 AMCO F17-3422

2026 AMCO F17-3422

Standard (Non-Folding) Disc Harrows

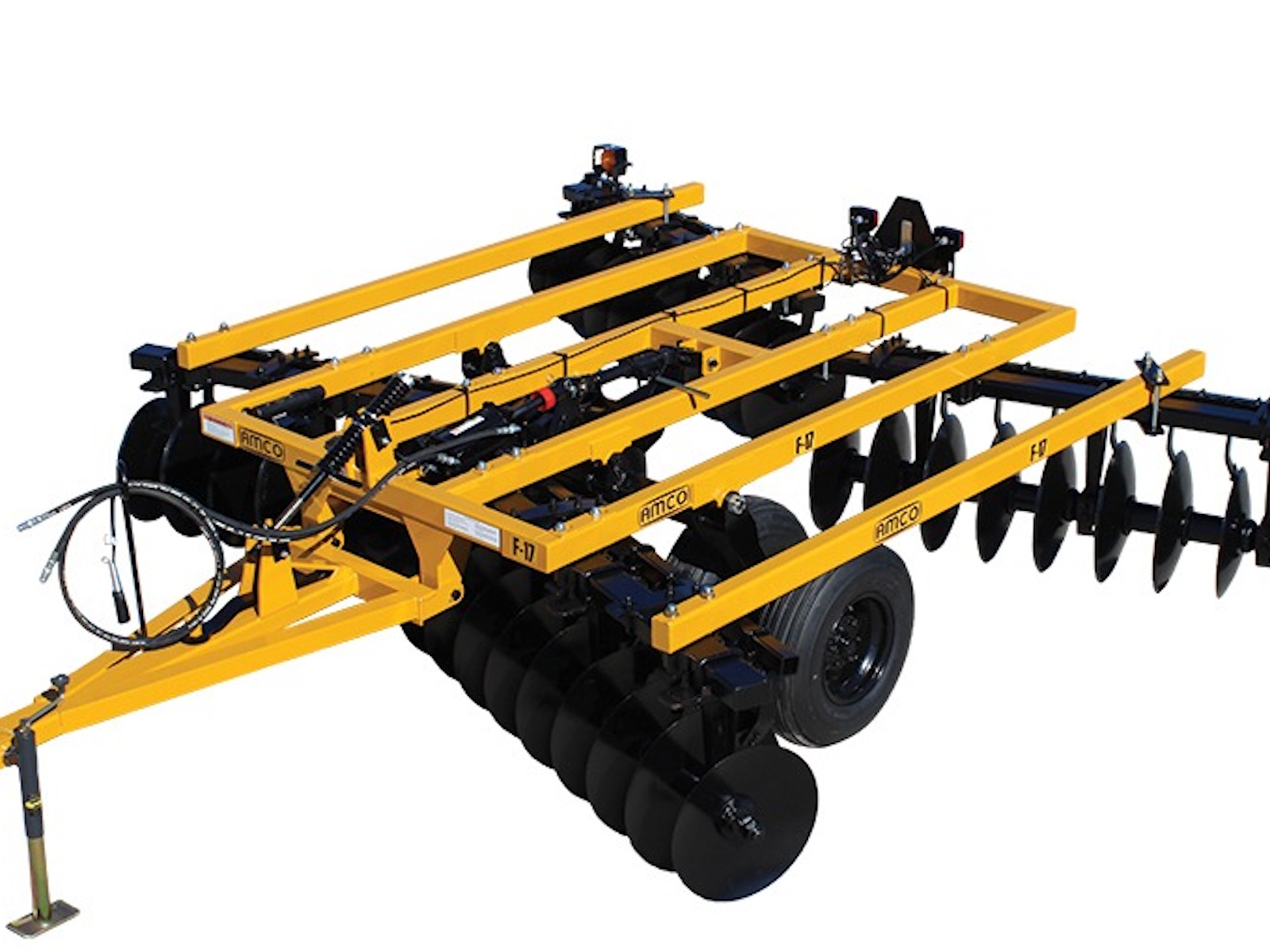

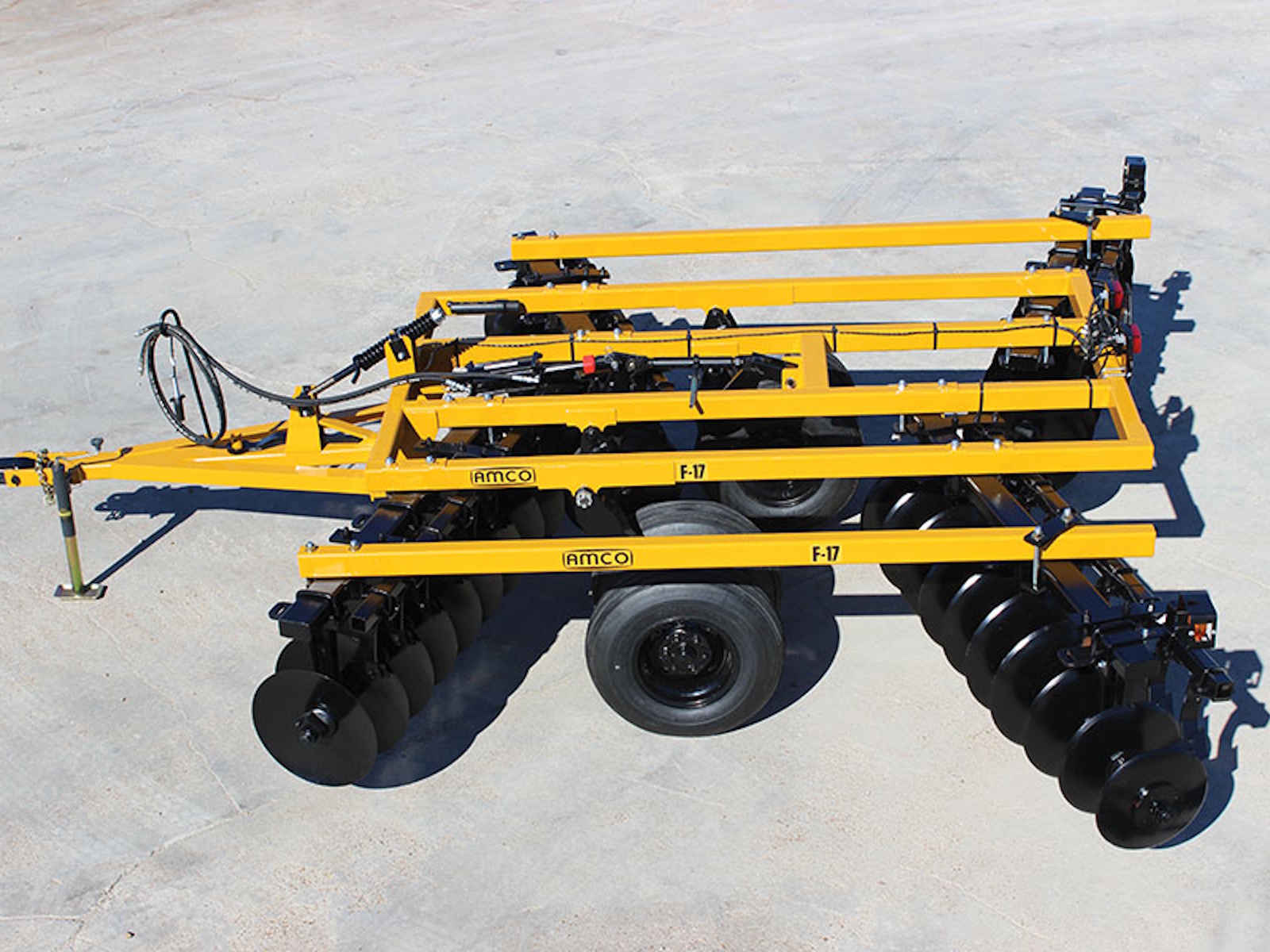

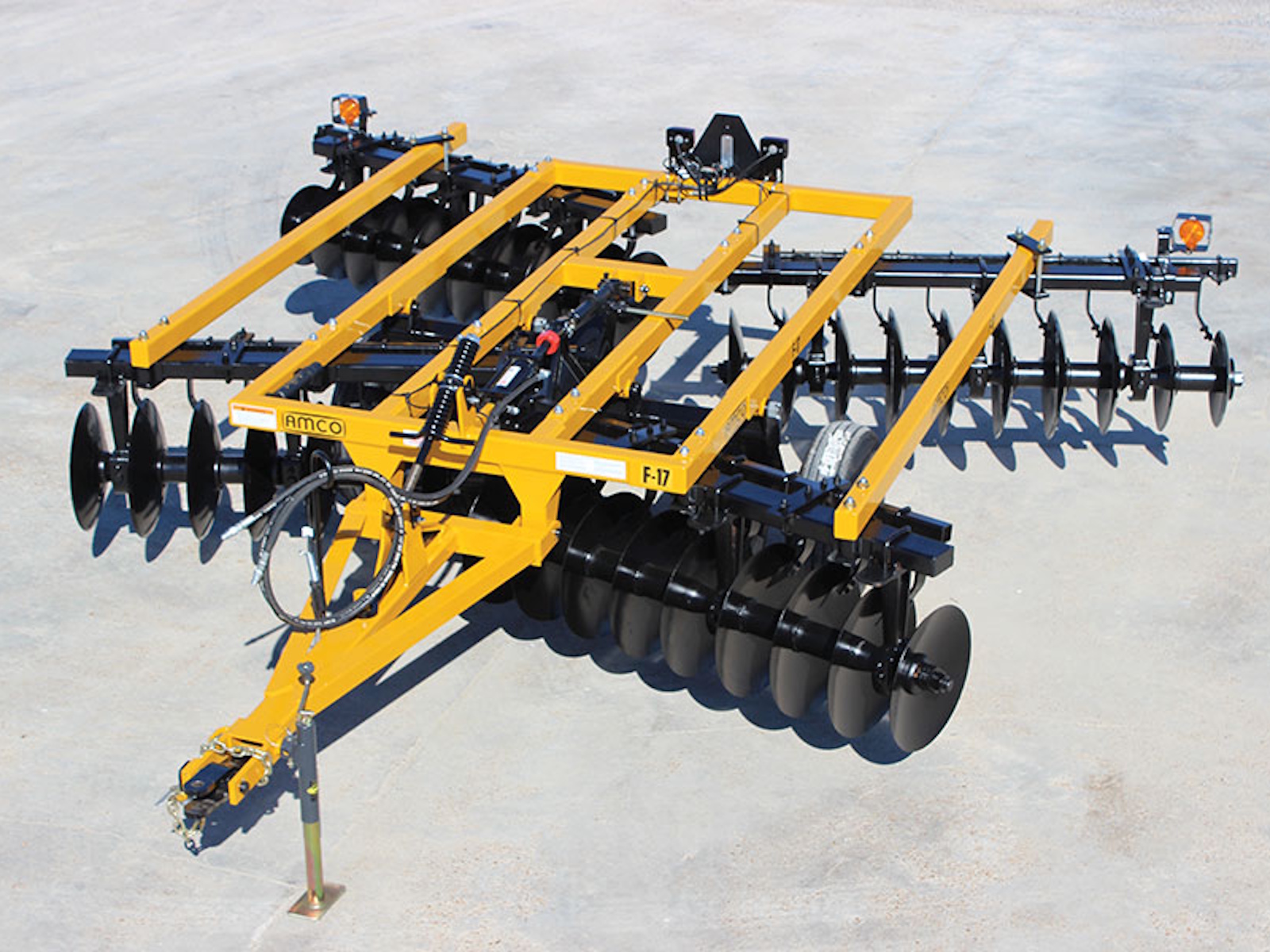

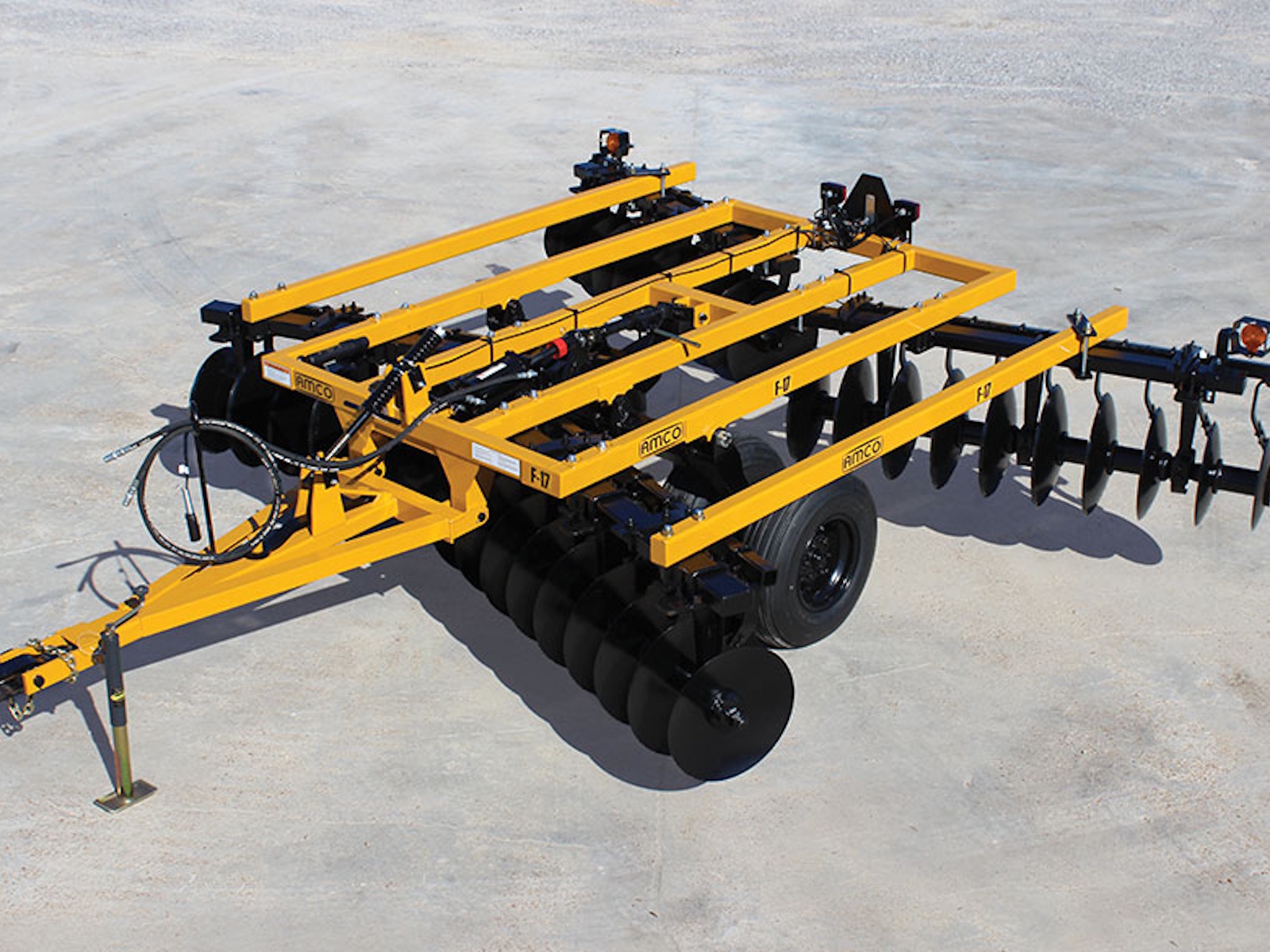

For dependable seedbed preparation, you can rely on AMCO’s F17 Double Offset Tandem Disc Harrow, our non-folding option for breaking and smoothing the soil.

Weighing between 296 and 337 pounds per cutting foot, the F17 Disc Harrow is available in 9‘3″, 10‘6″, 12‘0″, 13‘6″, 15‘0″, and 16‘6″ models for use with tractors ranging from 68 to 176 engine HP.

Features May Include:

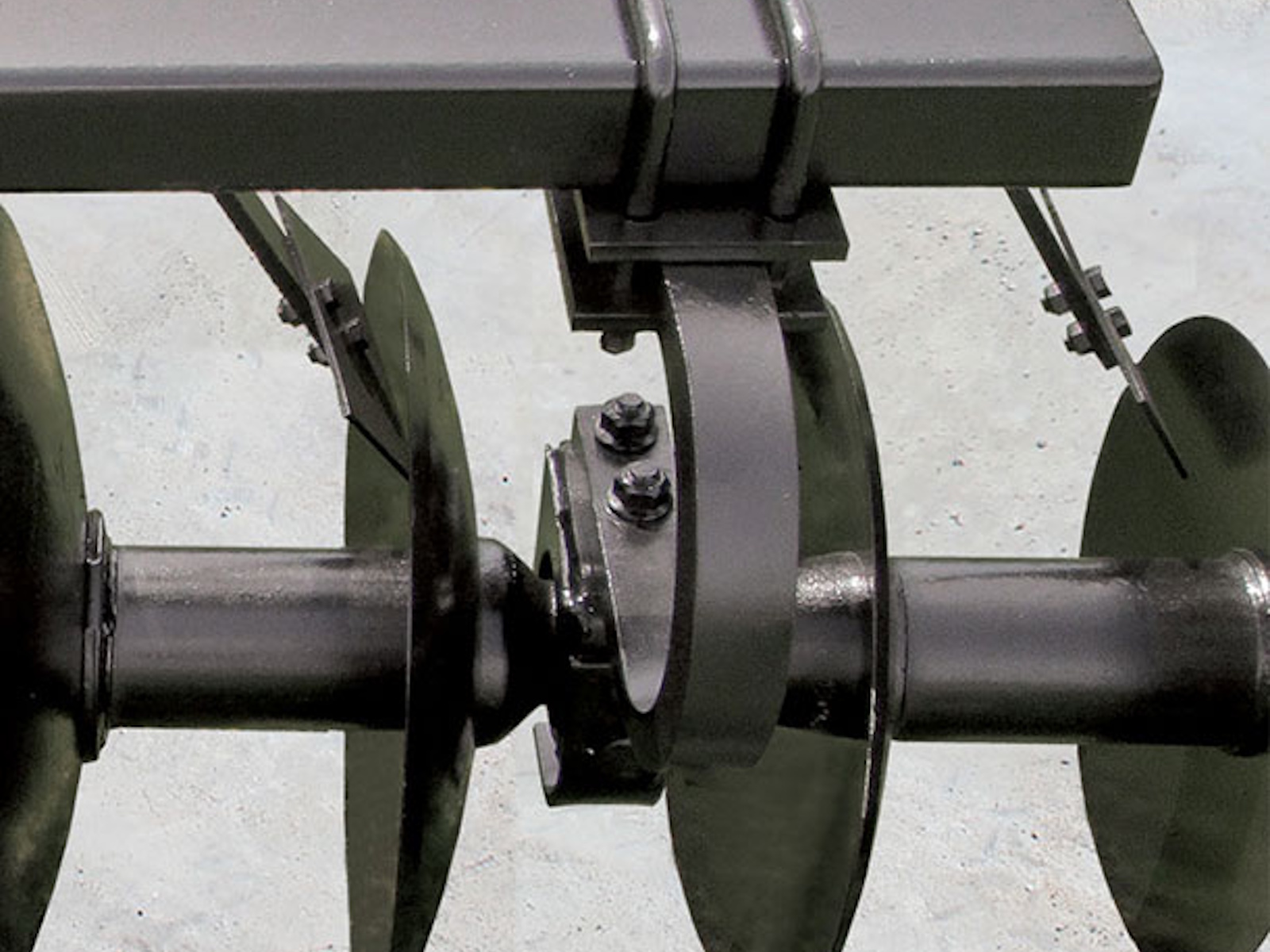

• Disc gangs feature maintenance-free bearings with three-year warranty; bearings eliminate possibility of contamination and need for re-lubrication
• Wear guards protect bearing housing
• Features 1½” square, high-carbon, cold-rolled steel axles

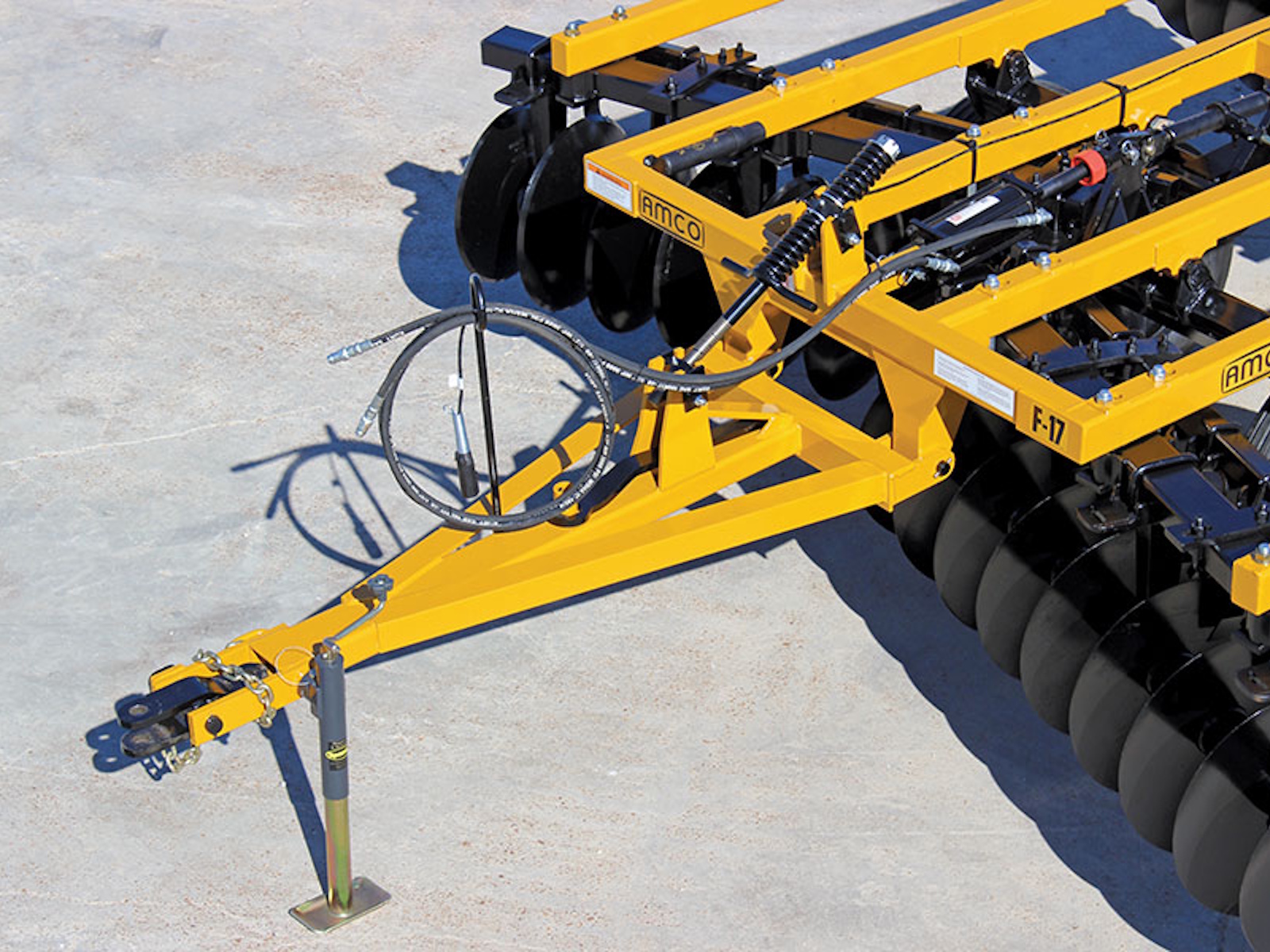

• Includes 70″ long pull tongue with tongue jack and reversible clevis
• Features adjustable gang angle

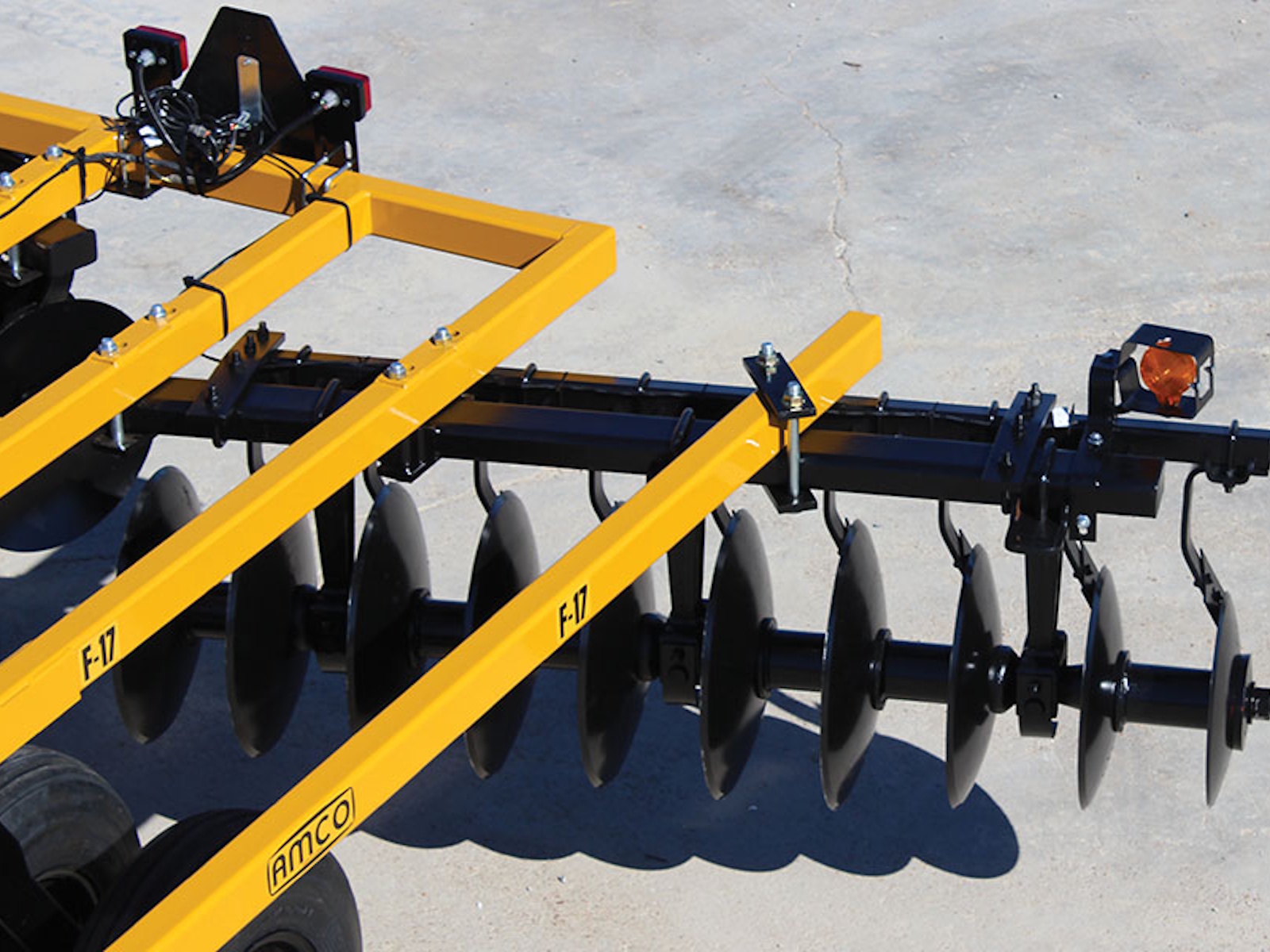

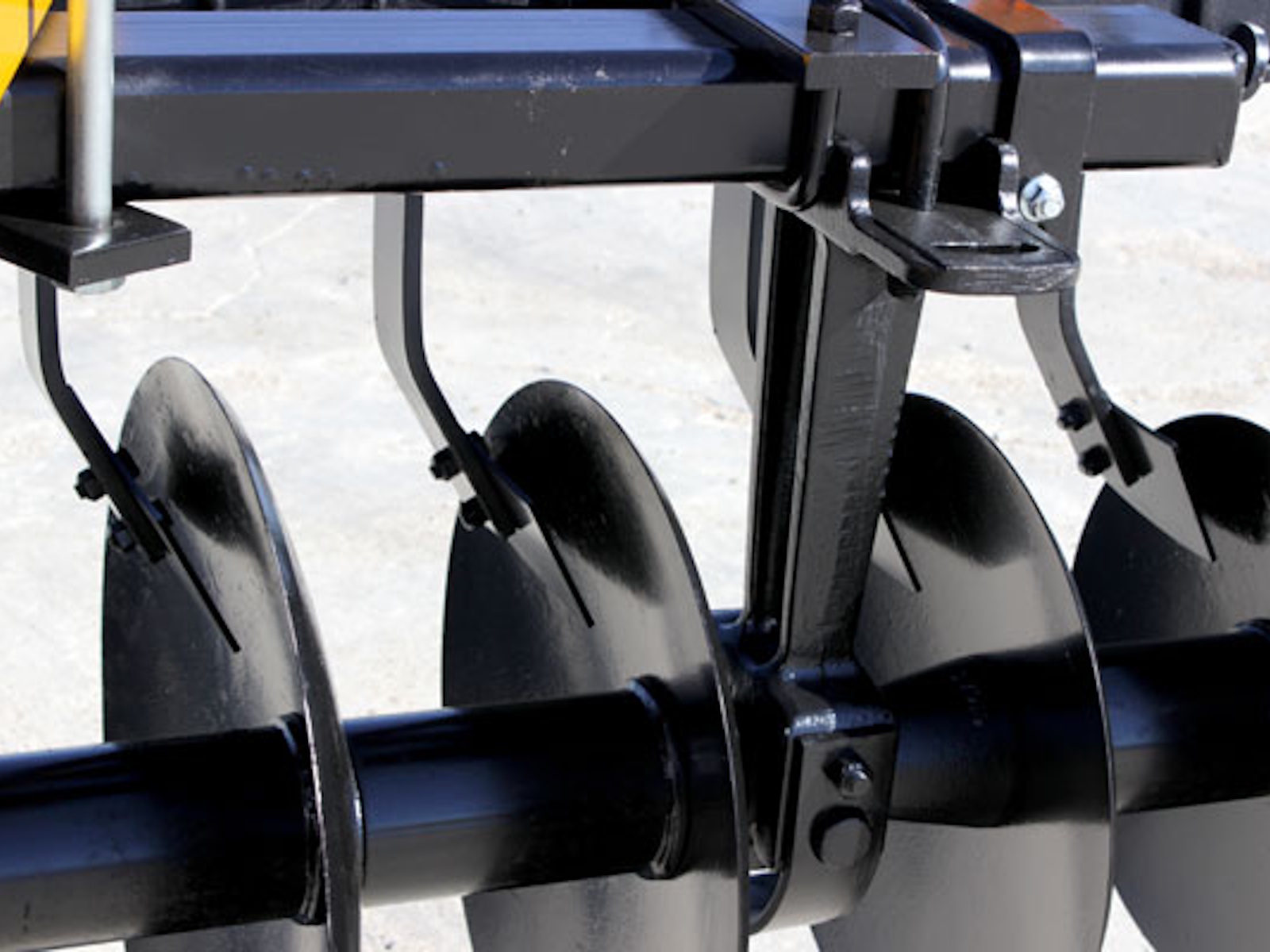

• Equipped with ³⁄₁₆” x 6½” x 8″ high-carbon steel, replaceable, adjustable scraper blades mounted on bars of 2½” x 2½” square tubing; the scrapers are attached to the 2½” x ½” thick arms with heavy-duty U-bolts
• Features standard 22″ x ¼” plain or cutout blades on 9″ spacing; 24″ blades optional
• Diminishing blades on the rear gang provide a smooth, even cut

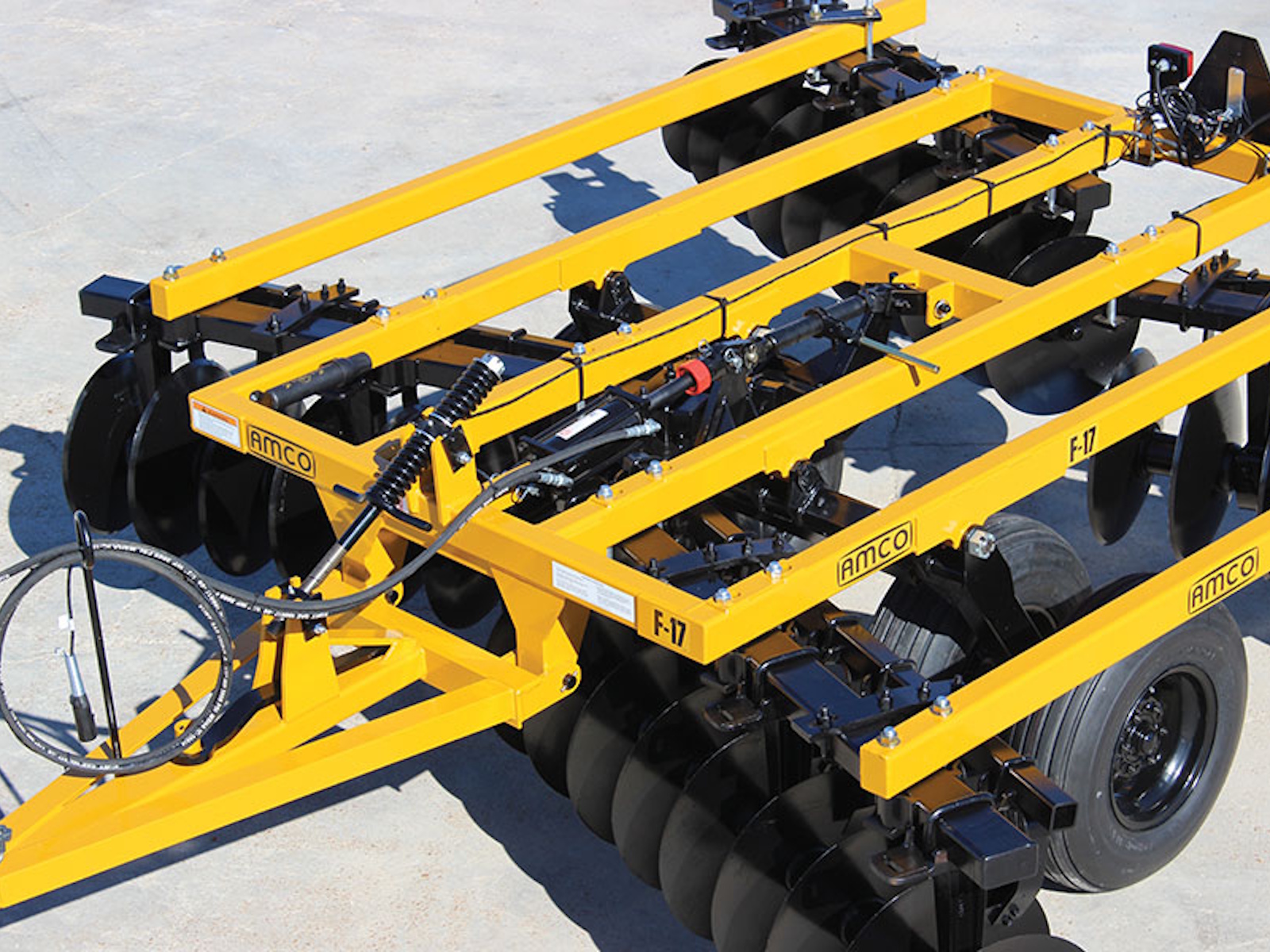

• Comes standard with gang bolt wrench, light kit, and 4″ x 8″ (3,000 PSI) hydraulic cylinder with stroke control and hose bundle to tractor
• Safety features: Safety chains, slow-moving placard, and light kits
• Optional equipment: Dual wheels in place of single wheels on 9′3″, 10′6″, and 12′0″ models; cutout blades in place of the standard plain blade (more blade configurations are available)
