2026 AMCO F42B-3224

2026 AMCO F42B-3224

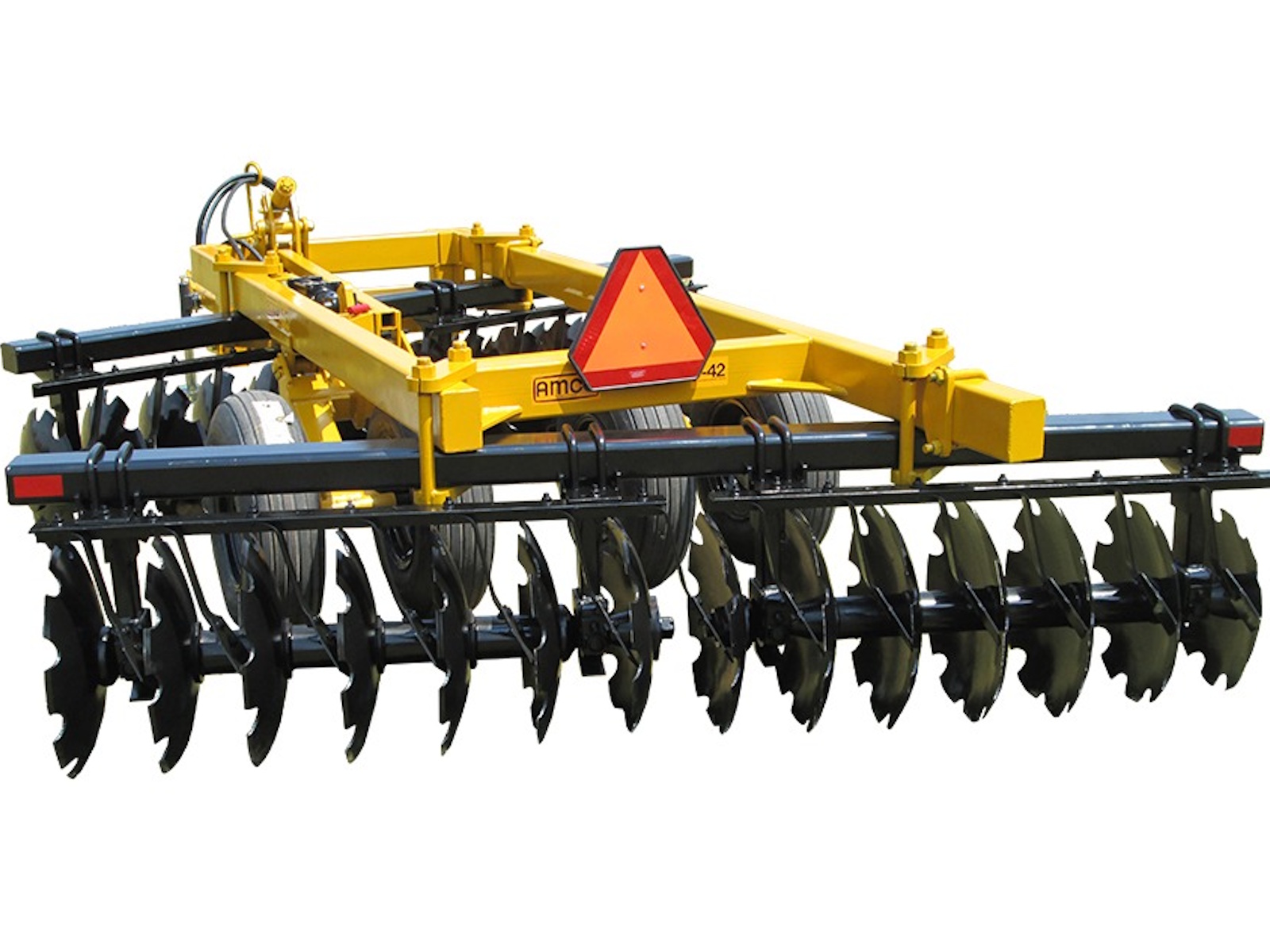

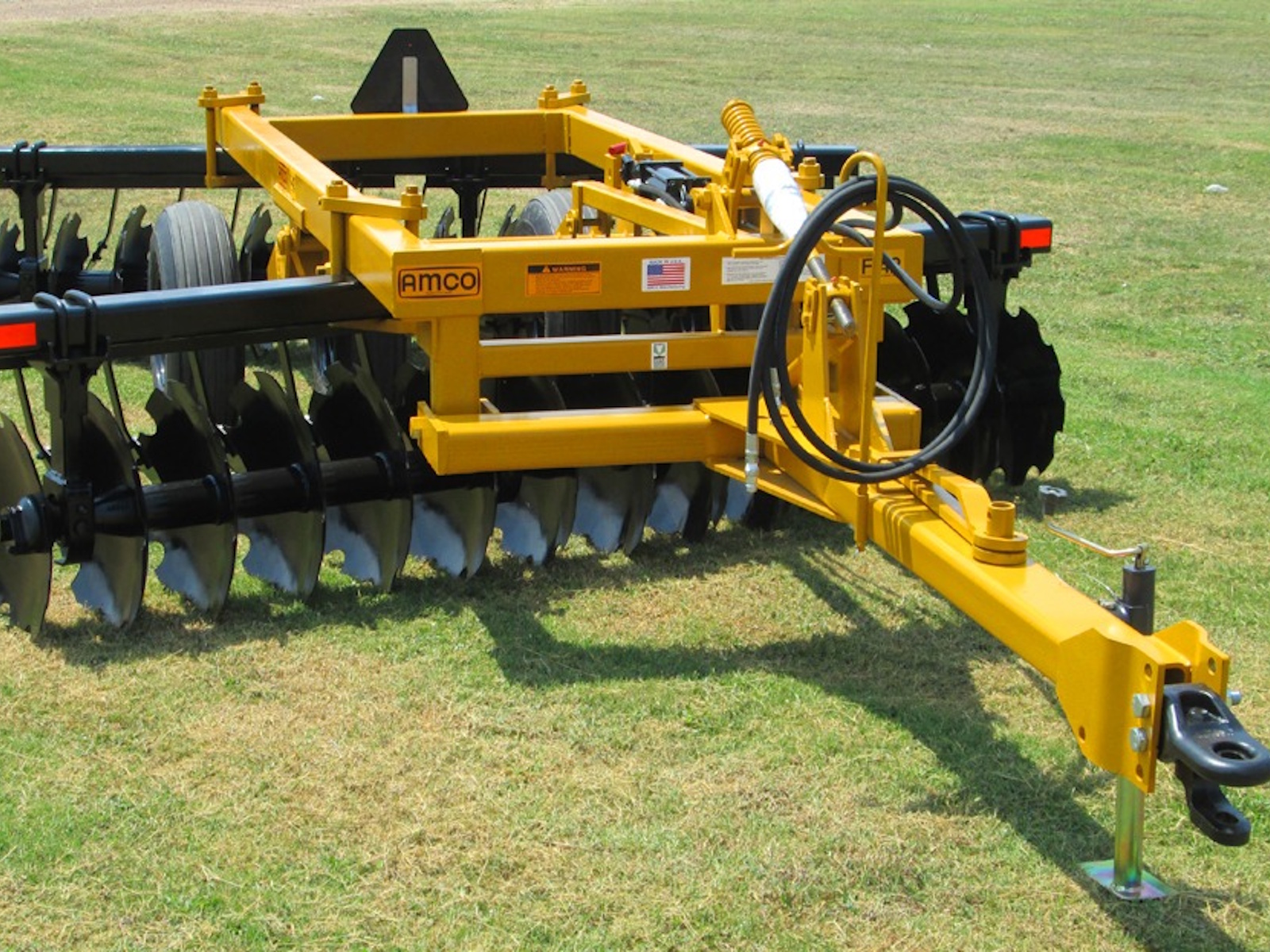

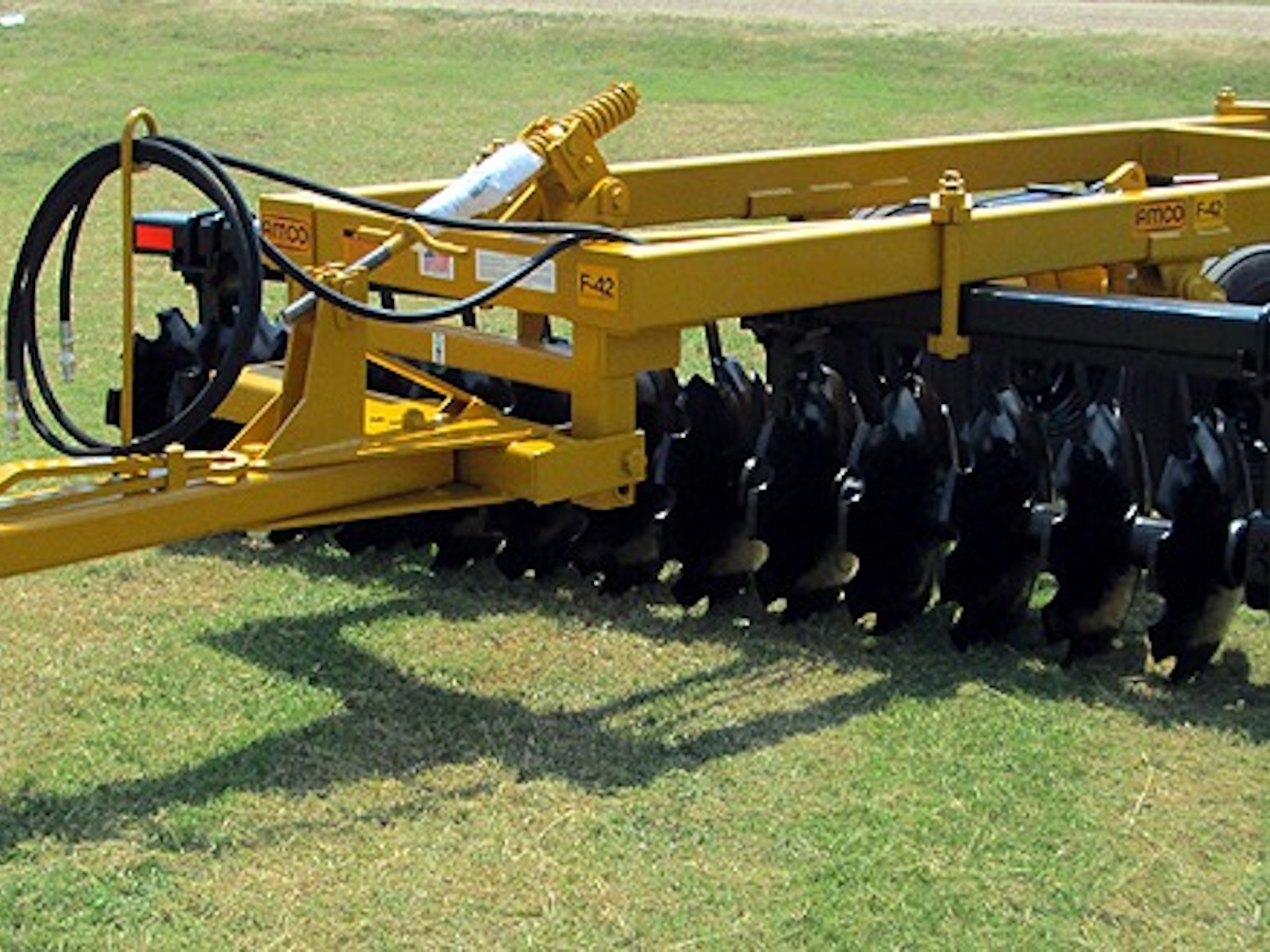

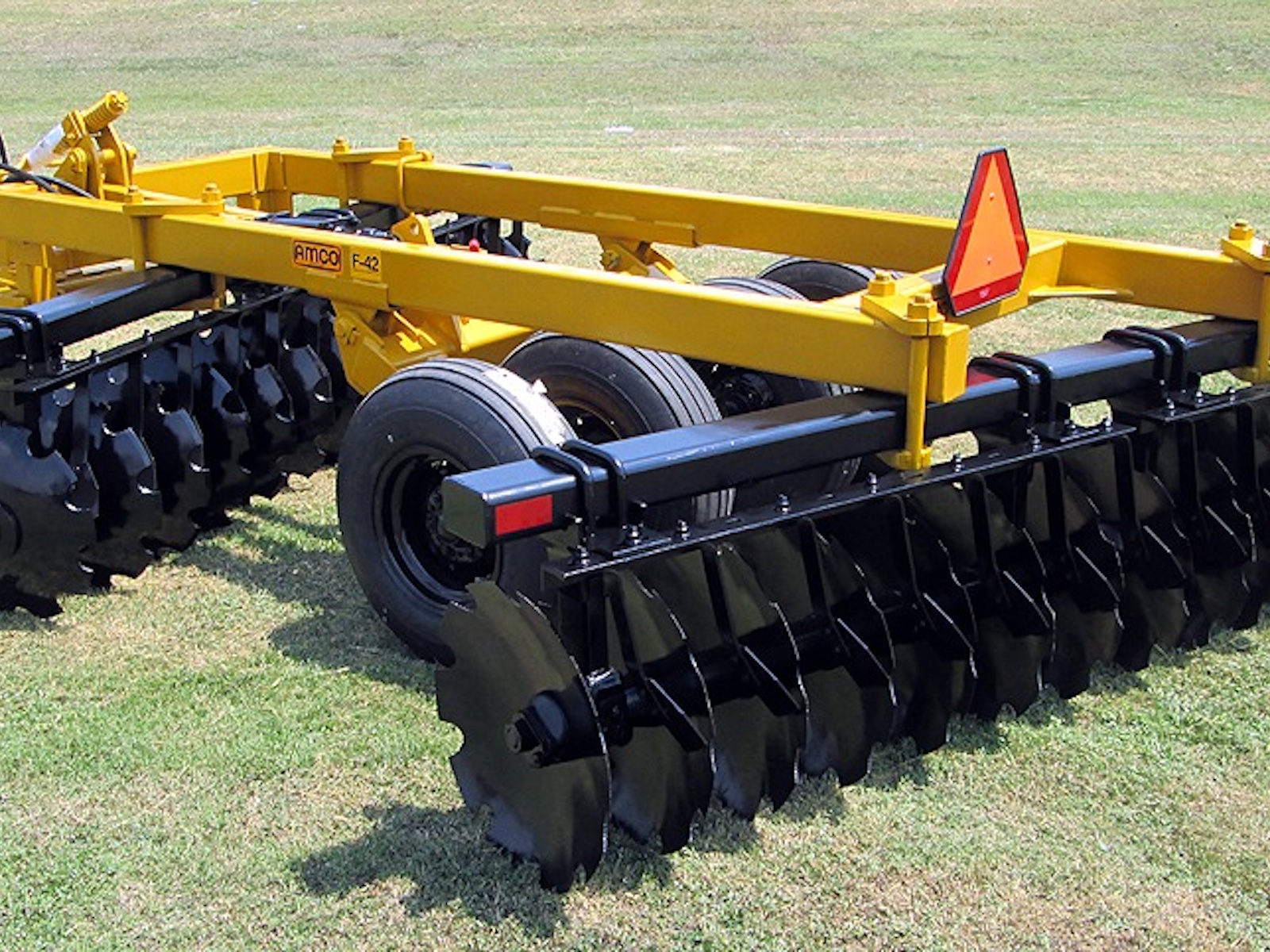

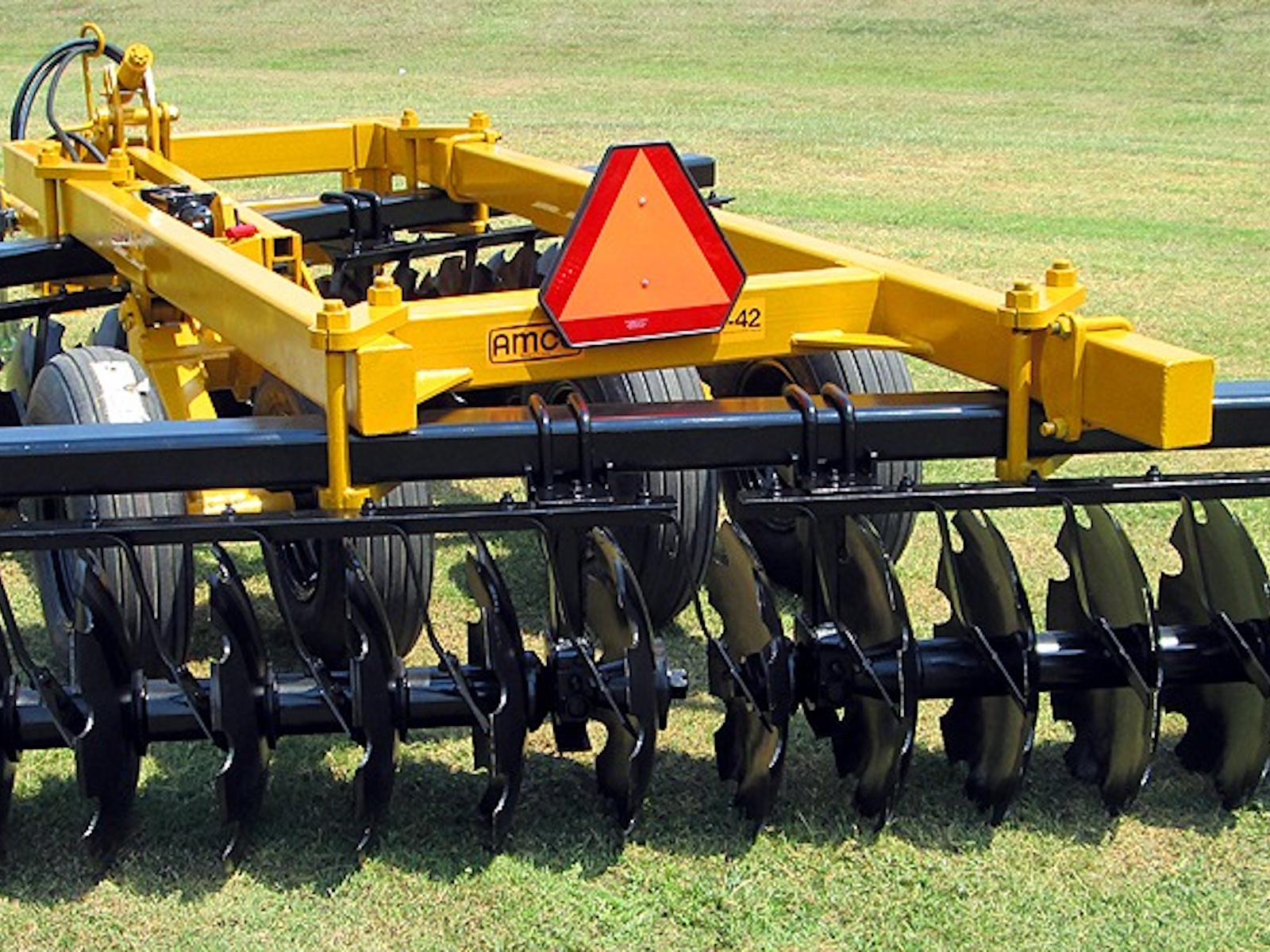

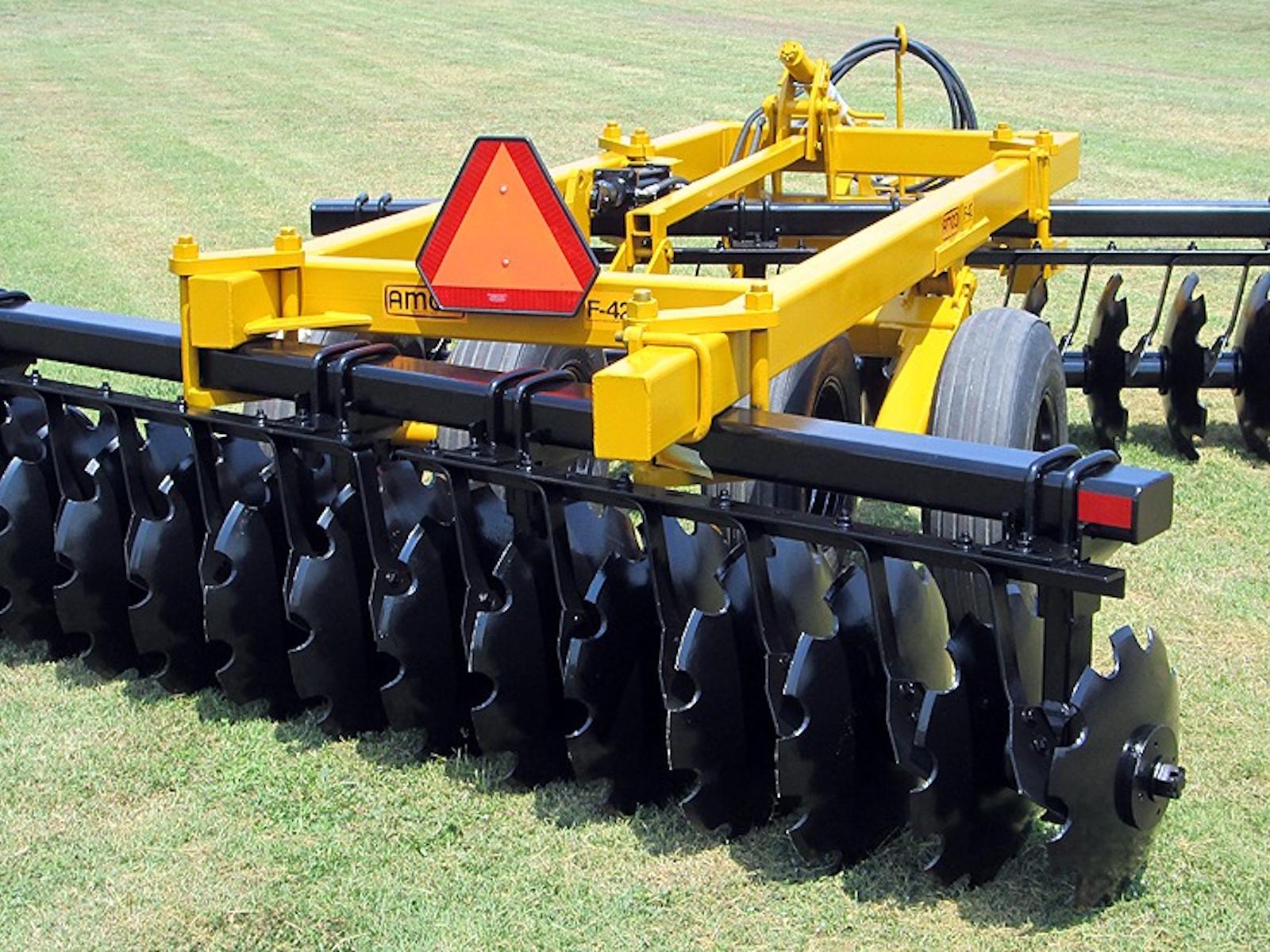

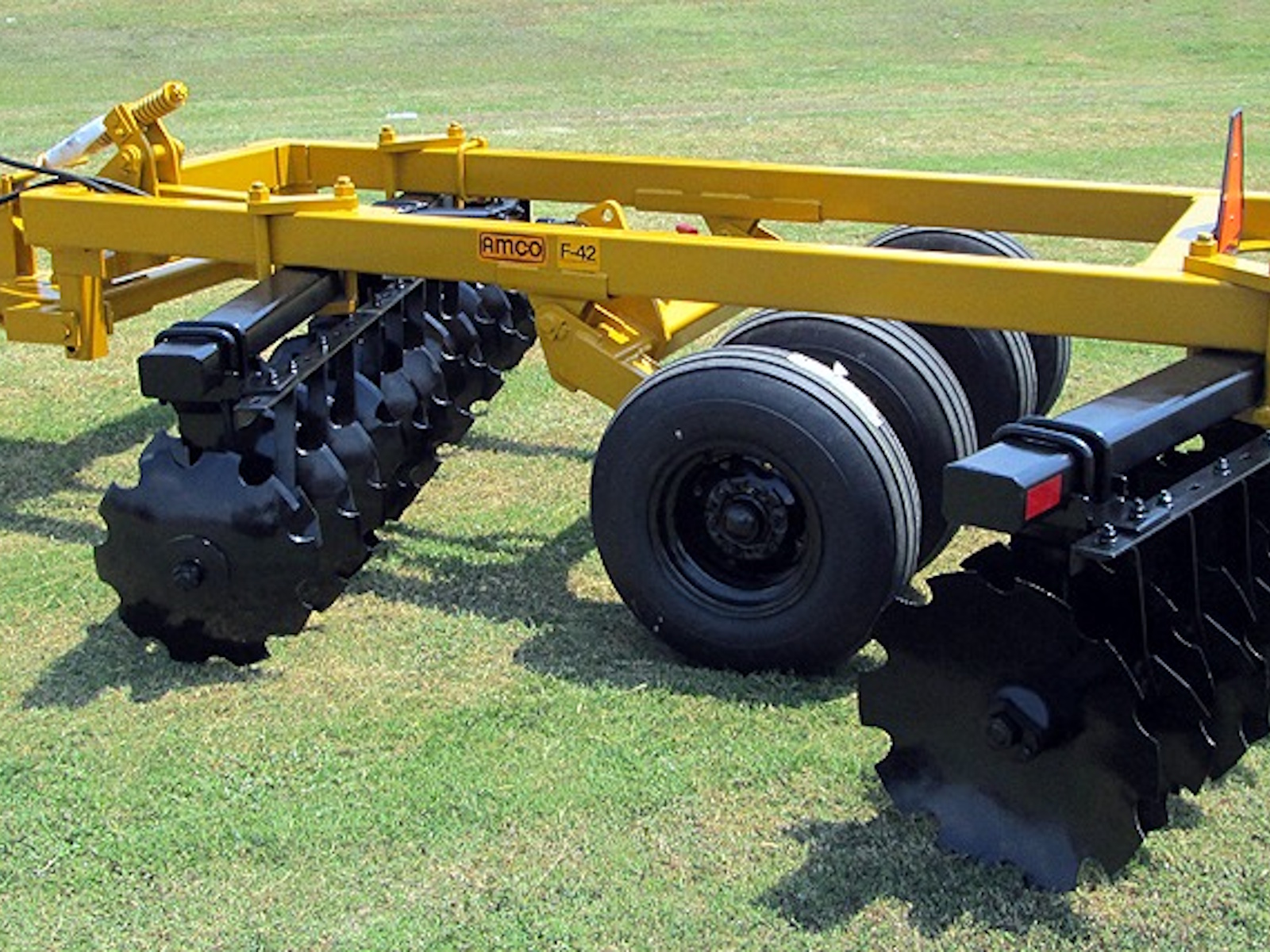

9″ Spacing Wheel Offset Harrows

AMCO offers Wheel Offset Harrows with 9″ blade spacing in three options for lighter-duty work (D41), general purpose (F41), and heavy-duty primary tillage (F42).

Features May Include:

Helps you prepare the ideal seedbed by cutting and sizing residue, eliminating clumps, and loosening packed soil.

• Standard features: Adjustable 88½” tongue with base hitch and tongue jack; 1½” square, high-carbon, cold-rolled steel axles; 24″ x ¼” plain or cutout blades (optional 26″ x ¼” plain or cutout blades available)
  • Backup blades provide added support for working blade
• Safety features: Safety chains, slow-moving placard, and light kits
• Optional equipment: Cutout blades in place of plain blades or feathering blades for rear gang
• Equipped with ³⁄₁₆” x 6½” x 8″ high-carbon steel, replaceable, adjustable scraper blades mounted on bars of 2½” x 2½” square tubing; the scrapers are attached to the 2½” x ½” thick arms with heavy-duty U-bolts
• Includes heavy-duty rigid bearing risers; Shock Absorber Bearing Risers optional
• Dual 9.5L tires on 15″ x 8″ 6-bolt wheels improve flotation
• Positive screw-type depth control maintains set cutting depth
• Wear guards protect bearing housing from excessive wear
• Heavy-duty 3,000 PSI hydraulic cylinders adjust cutting depth and raise the disc for transport
• Features outriggers of 16’6″ and 18’0″
• Disc gangs feature maintenance-free bearings with three-year warranty; bearings eliminate possibility of contamination and need for re-lubrication
• Frame clamps help ensure proper frame alignment, even under the toughest field conditions
• Leveling spring and multiple tongue settings allow adjustments for changes in soil conditions
• Weights of 164 to 208 pounds per blade
