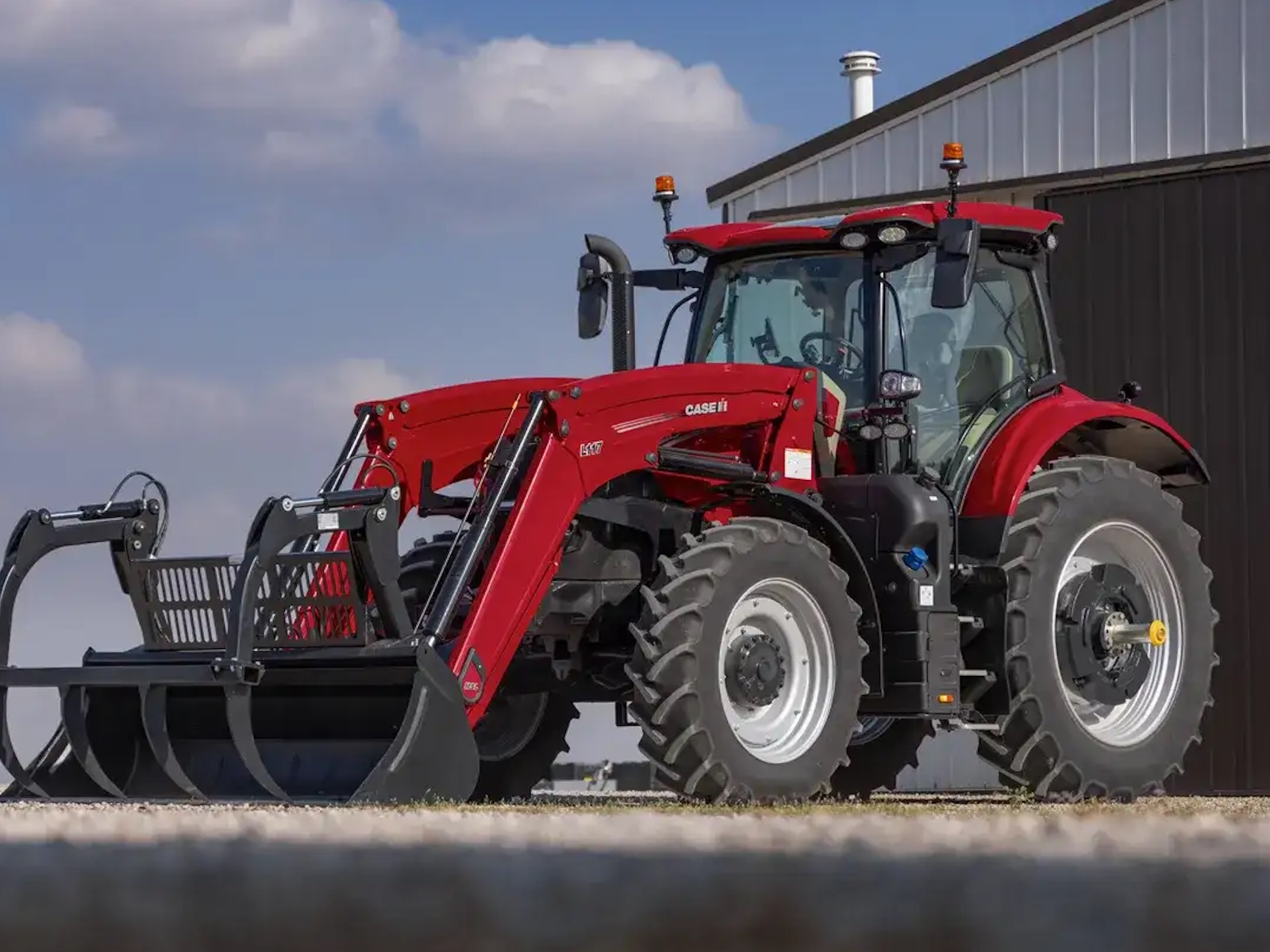

2027 Case IH L117

2027 Case IH L117

Designed for Puma® 185- 260 tractors.

• Max Lift Capacity: up to 5,622 lb. (2 550 kg)
• Max Height: up to 168 in. (4 270 mm)
• Boom Breakout Force: up to 6,768 lb. (3 070 kg)

Faster Cycle Times for More Productive Work Days

L10 series loaders have the features to make livestock feeding, material handling and other loader work more efficient. Faster cycle times, due to faster hydraulics or the ability to see better and move more nimbly, help you get more work done, quicker.

Features May Include:

Frame Design

Rugged Durability Meets Excellent Visibility

Developed with you in mind, L10 series loaders feature better visibility, faster operation, improved lift heights and working angles - all on a stronger, lighter framework.

• Rugged Durability: A chamfered and embossed arm design increases strength. Cast and forged components add even more strength at critical stress points, ensuring lasting reliability and a lower cost of ownership.
• Better Visibility: A curved arm design, along with a low knee and cross-tube positioning, provide a 30 percent increase in field of vision when the loader is in transport position. Smart hose routing and protective covers help keep hydraulic lines out of the way and from interfering with sight lines.

Connections

Quick, Tool-Free Connections

No loader is easier to mount and dismount than an L10 series loader — it can be mounted or removed from the tractor in a minute or less with no tools required, or loose parts to worry about.

• Clear Pin Engagement Confirmation: Get clear visual confirmation of pin engagement from the tractor seat via a green marker on the inside of the bearing box
• Automatic Attachment Locking: Make quick work of attachment changeout thanks to safe, ergonomic and automatic attachment locking
• Quick Release Hydraulic Couplers: Our best-in-class hydraulic quick release couplers simplify hookup of hydraulic-operated attachments — even under pressure

Hydraulic System

Reduce Operating Costs with Optimized Hydraulics

• When you have hundreds of bales to move, saving a few seconds per lift adds up. L10 loaders feature larger ports on the hydraulic cylinders to help optimize oil flow to better match the increased hydraulic capacities of today’s tractors. More-efficient oil flow means the hydraulic system performs faster while generating less heat and using less fuel, resulting in lower operating costs.

Suspension

Enjoy a Smoother Ride

• Long days on the tractor seem only to get longer when your loader dishes out a beating. Case IH SoftRide loader suspension smooths the bumps of heavy loader work. Accumulators on L10 series loaders provide rapid oil movement and rapid response to any bumps in the road or across the field. This dampening, which can be electrically switched on or off, helps reduce operator fatigue while preserving the loader’s longevity.
