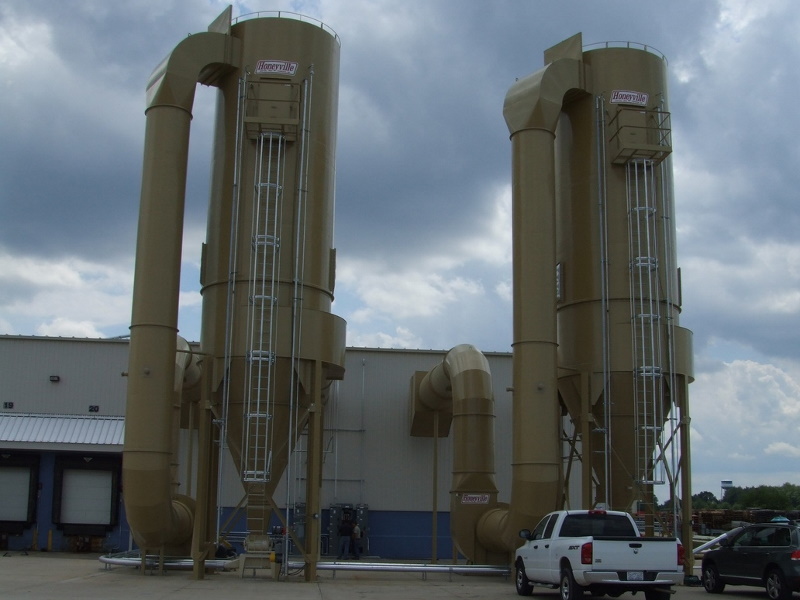

2023 Honeyville MPC-361-12

2023 HONEYVILLE MPC-361-12

The Medium Pressure Cleaning ("MPC") Filters are the newest product in the Honeyville Dust Collection line. They feature a continuous on line cleaning system so you have the same CFM at the end of the day that you started with.

Some of the features include:

• Bag Cleaning: Medium pressure back flush cleaning of bags
• Cone: 67° standard cone section with bolt-on inspection cover
• Inlet: Low pressure 110° involute inlet section with inner cone baffle and vortex breakers
• Optional high entry inlet
• Bags: 4.6" dia. 16 oz. polyester bags with mirror finish
• Cages: 4.5" dia. galvanized wire cages
• Bag Removal: No-tool top bag and cage removal
• Construction: Welded and bolted construction using hot rolled carbon steel
• Rupture type explosion relief panels
• Finish: The interior and exterior are prime coated followed by a silicone alkyd industrial enamel paint on the exterior
• Ladder: Galvanized service ladder and safety cage
• Service Access: Service platform at hinged access door to walk-in plenum for filter inspection and service
