2026 Kubota M5N-091 4WD Rops Narrow 24 Speed
Get in Touch
Description
2026 Kubota M5N-091 4WD Rops Narrow 24 Speed
M Narrow Series

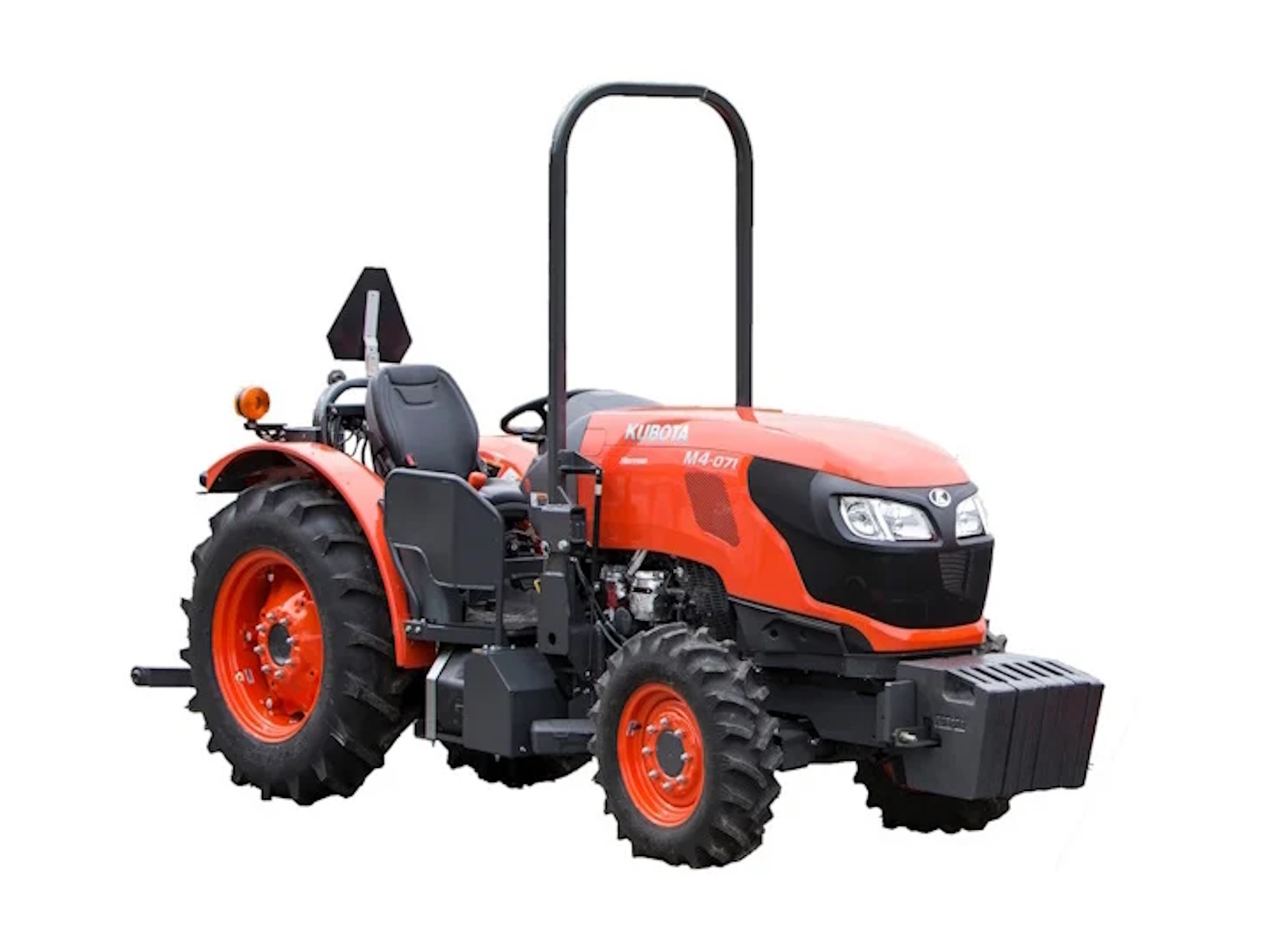

M-Series specialty tractor features a Kubota-designed and Kubota-built V-3800-Tier IV engine, performance-matched to bring Kubota durability to the strenuous demands of specialty agricultural applications. Creeper options are available to add even more precision to specialty tasks, with a 36-speed creeper available on the M5N models and an 18-speed creeper option on the M4N-071 narrow.
Features May Include:
Hood Design
- The new hood is more than 5" lower than the previous model (M5N-091/111), providing enhanced visibility, without changing the wheelbase.
Transmission
- High productivity requires versatility, such as traveling at low or sustained speeds. This tractor's transmission has 12F x 12R speed, with six speeds in two ranges. An optional High/Low allows for a 24F x 24R.
Info
Industry
Agriculture
Make
Kubota
Model
M5N-091 4WD Rops Narrow
Trim
24 Speed
Year
2026
MSRP
N/A
Category
Tractor
Subcategory
4WD
Specs
Load Capacity
Lift Capacity at 24 in. Behind Lift Point SAE: 3307 lbs | Lift capacity at 24 in. behind lift point OECD: 2976 lbs
Fuel Type
Diesel
Cylinders
4
Ground Clearance
11.4 in
Alternator
80 Amp
Notes
Aspiration: Turbocharged | No. of Speed: F24 × R24 | Main Gear Shift: 6-speed 2 ranges with Hi-Lo | Shuttle Shift: Electro-hydraulic | Pump Capacity: 16.7 gpm | 3-Point Hitch: Rigid lower link, easy adjust stabilizers | Category: II | Control System: Position, draft Top Link Sensing | No. of Standard Remote Valves: 2 with Flow Control | Front Drive System: Electronic 4WD engagement with Bi-Speed | Deck type Rubber-Mounted w/ Rubber Mat: Semi-flat
Fuel Capacity
20.1 gal
RPM
Rated Engine: 2400 rpm | PTO Speed: 540 rpm / 540E rpm
Width
53.5 in
Engine Type
V3800-CR-TIEF4 – Direct Injection, water-cooled 4-cycle diesel, Common Rail System, Turbocharger, Intercooler, DPF, DOC, SCR
Power/Horsepower
Rated Engine Power: 92.5 hp - 105.7 in | PTO Power at Rated Engine RPM: 75 hp - 88 hp
Height
59.8 in
Weight
5357 lbs
Tires
Front Size: 8 – 16 | Rear: 12.4 – 24 | Front Tread: 43.3 in | Rear Tread: 37.2 in – 54.5 in
PTO Type
Electro-hydraulic
