2026 Land Pride BB4512
Get in Touch
Description

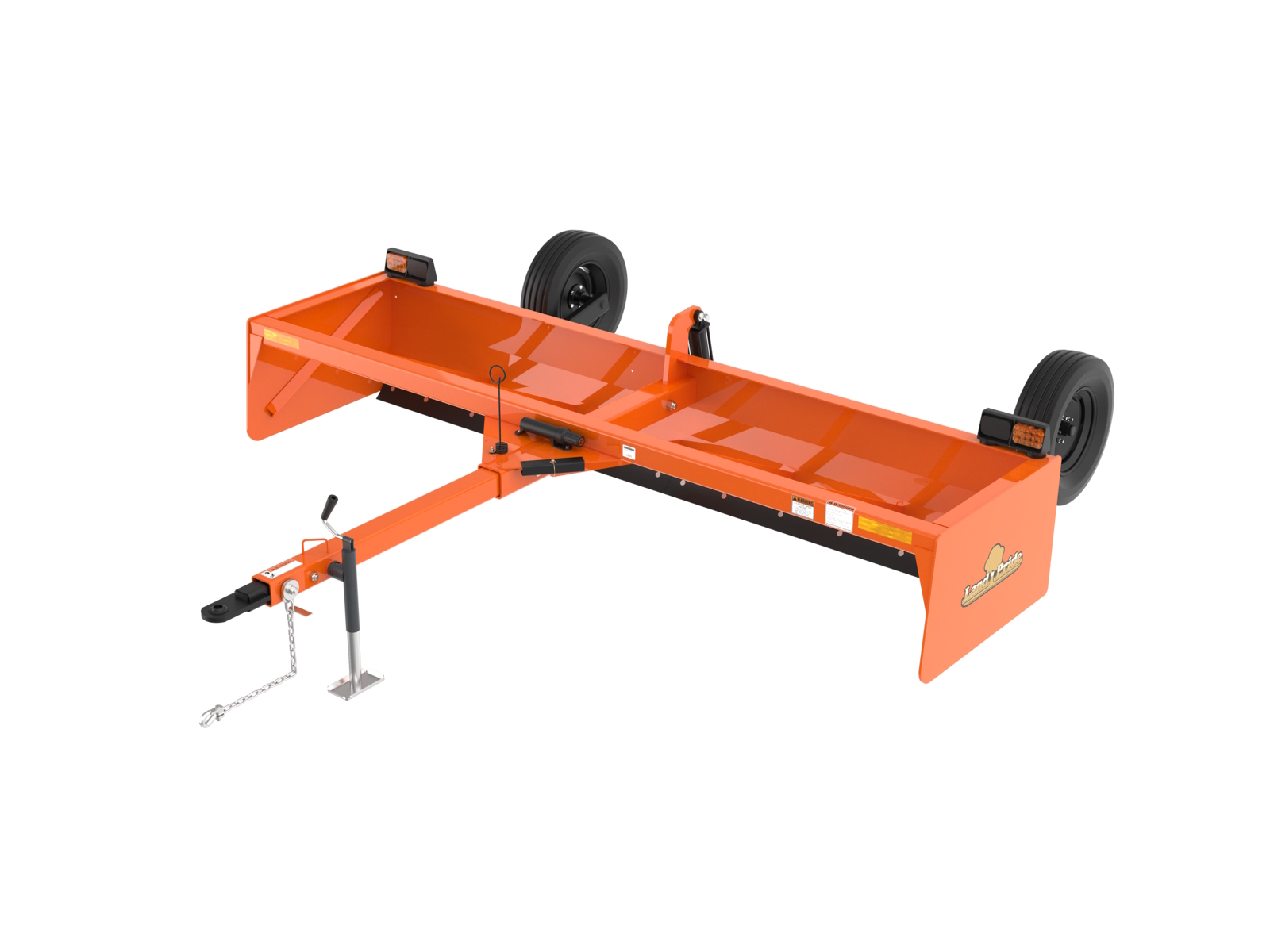

2026 Land Pride BB4512
Land Pride BB45 Series Pull-Type Drag Scrapers, with standard fixed axle or optional tilt axle, are ideal for moving large quantities of material, leveling, and finish grading. Scrapers with the optional tilt axle can do everything the standard axle does, as well as remove material on an angle for sloping, terracing and ditching. Material can be transferred by dragging it to nearby locations and raising the scraper to deposit the load. Surfaces can be graded and leveled by scraping material from high areas and allowing accumulated material to flow under the grader blade in to lower areas.
Features May Include:
- Optional Weight Tray
- Weight tray can be filled with 760 lbs. of concrete to help force the cutting blade into the material.
- 1/2" x 6" Cutting Blade
- High carbon steel heat-treated for hardness gives the cutting blade long life. Reversible so both edges can be used before replacing the cutting blade.
- 24" High Moldboard
- Has a high material capacity for doing a lot of work in a short time.See Specifications for actual capacities.
- Heavy Side Panels
- 3/8" Heavy side panels with angle reinforcement on the diagonal are built heavy to handle tough jobs and to keep the side panels straight under side loads.
Info
Industry
Agriculture
Make
Land Pride
Model
BB4512
Trim
Base
Year
2026
MSRP
N/A
Category
Attachment / Implement
Subcategory
Box Blades/Scrapers
Specs
Width
Working: 12 ft - 0 in (3.66) | Transport: 12 ft - 0 3/4 in (3.68 m)
Weight
Tongue: 467 lbs (212 kg) | of material in weight box: 760 lbs (345 kg) Level full with concrete | Standard axle:1,580 lbs (717 kg) | Tilt axle: 1,700 lbs (771 kg)
Power/Horsepower
70-130 (52-97)
Notes
Weight box: Available for standard axle and tilt axle | Axle types: Standard axle or tilt axle | Hitch types: Clevis hitch, swivel clevis hitch, or swivel ball hitch | Cutting blade reinforcement: 3 x 3 x 3/8 (7.6 x 7.6 x 1) Angle iron welded to the moldboard | Bucket reinforcement: 5 Brace bars Brace bars extend from crossbeam to lower moldboard. | Cutting blades: Reversible/replaceable 1/2 x 6 (1.3 x 6) high carbon heat treated blade | Moldboard construction: Break formed 1/4 x 24 (0.6 x 61) high | Side panel construction: 3/8 x 24 high x 40 deep (1 x 61 high x 102 deep) with heavy angle reinforcement on the diagonal extending from lower front corner to upper back corner and corner gussets extending from cross beam to side panel | Cross beam construction: 4 x 4 in (10 cm x 10 cm ) Square tubing | Tongue construction: 4 x 4 in (10 cm x 10 cm ) Square tubing | Maximum tilt angle: 3 1/2 Degrees | Maximum tilt depth to the right: 8 1/4 in (21 cm) Drop on blade point | Dump clearance: 21 in (53 cm) | Maximum cutting depth: 5 in (13 cm) Below grade | Capacity: 2 3/4 cu yds (2.1 m3) | Depth of bucket: 36 in (91 cm) From front of side panel to cutting edge
Tires
15 in (38 cm) Ribbed implement tires on new wheels
Cylinders
Tilt: 3 bore x 8 stroke (7.6 bore x 20 stroke) | Lift: 3 bore x 8 stroke (7.6 bore x 20 stroke)
