2026 Land Pride STB0560
Get in Touch
Description

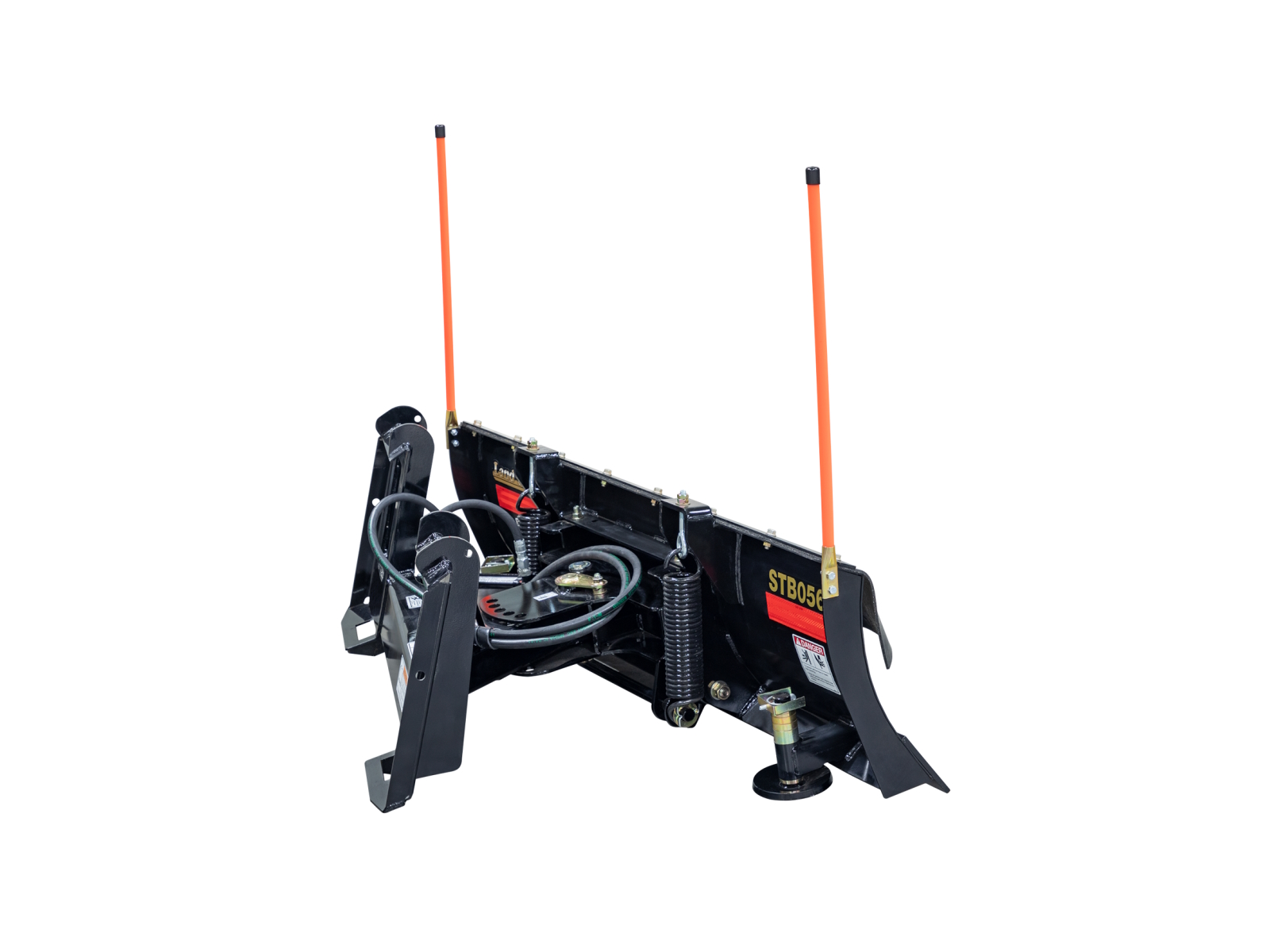

2026 Land Pride STB0560
Land Pride’s STB05 Series Snow Trip Blades are intended for use on Kubota BX and B01 Tractors or other sub-compact tractors with universal quick attach hitch. The STB05 has a lower profile moldboard for smaller tractors and is lighter than our STB10 Series making it more appealing for sub-compact tractor owners.
Features May Include:
- AR400 Material
- Abrasion resistant AR400 skid shoes.
- Moldboard
- Reinforced moldboard provides added strength and durability.
- Trip Design with Springs
- Protects the structural integrity of the blade while still maintaining load control no matter what the bottom edge encounters.
Info
Industry
Agriculture
Make
Land Pride
Model
STB0560
Trim
Base
Year
2026
MSRP
N/A
Category
Tractor
Subcategory
Implement / Attachment
Specs
Cutting Width
55 in(140 cm)
Power/Horsepower
17 to 30 hp (12.7 to 22.4 kW)
Notes
Base Unit: with steel cutting edge = 288 lbs (131 kg), with poly cutting edge = 267 lbs (121 kg) | Trip Release Pressure: 250-400 lbs (110-180 kg) | Cutting Edge (Steel & Poly) Reversible: 3/8 in x 6 in Steel Reversible: 1/2 in x 6 in Poly | Maximum Hydraulic Pressure: 3000 psi (21 mPa) | Angle Cylinder Size: 2 in bore x 4 in stroke | Maximum Blade Angle: 24o left & 24o right | Moldboard Thickness: 12 Ga. (2.6 mm)
Width
Blade: 60 in(150 cm)
Height
Moldboard: 17 in (43 cm)
