2026 MacDon R1 Series Pull-Type Disc Mower 13 in

2026 MacDon R1 Series Pull-Type Disc Mower 13 in

Quick in the Field, Quick on the Road.
Don’t limit your harvesting possibilities, in just 30 seconds, our Road Friendly TransportTM option transforms both our 4 m (13’) and 4.9 m (16’) R1 Pull-Types to a narrow 2.75 m (9’) wide transport. Featuring forward-mounted cutterbar design and the industry’s widest rolls at 328 cm (129”), the R1 delivers well-formed , well-conditioned windrows.

Features May Include:

• 2.75 m (9’) Wide Road Friendly Transport (Optional)
  Our Road-Friendly TransportTM option is available on both models and transforms the R1 into a road-friendly 2.75 m (9’) wide transport. Switch from field to transport in 30 seconds, for quick and safe travel to, from, and between fields. Moving from a 3 m (10’) to a 4.9 m (16’) mower can increase productivity by 60%, making this option ideal for operations in which transport width restrictions are a limiting factor.

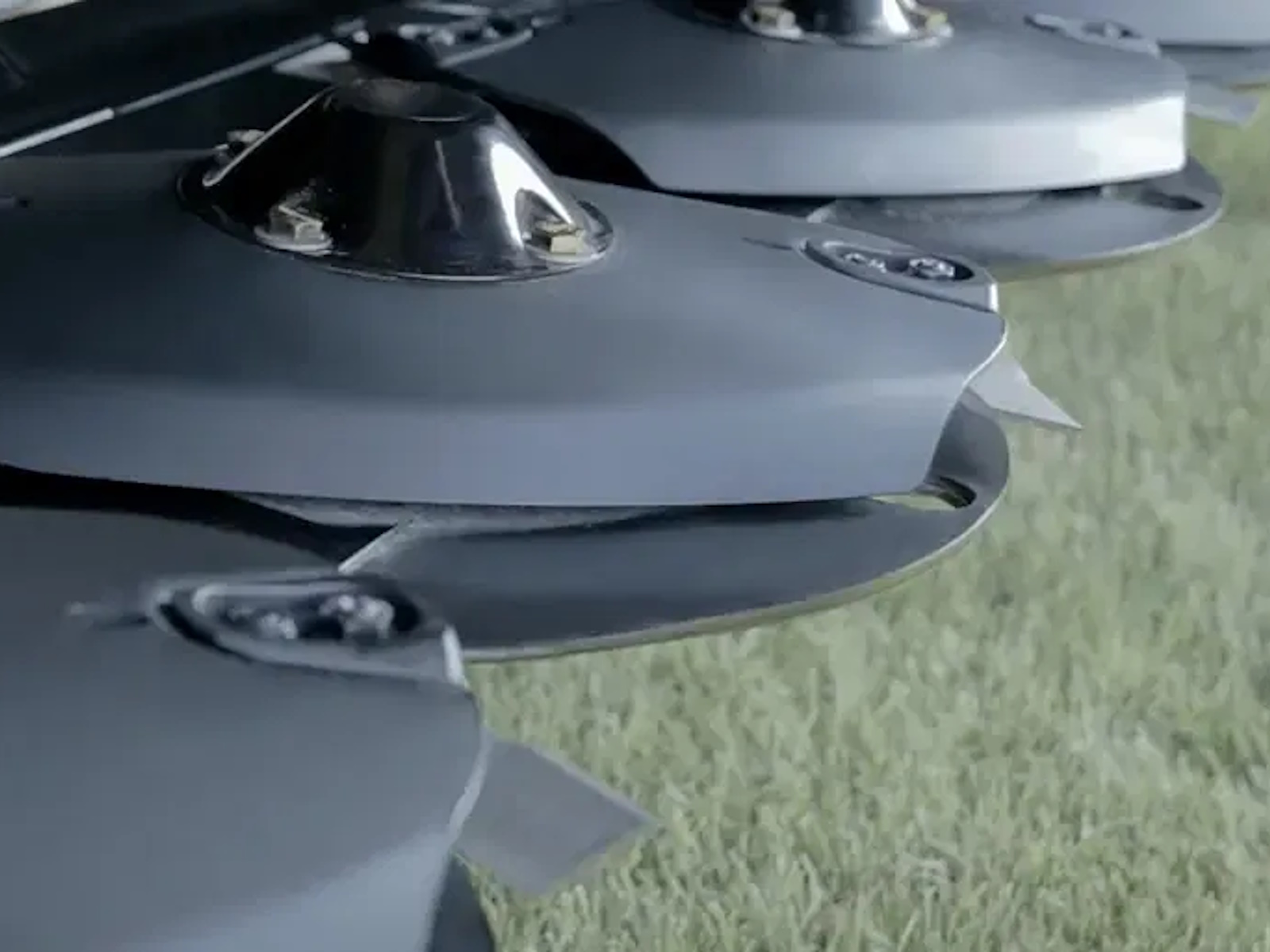

• Clean Cut
  Our low-profile, forward-mounted cutting discs provide a flat header angle, resulting in a cleaner, smoother cut.
  Our new cutterbar design is backed by MacDon’s 3-Year cutterbar warranty. That’s just our way of ensuring worry-free harvesting performance.

• Serious Conditioning
  Featuring the industry’s widest conditioning roll at 328 cm (129"), and 4 interchangeable conditioning options. Choose from Steel Inter-Meshing, Polyurethane Inter-Meshing, Finger Conditioner, or No Conditioner option. The R1 lays down well-formed, well-conditioned wide to narrow windrows to suit a variety of conditioning needs.

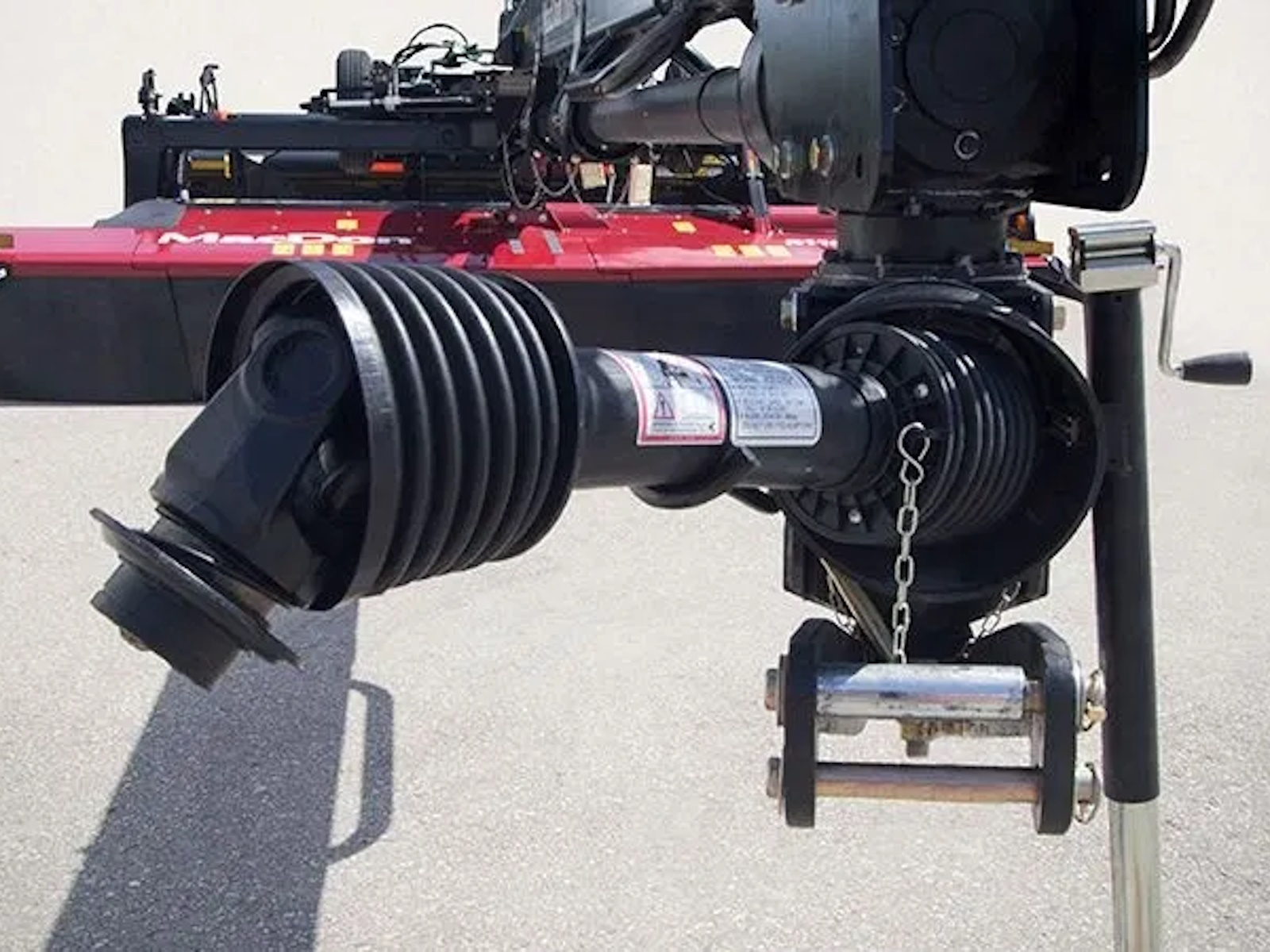

• Low Horse Power Requirements (PTO Completion Package)
  Requires only 100hp for 13’ and 125hp for 16’ model. 1000 PTO 1.375” (35mm) / 21 spline or 1.75” (45mm) / 20 spline. Less horse power means less fuel consumption.

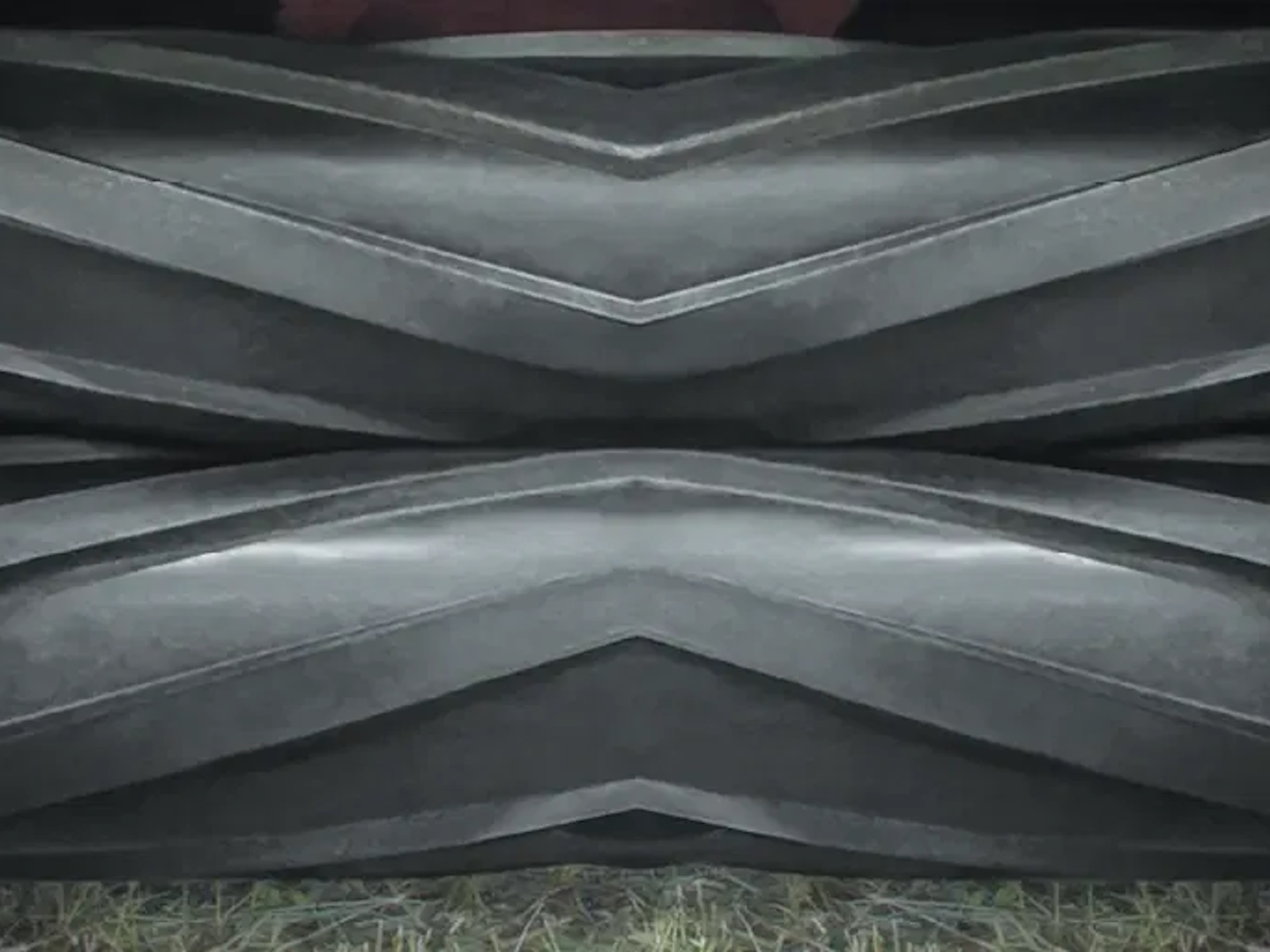

• Conditioner Action
  Delivers a combination crimp/crush action while being more gentle to plant leaves

• Application
  A combination of the wide rolls (129”) which promotes a thin material mat and the roll profile (crush type) is ideally suited to such crops as alfalfa, alfalfa/grass mix
  Also effective for finer stemmed plants which usually have more solid stems like native hay, timothy and bermuda grass

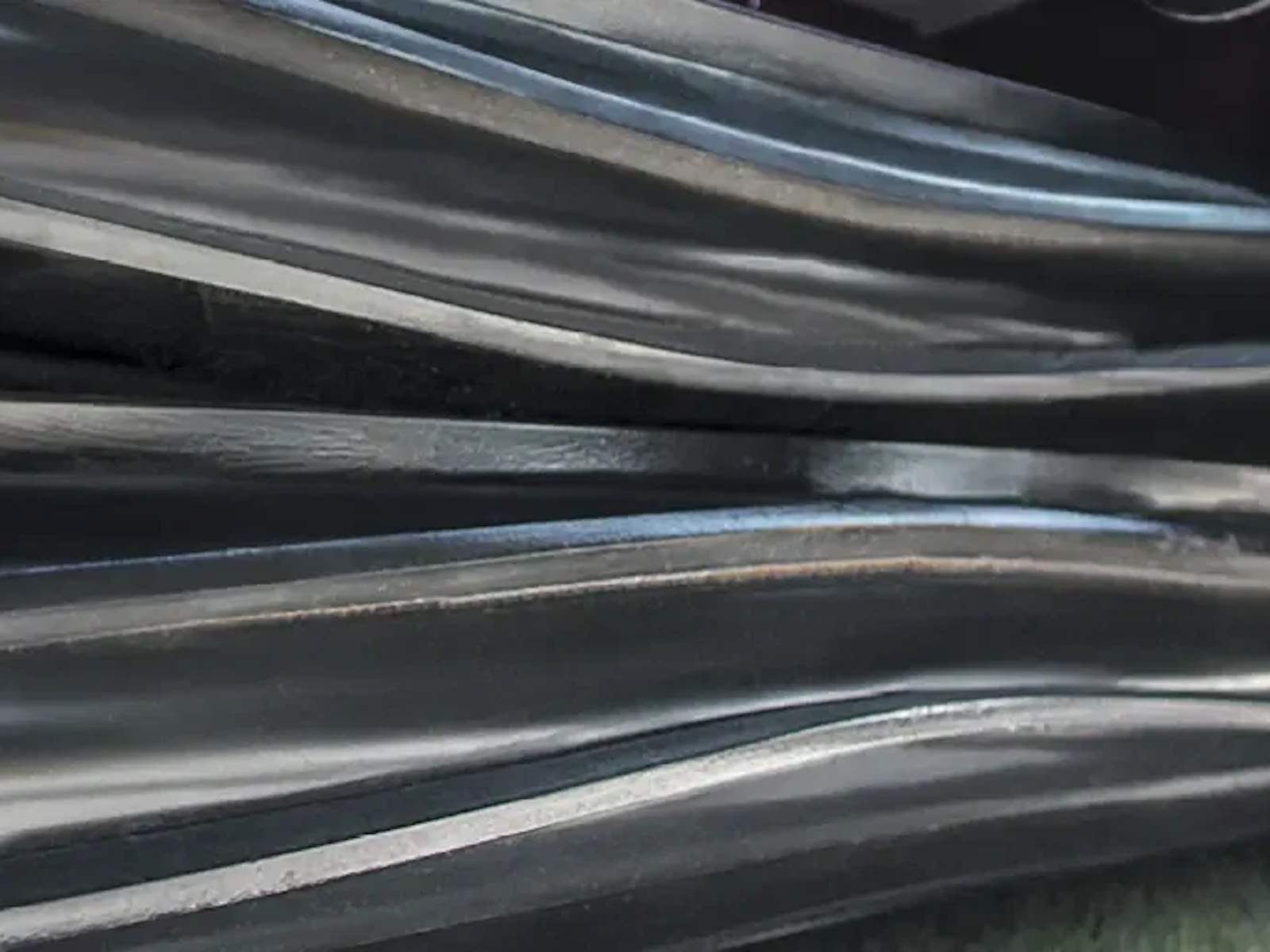

• Conditioner Action
  A crimp style is especially effective for stiff or solid plant stem material
  Produces well-formed windrows over a wide range of widths

• Application
  For high volume crops where aggressive feeding through header is an advantage, such as milo, sudan grass, and oats
  In smooth stemmed crops like timothy, the steel bars provide positive crop flow from cutterbar to the windrow
  For alfalfa producers, the steel inter-meshing roll action assists plant dry down by creating uniform crimps on the plant stem, without bruising the delicate leaves
  Able to provide consistent conditioning through uneven crop volumes
  In areas where crops and or conditions are considered to be abrasive
  Extremely durable requires minimal maintenance

• DWA - More Efficiency, Fewer Passes
  The MacDon Double Windrower Attachment (DWA) enhances the MacDon R1 Pull-Type rotary disc mower, giving operators more control over windrow placement and reducing post-cutting passes.

• Features:
  Reduces the need for raking and merging
  Merges every second pass when used alone
  Pair with the MacDon R1 FR for single-pass double windrows
  In-cab hydraulic control for seamless operation
  Compatible with any MacDon R1 PT
