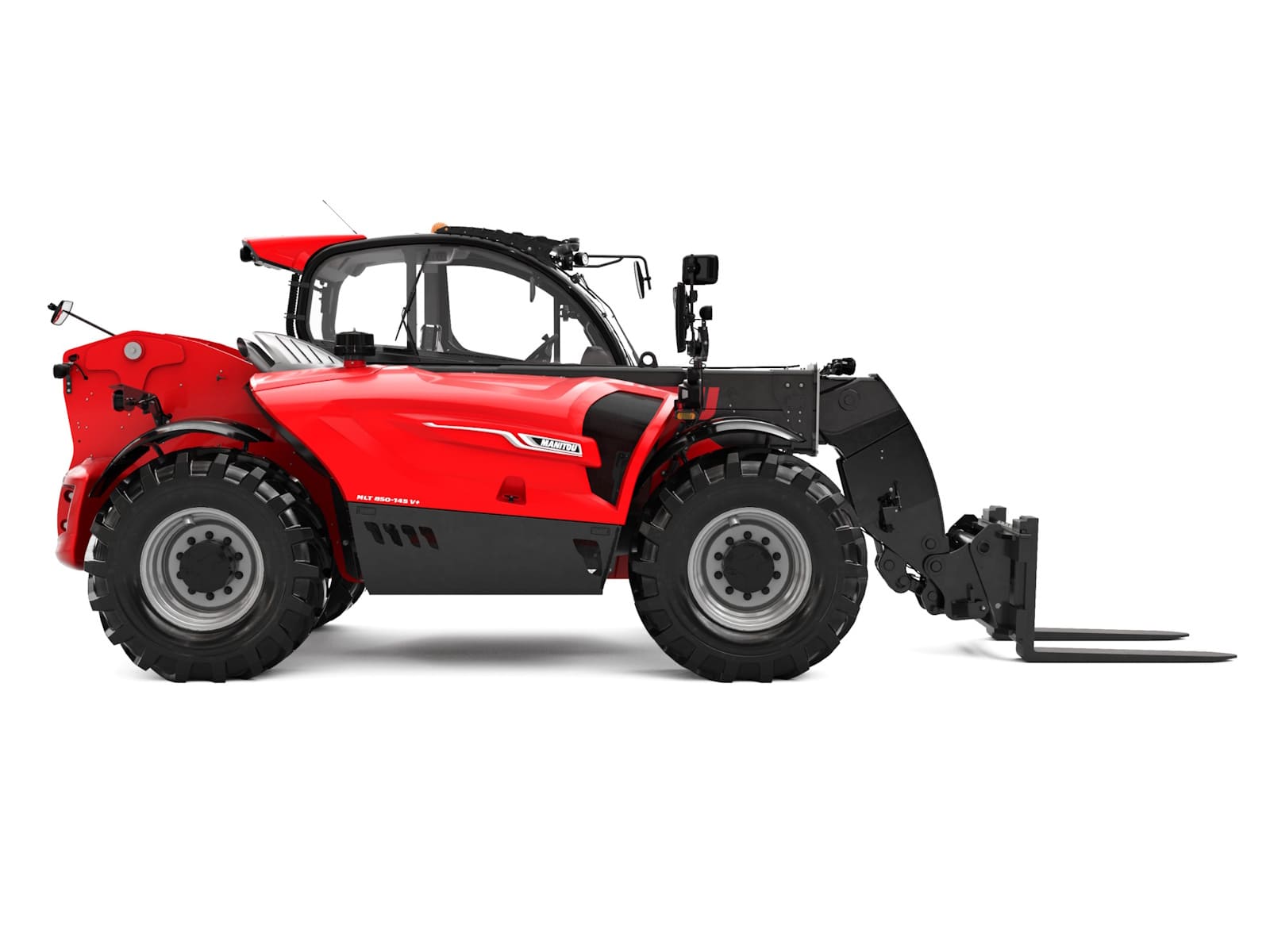

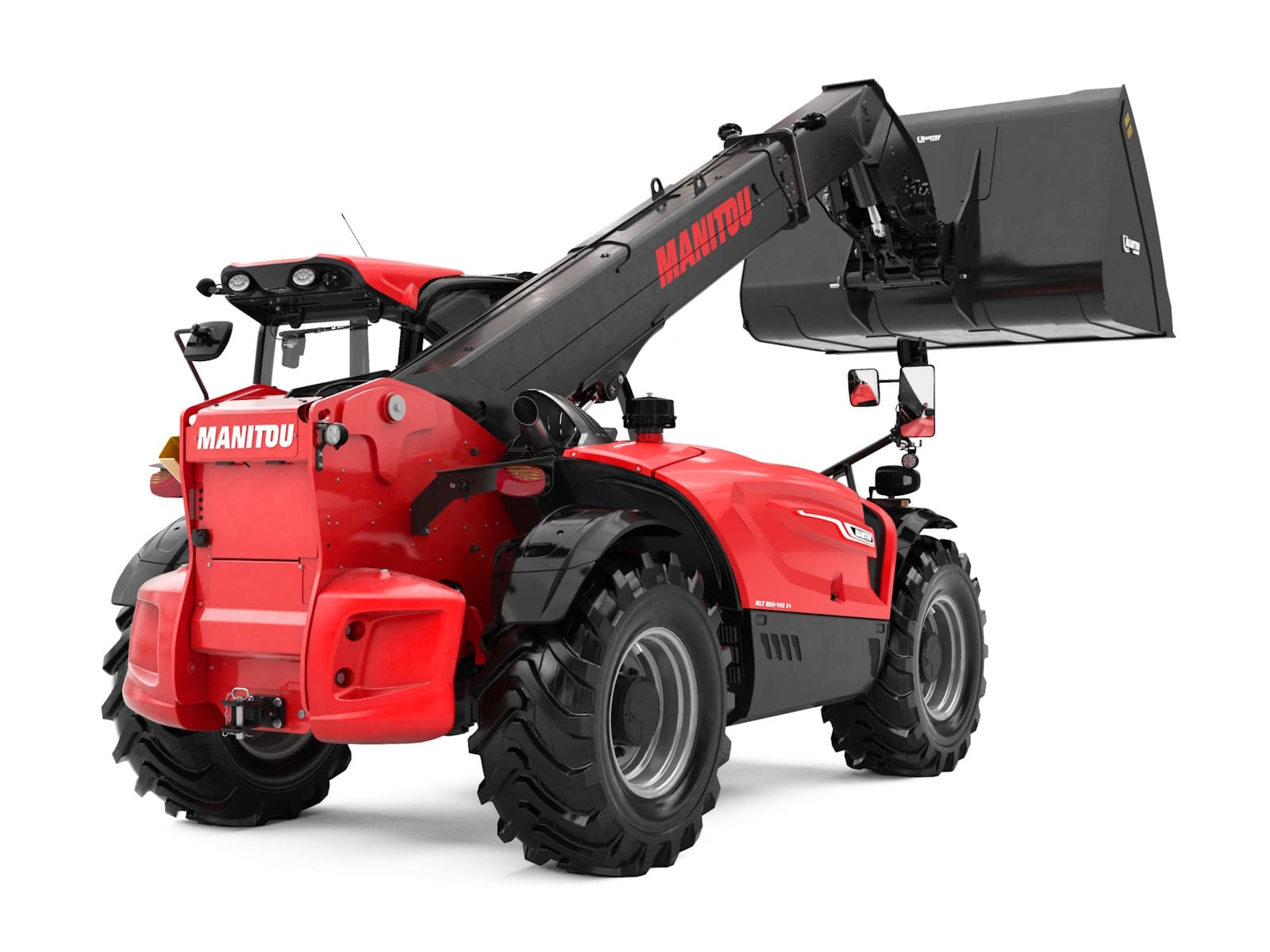

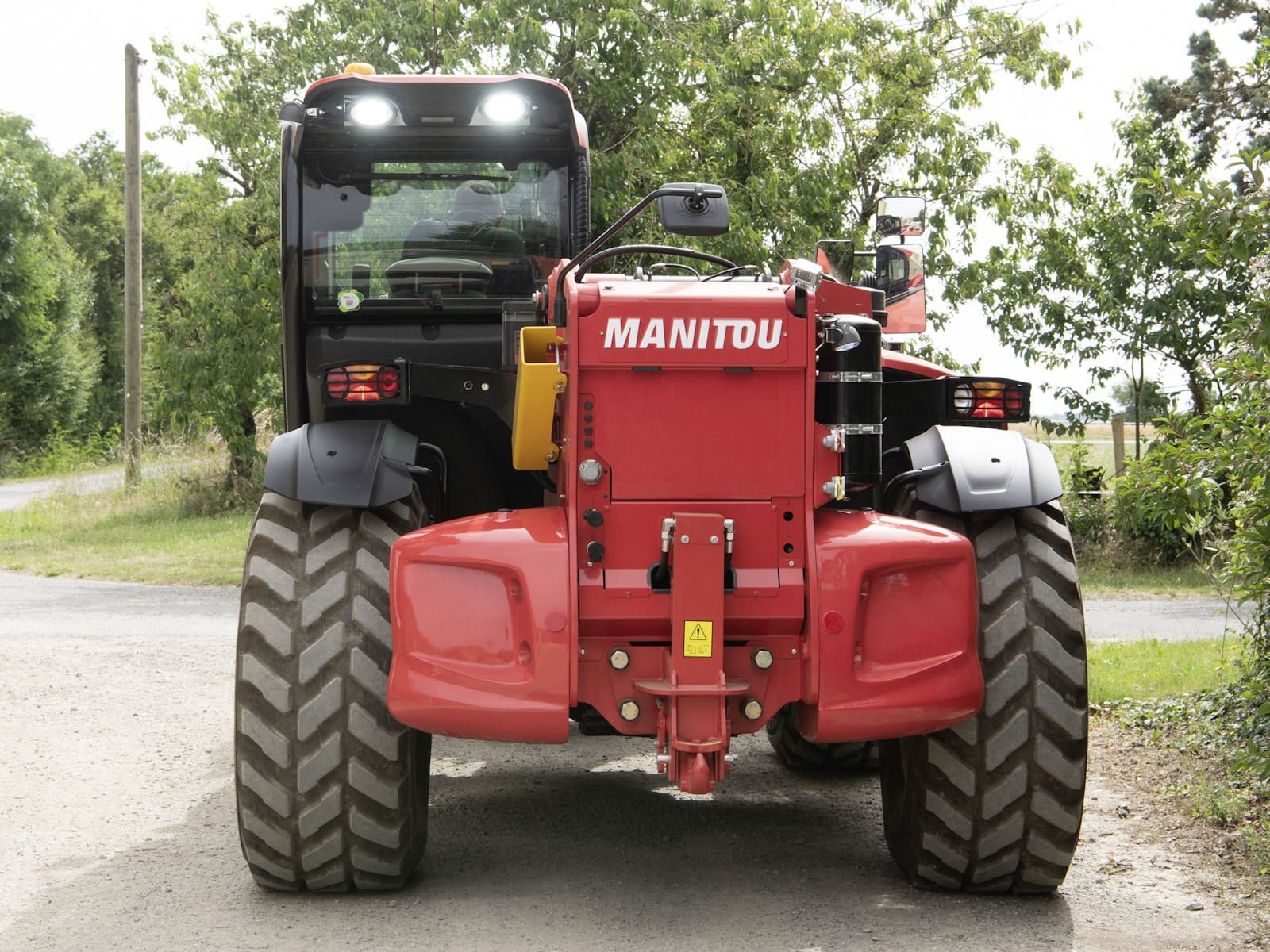

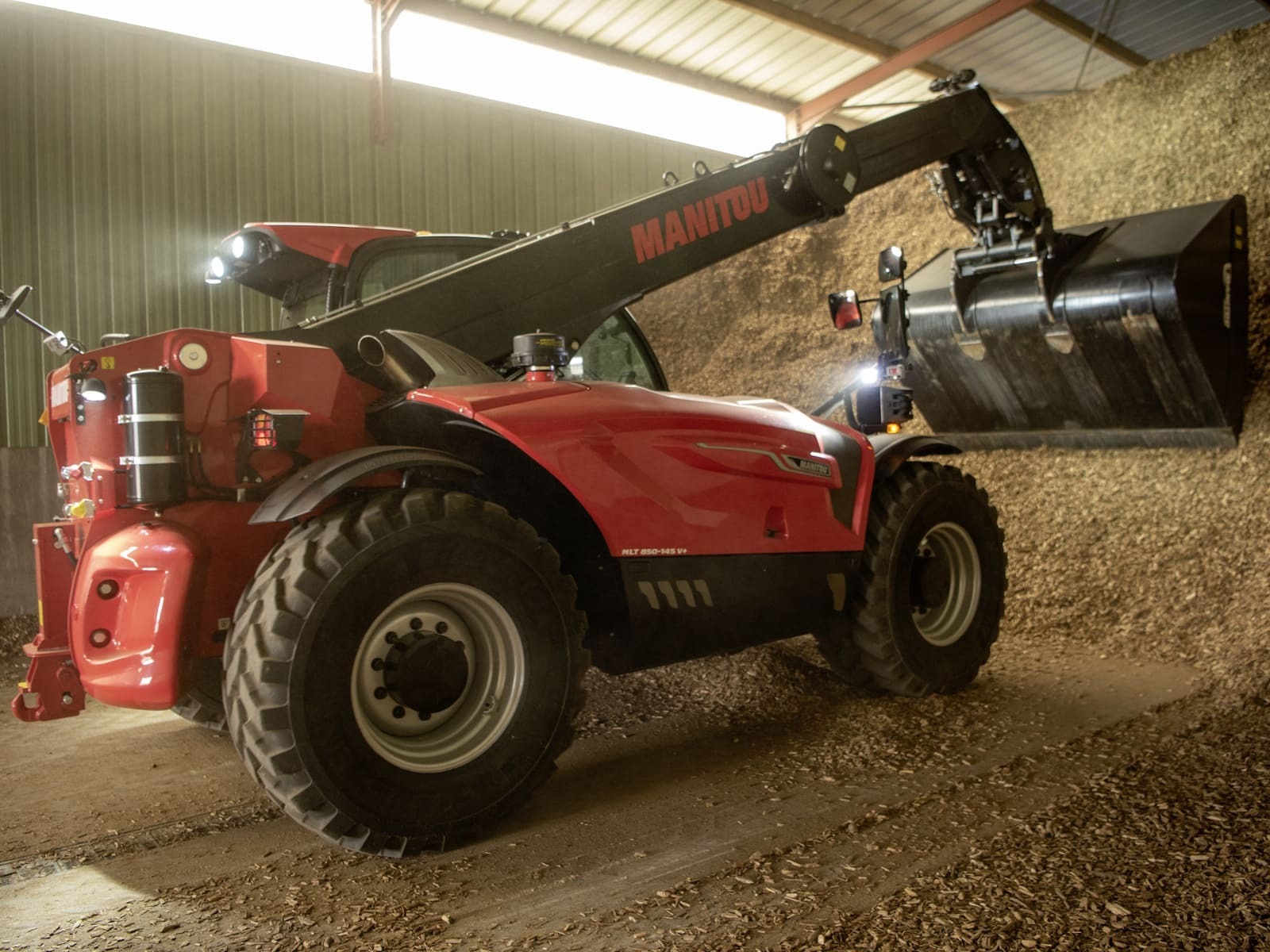

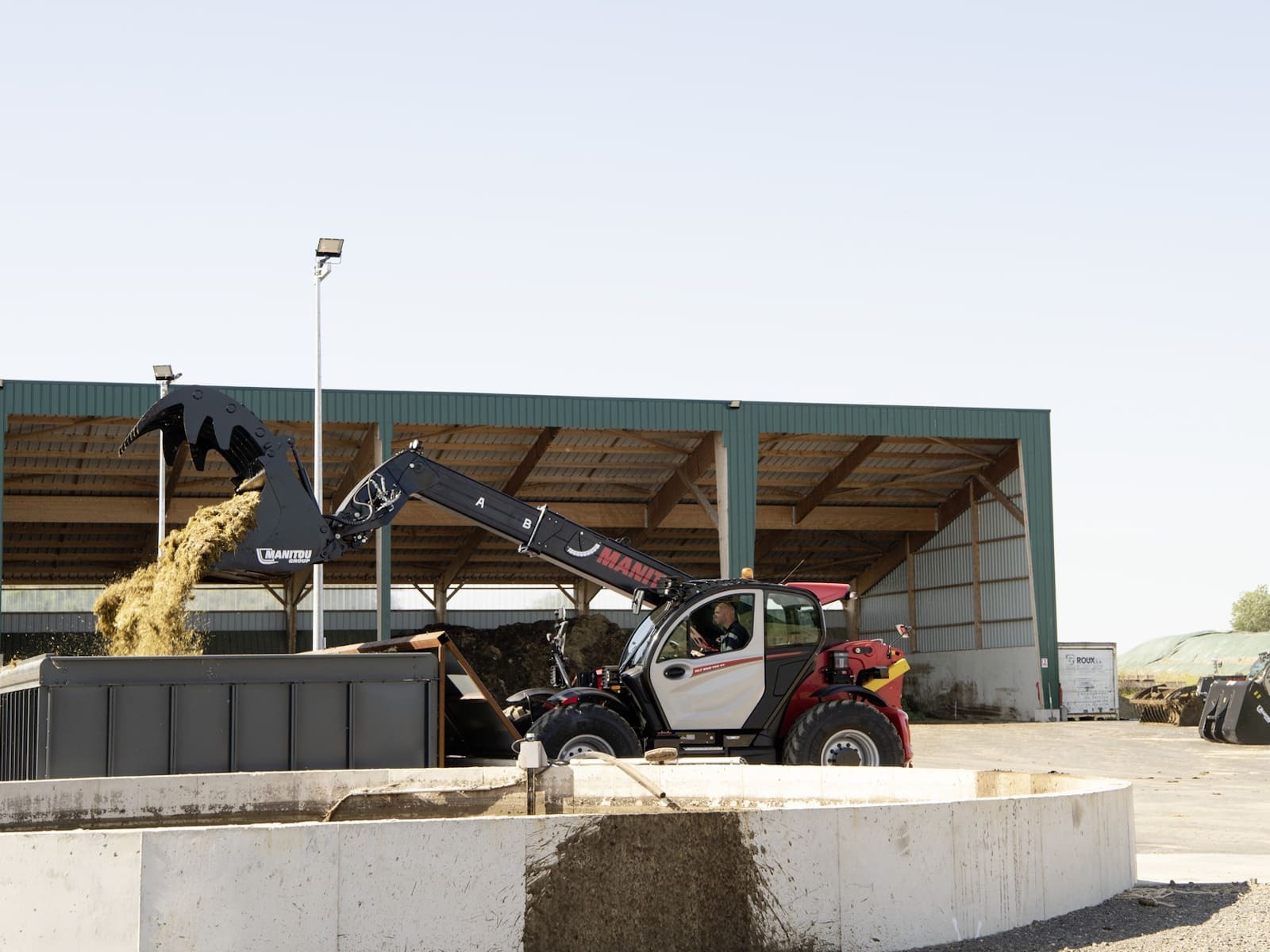

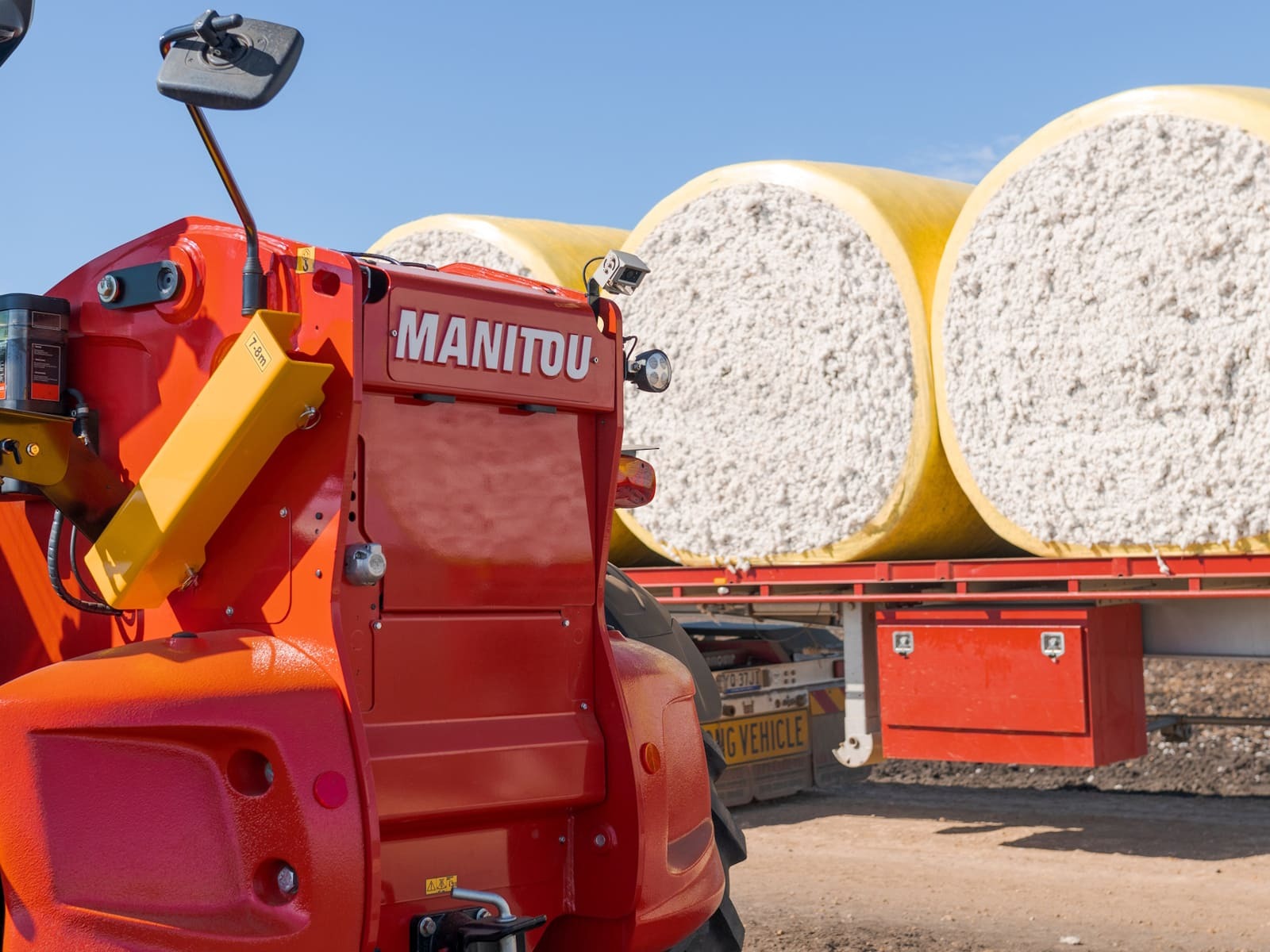

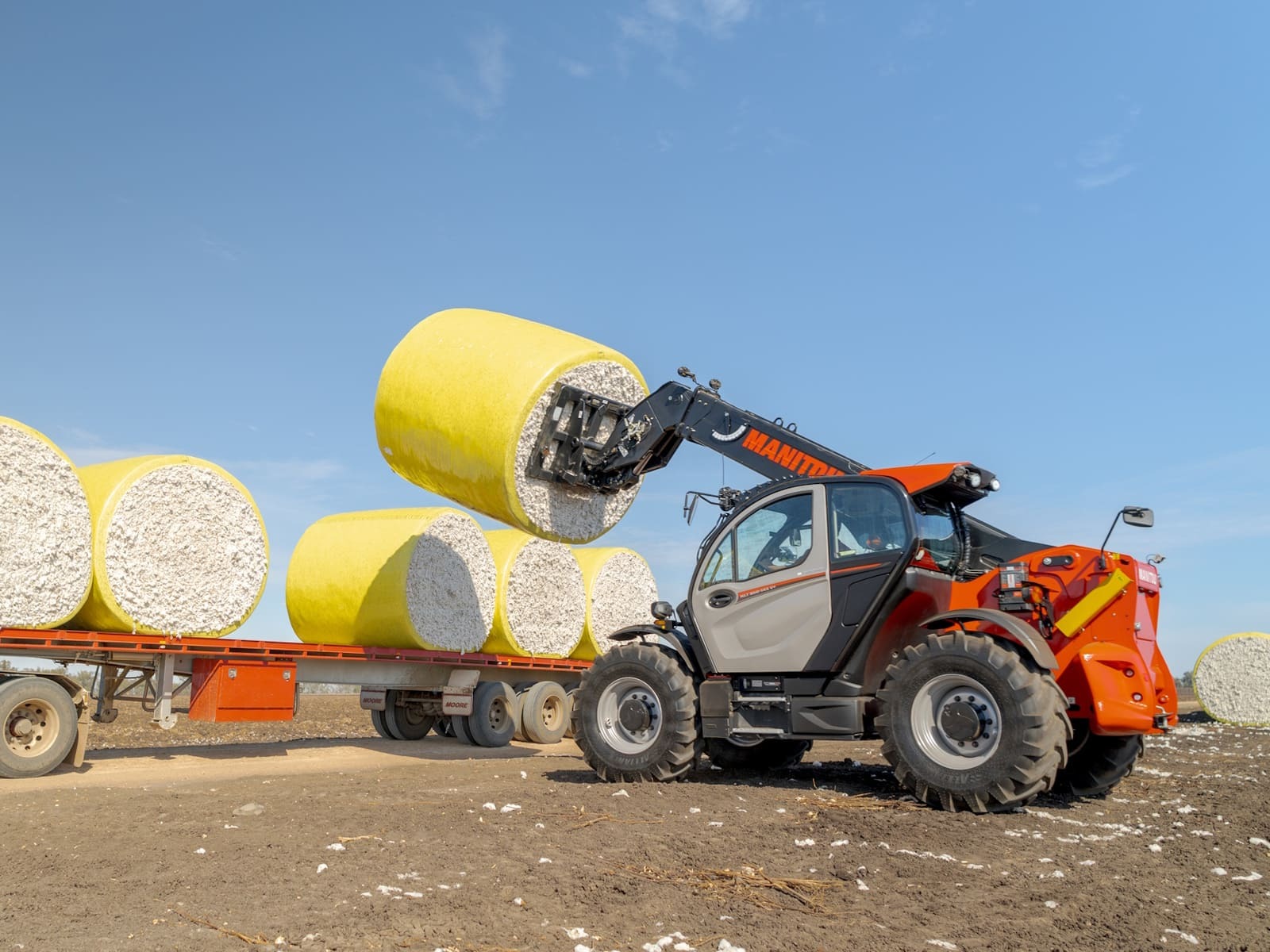

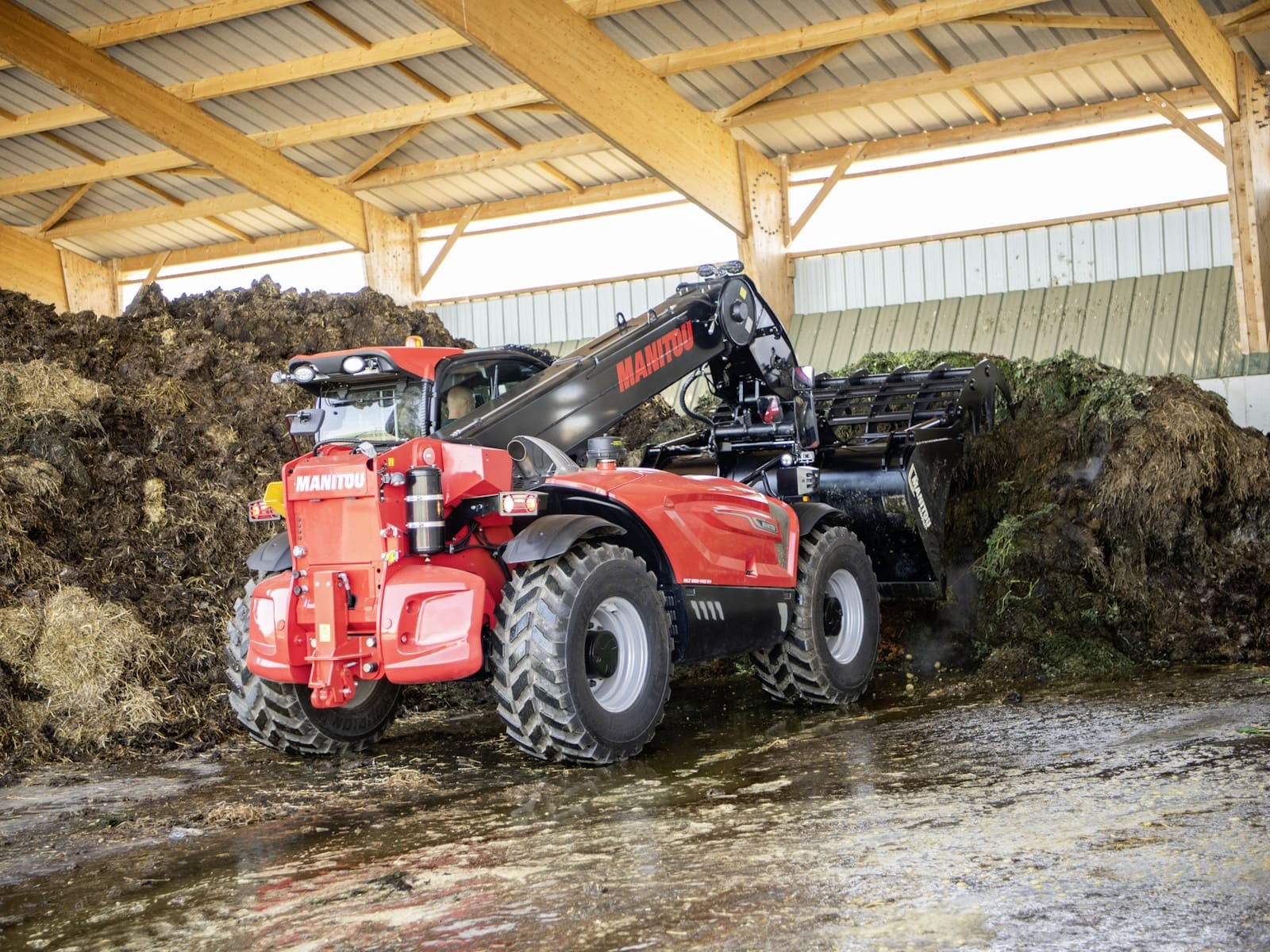

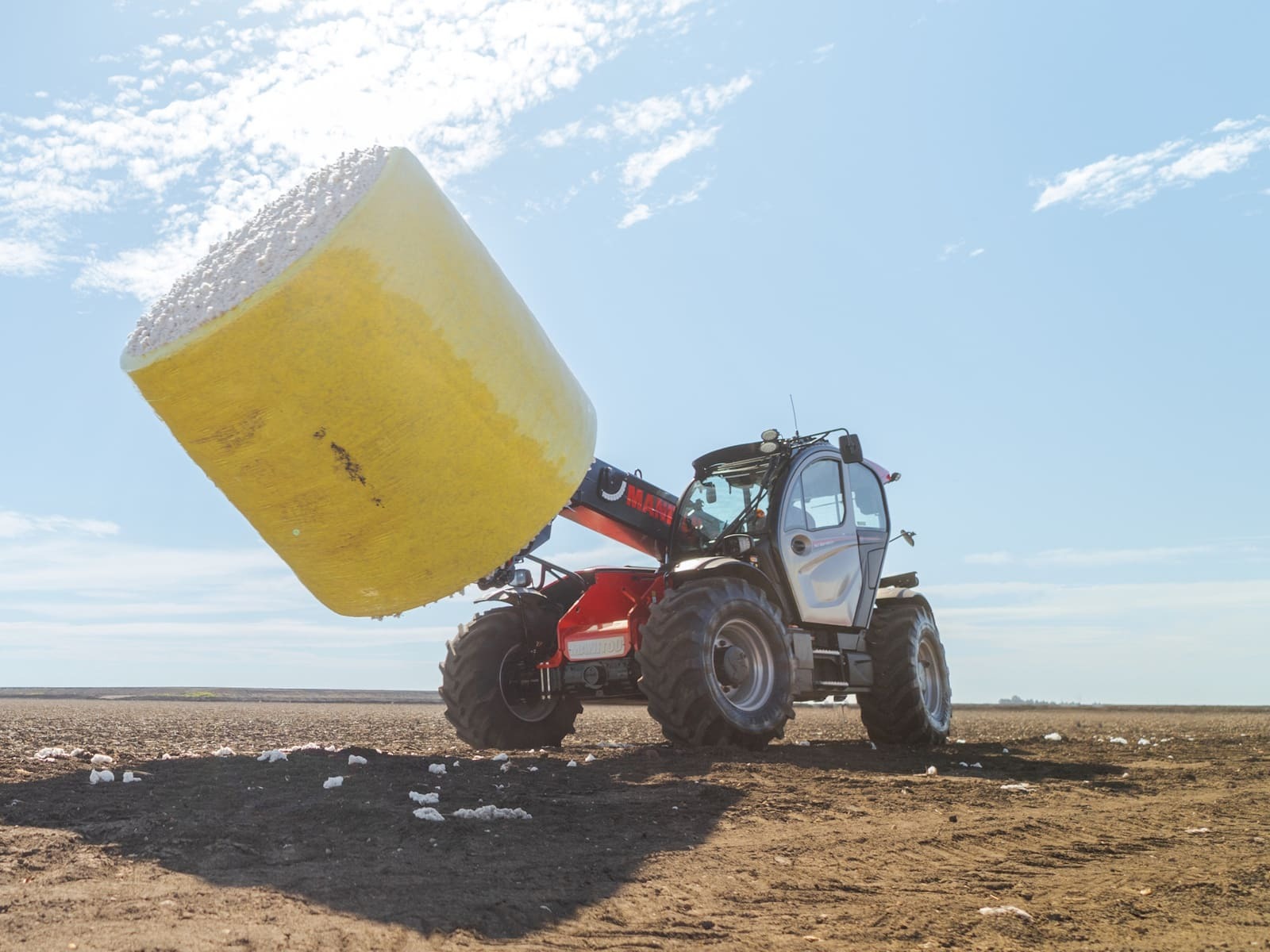

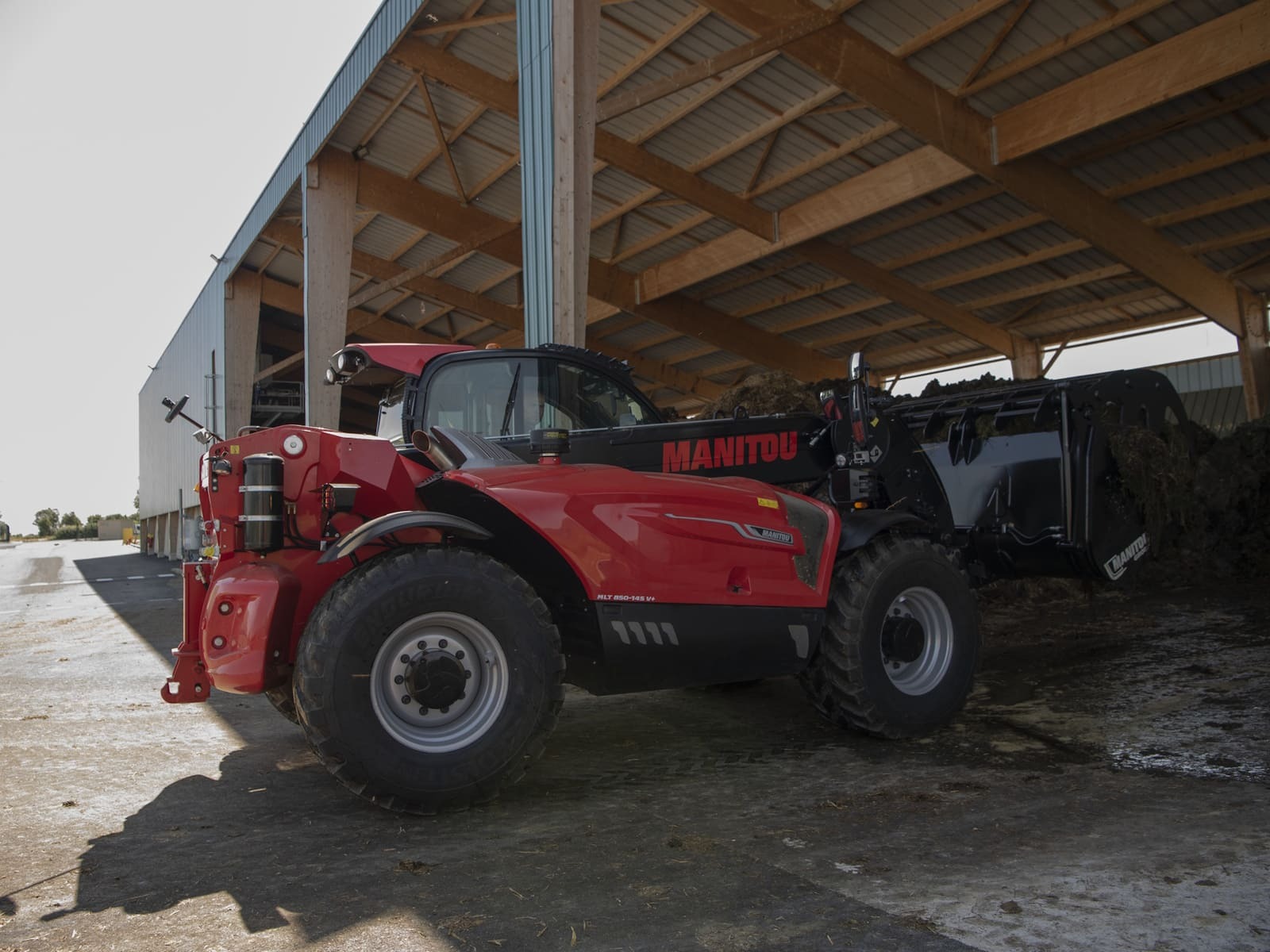

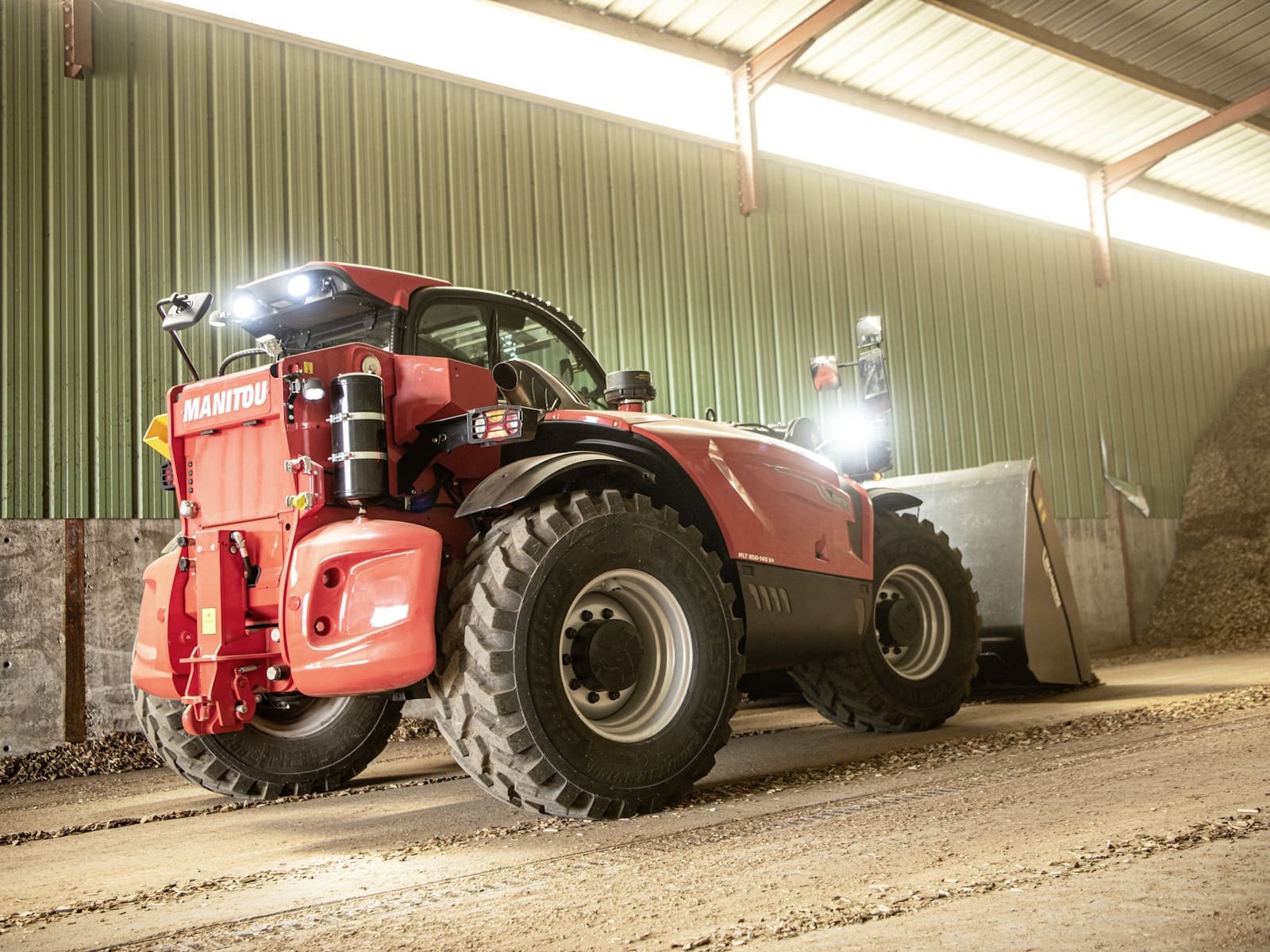

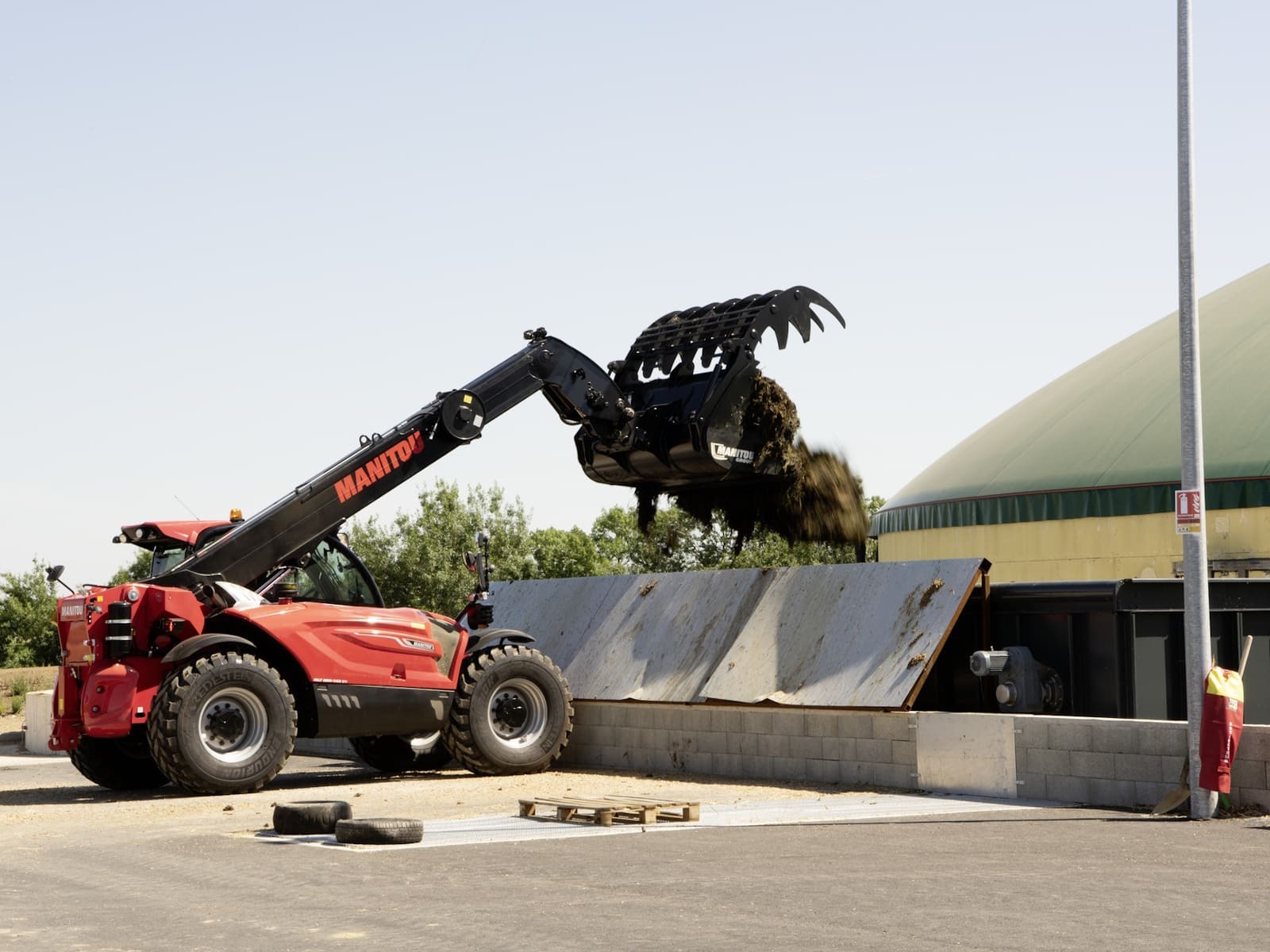

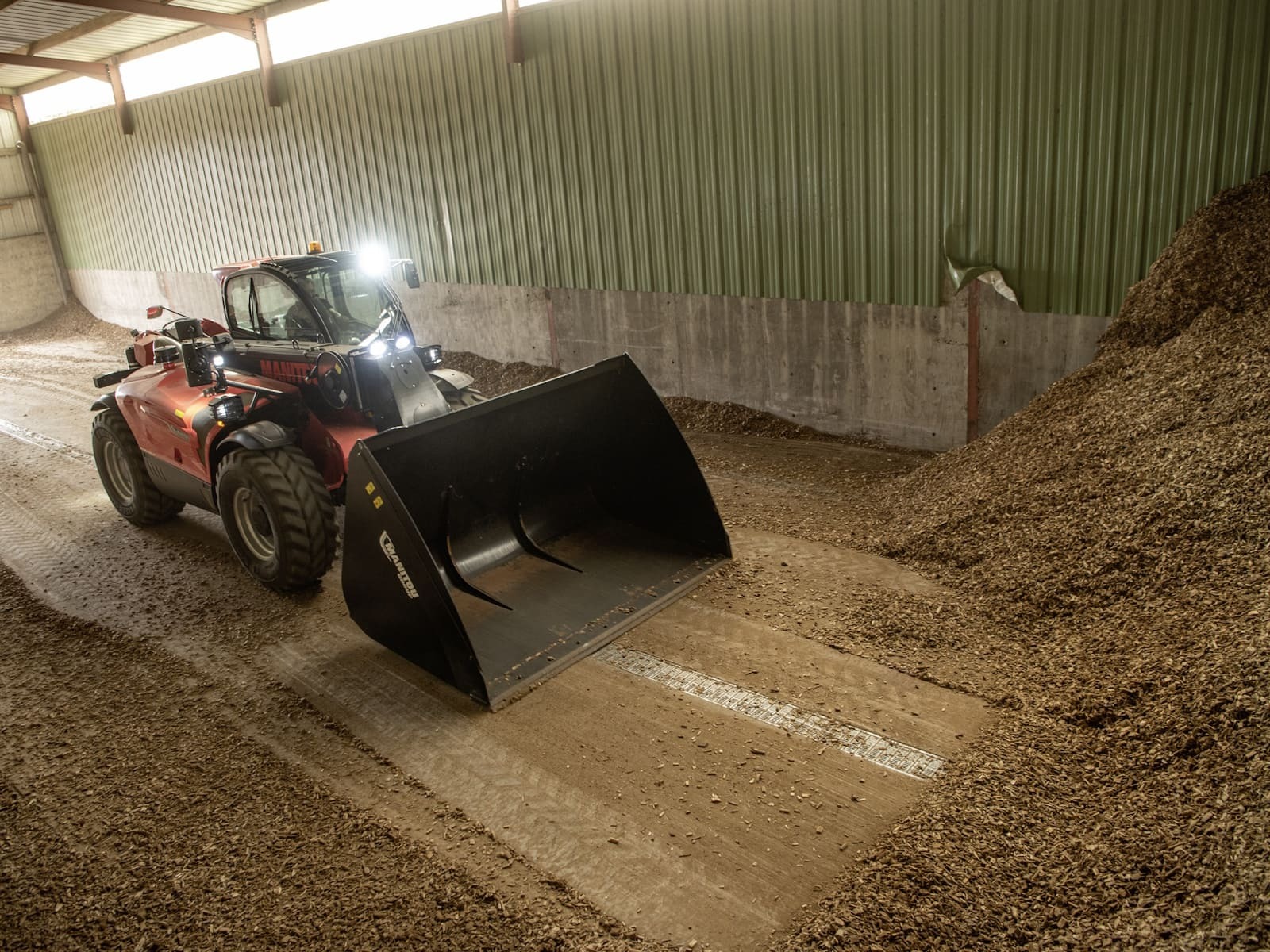

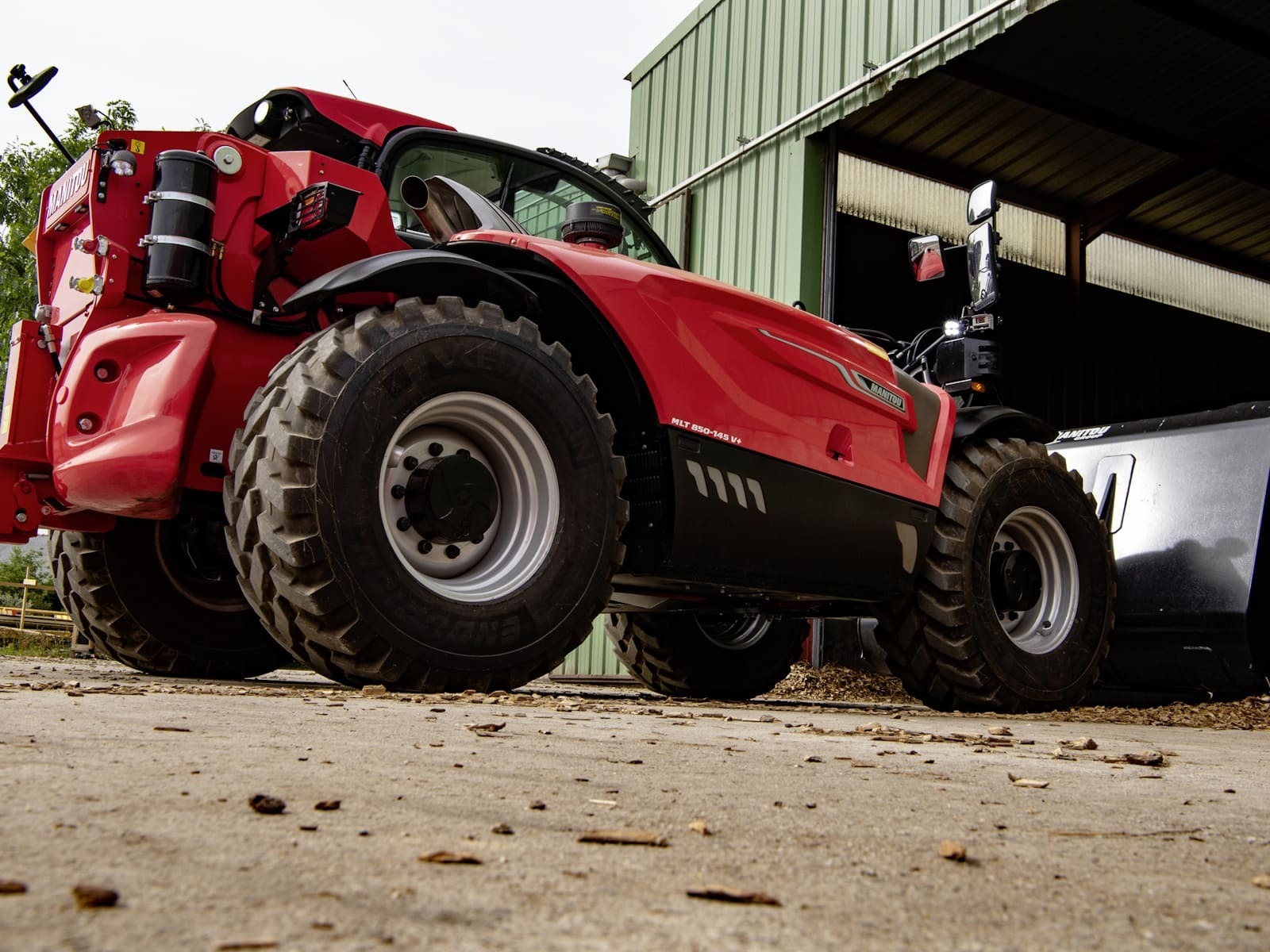

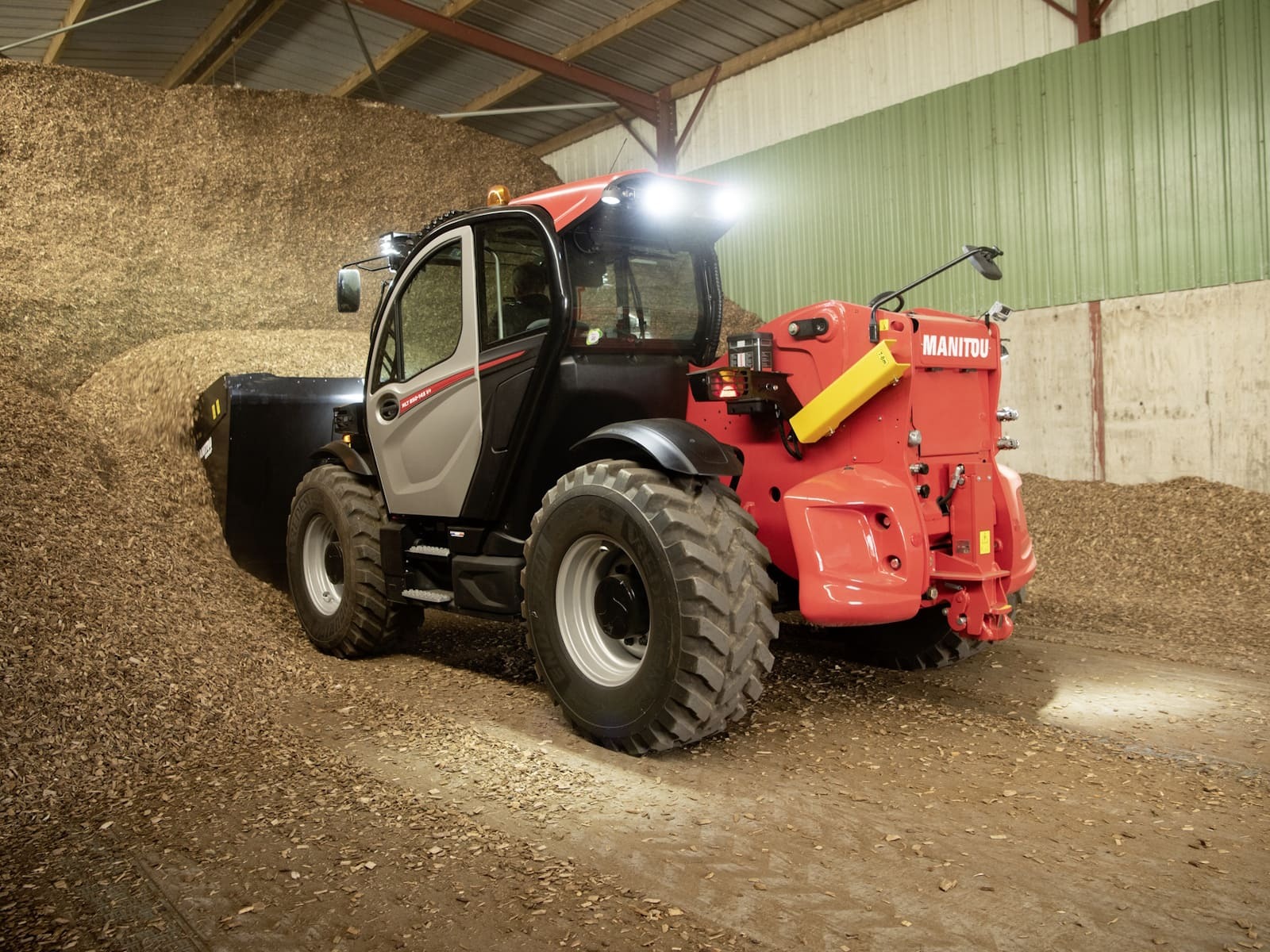

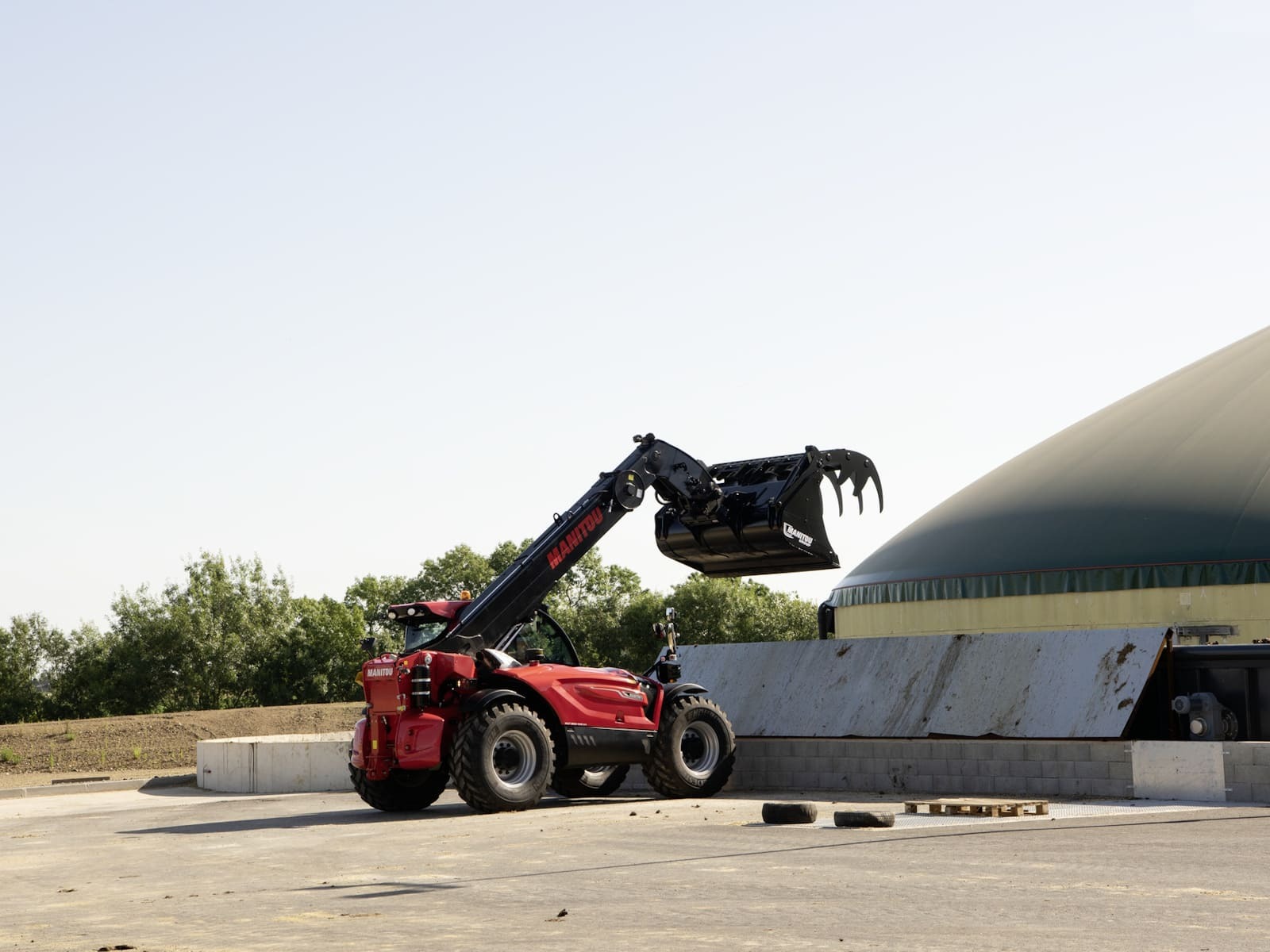

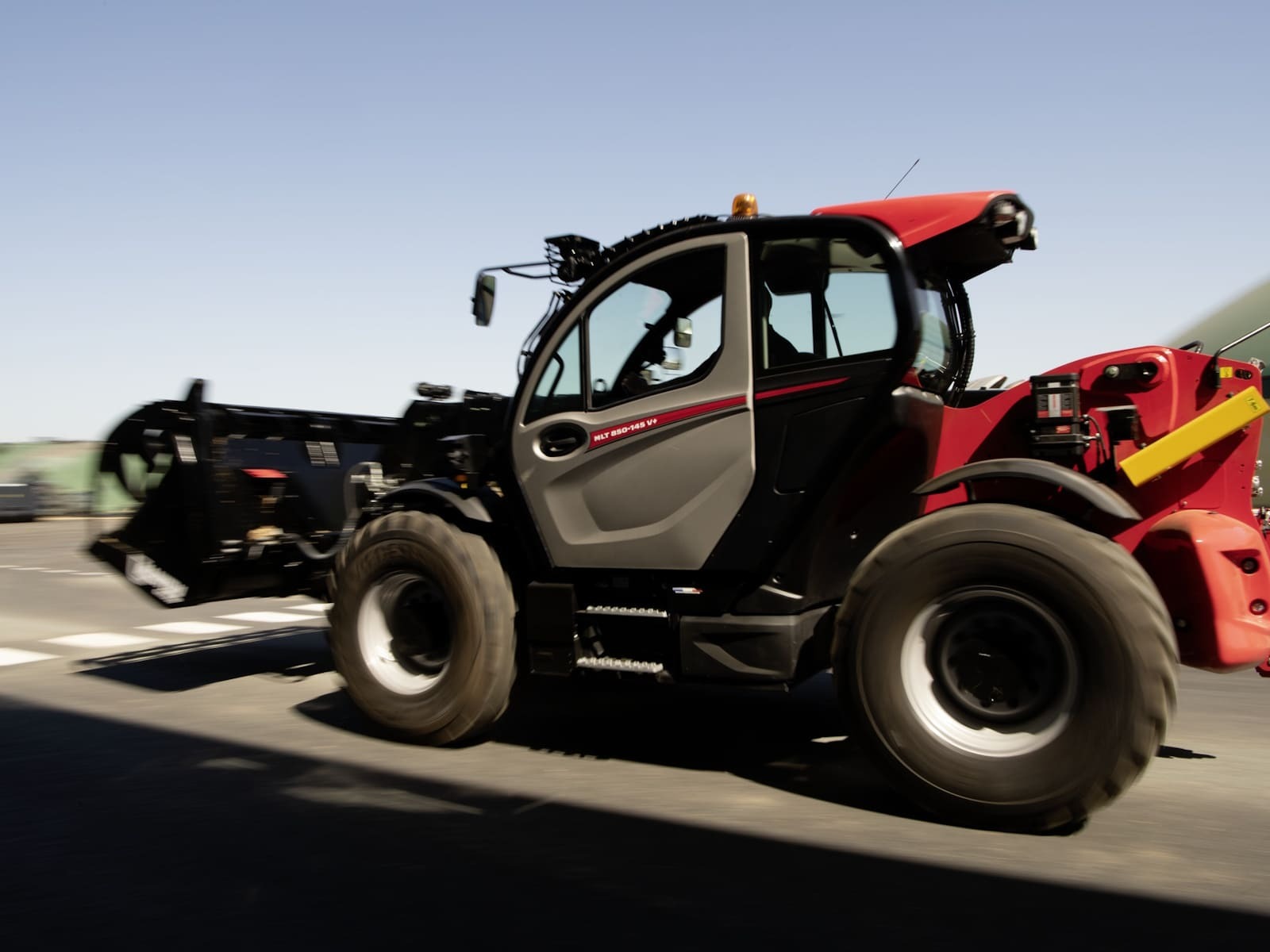

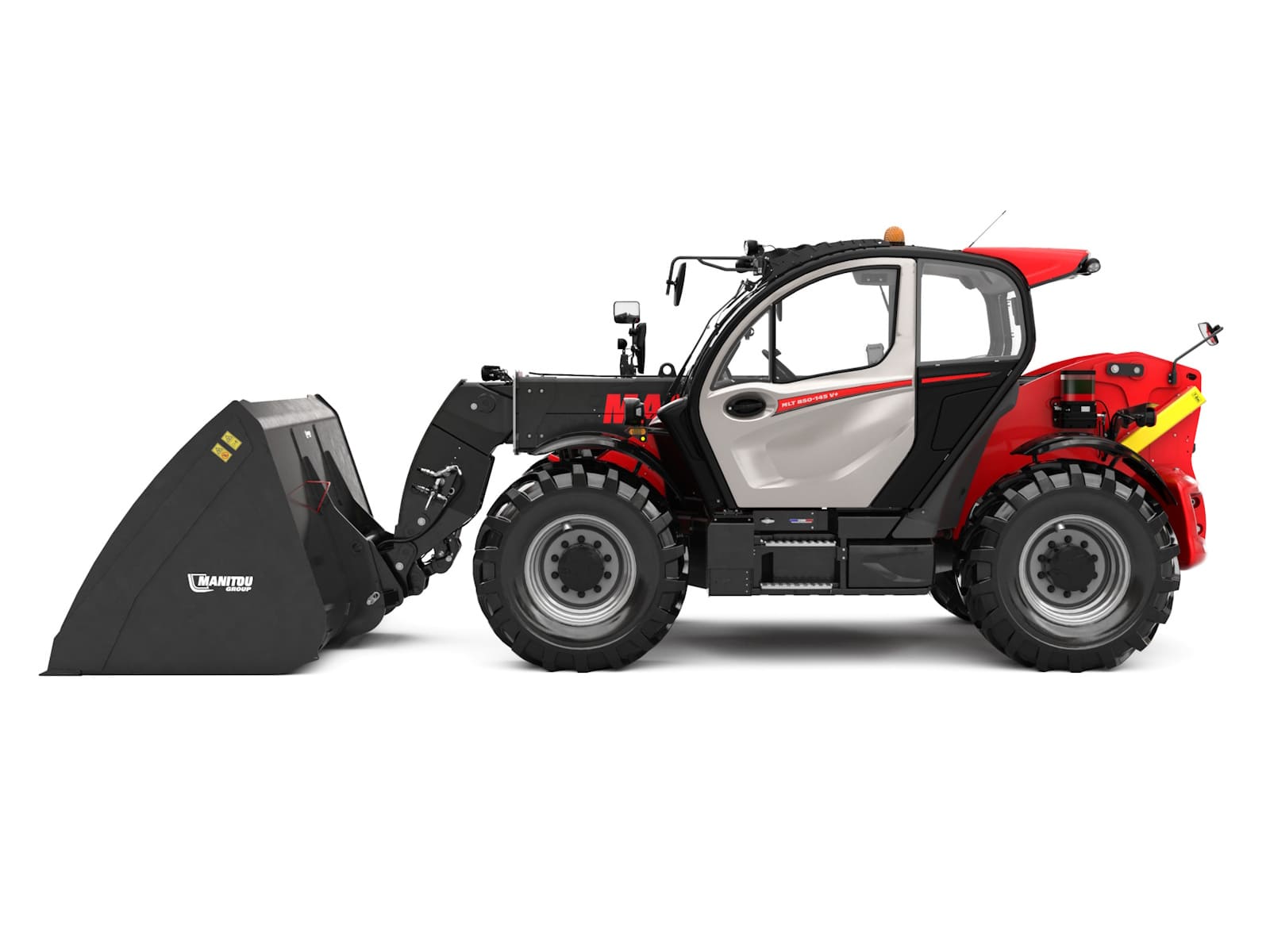

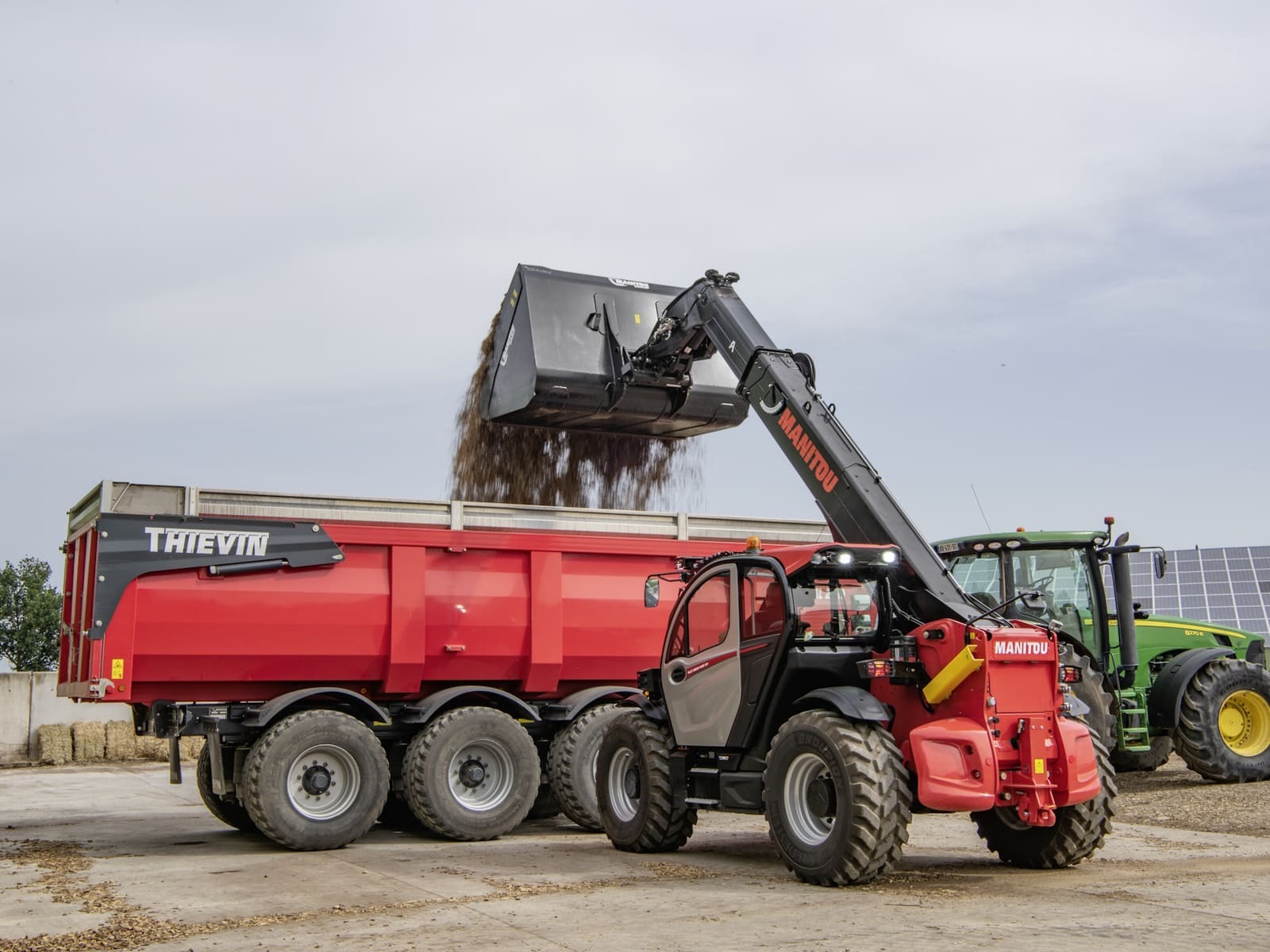

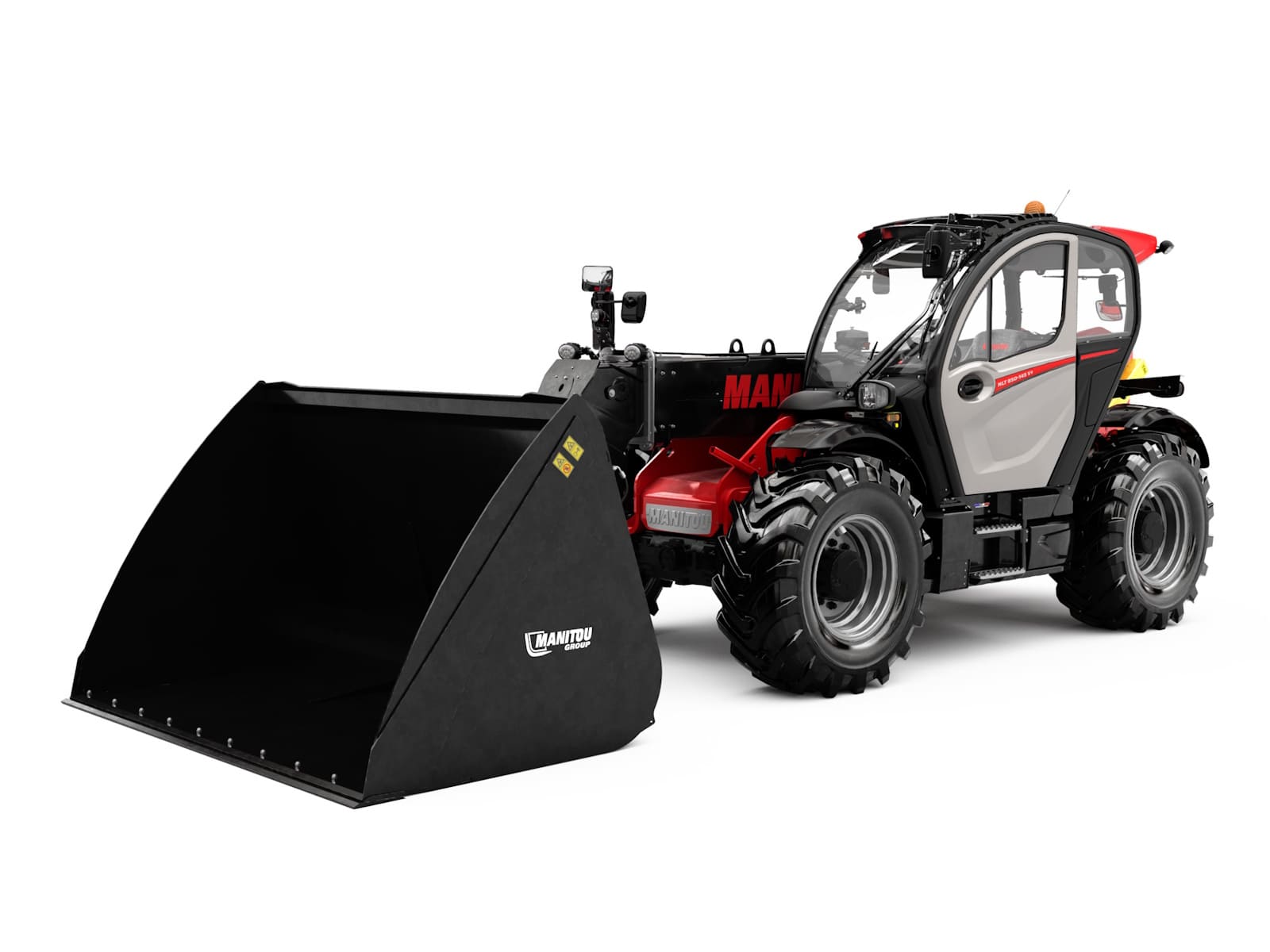

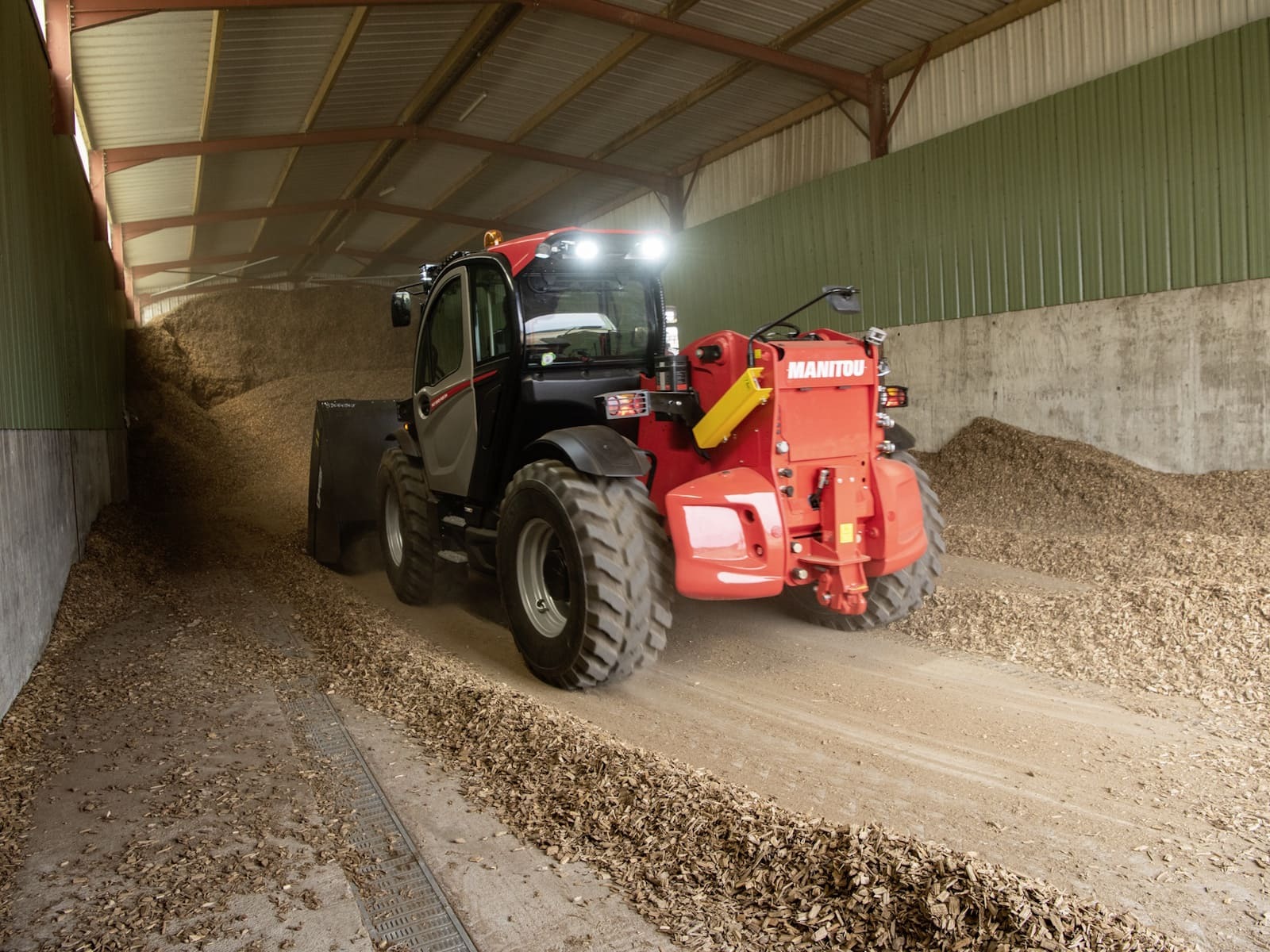

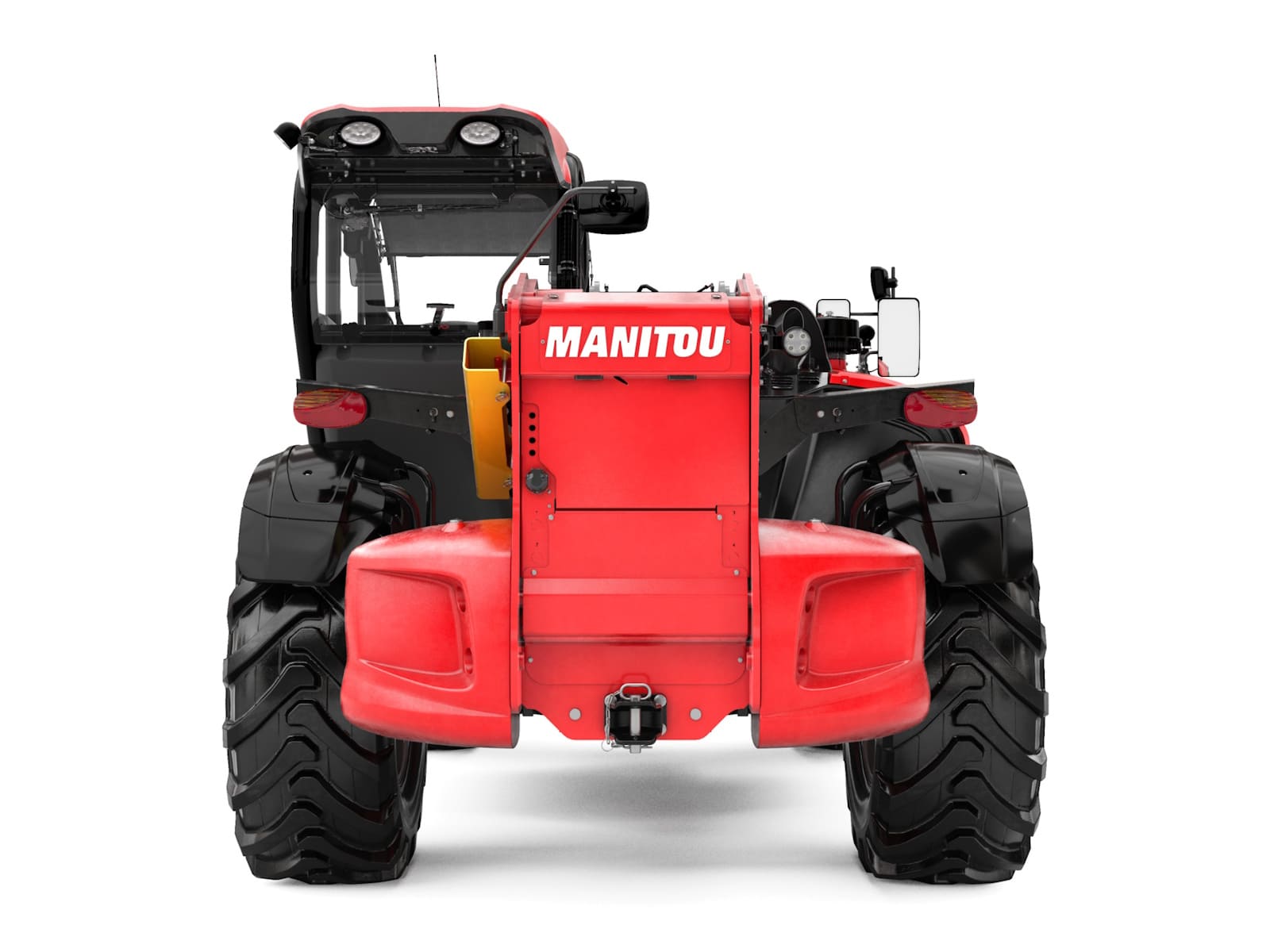

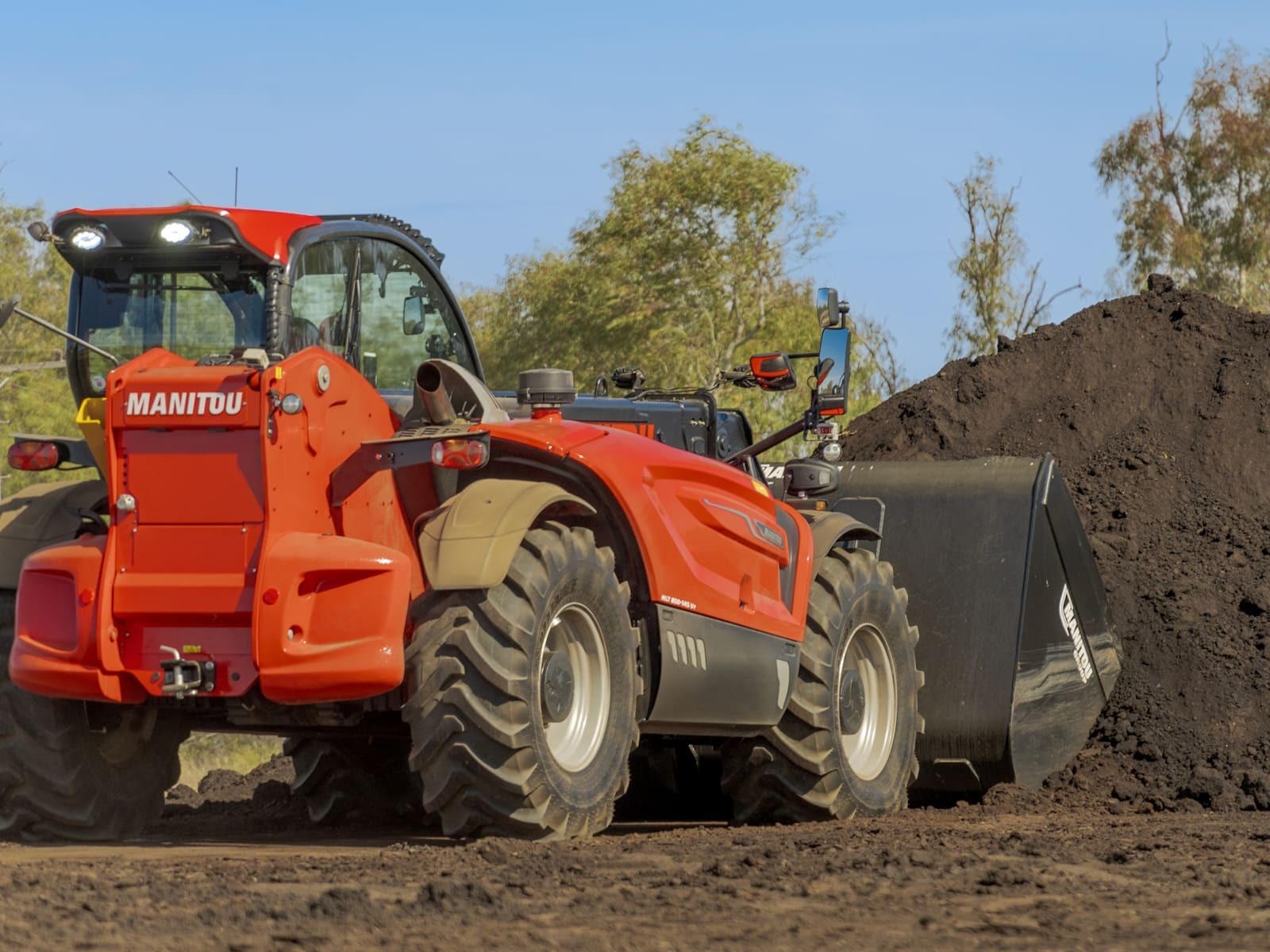

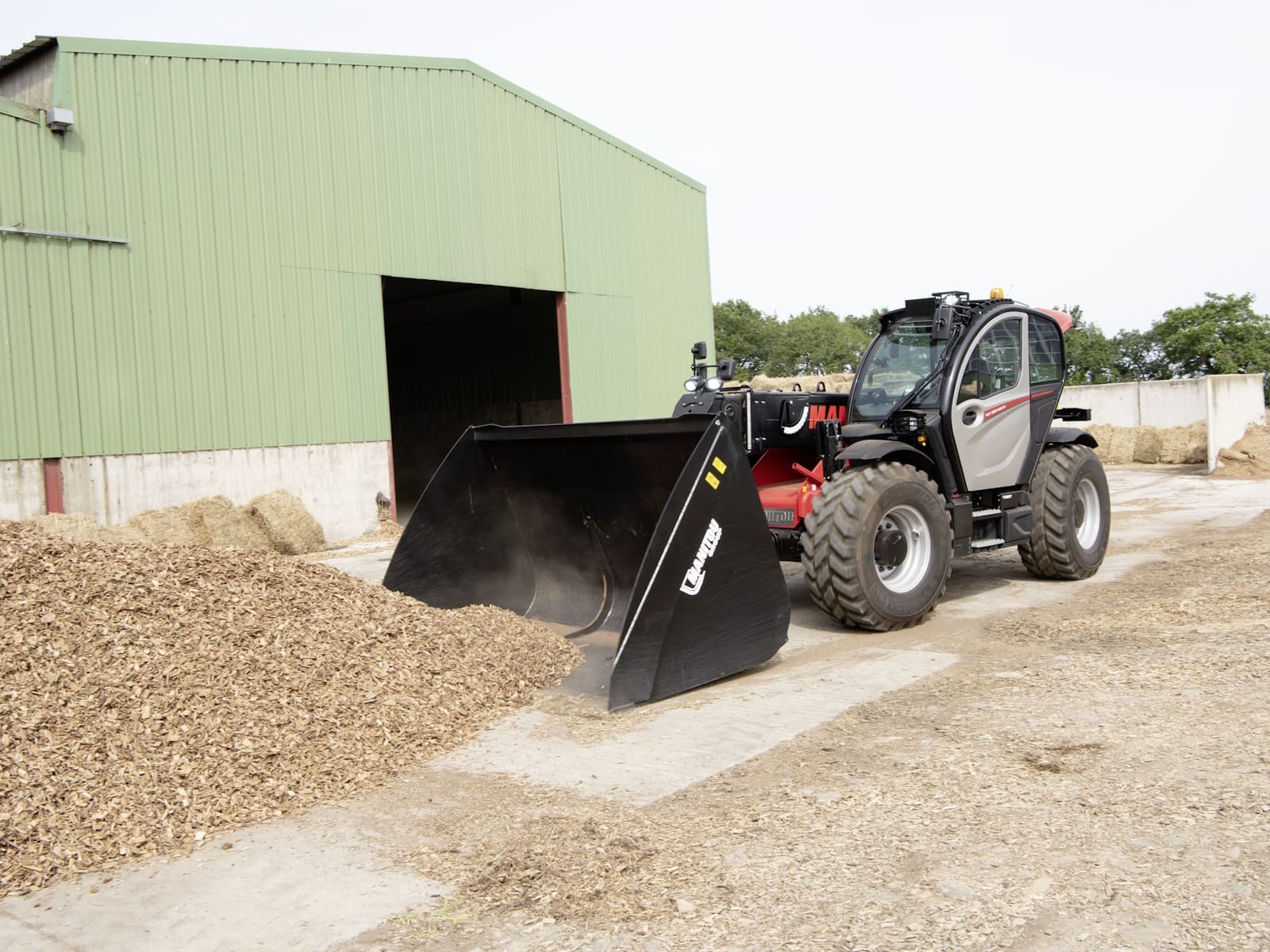

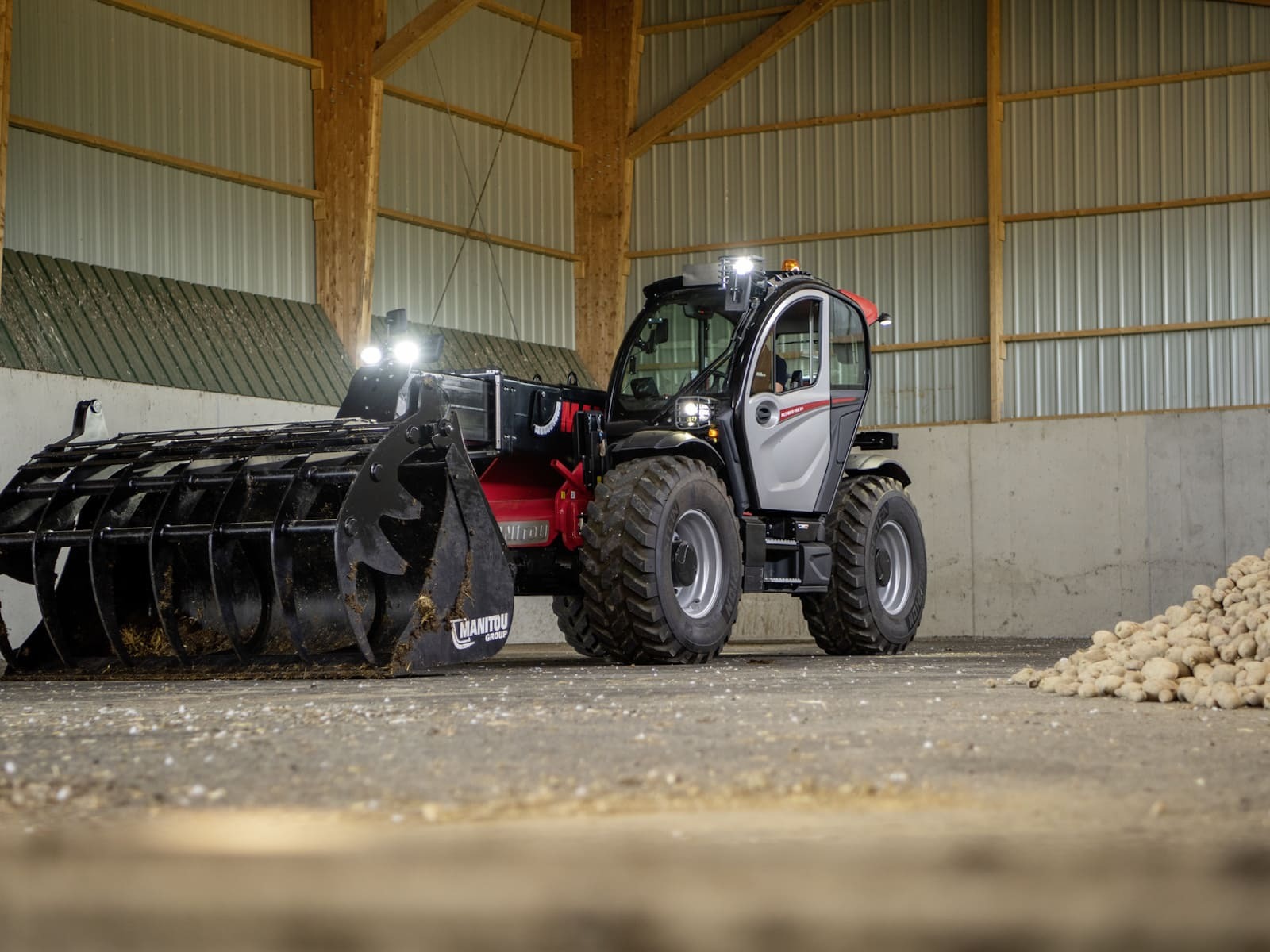

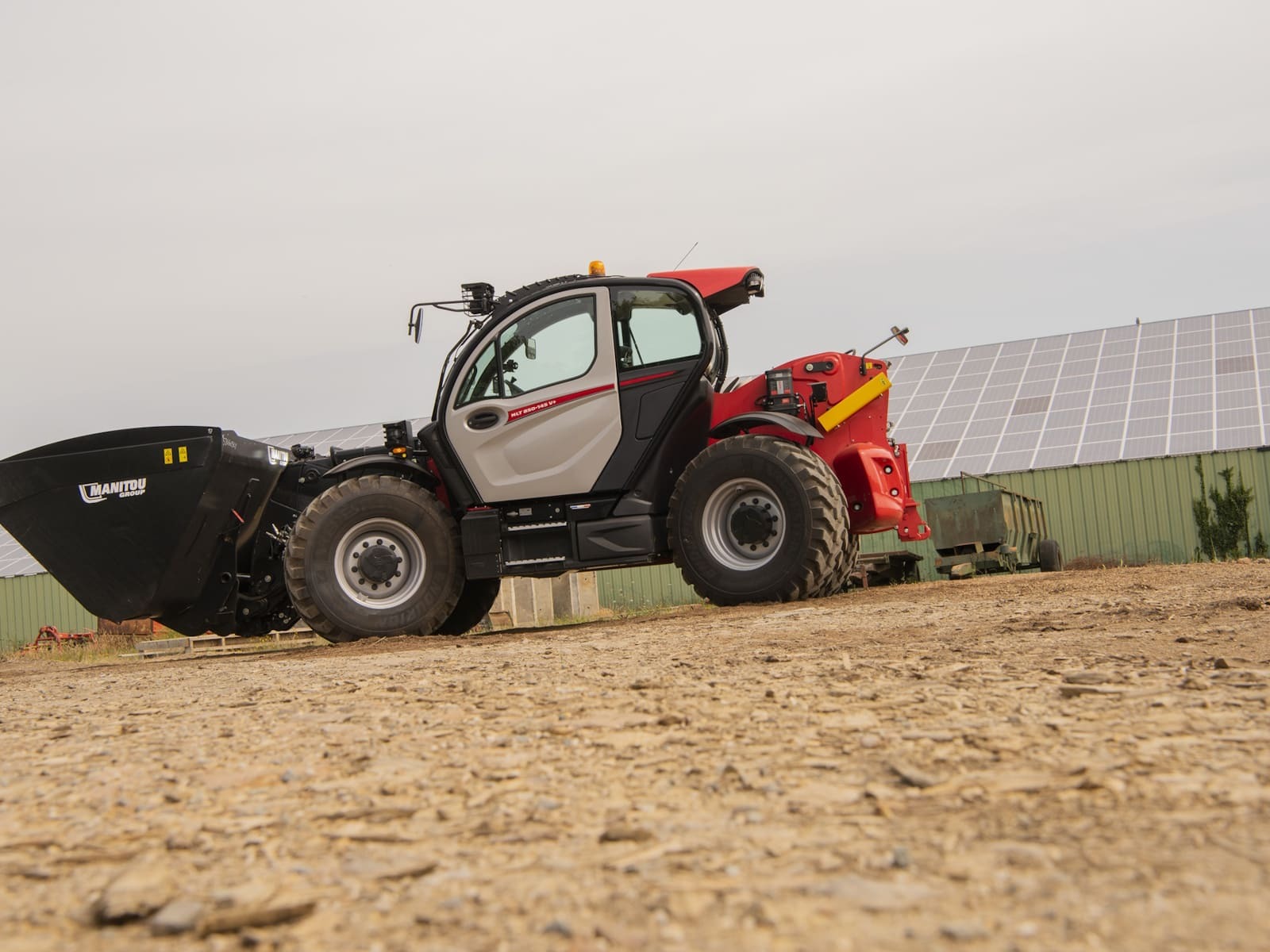

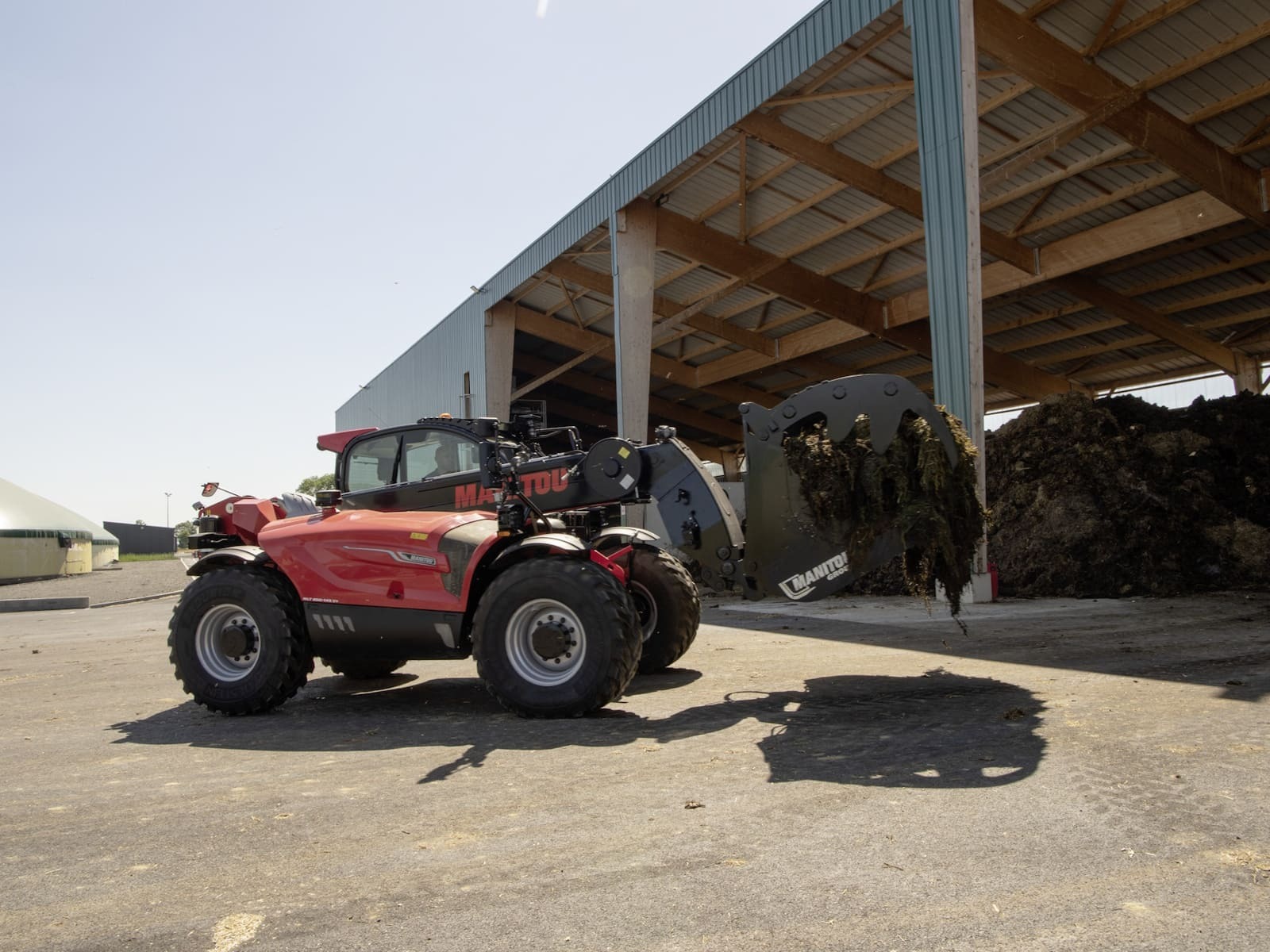

2026 Manitou Group MLT 850-145 V+

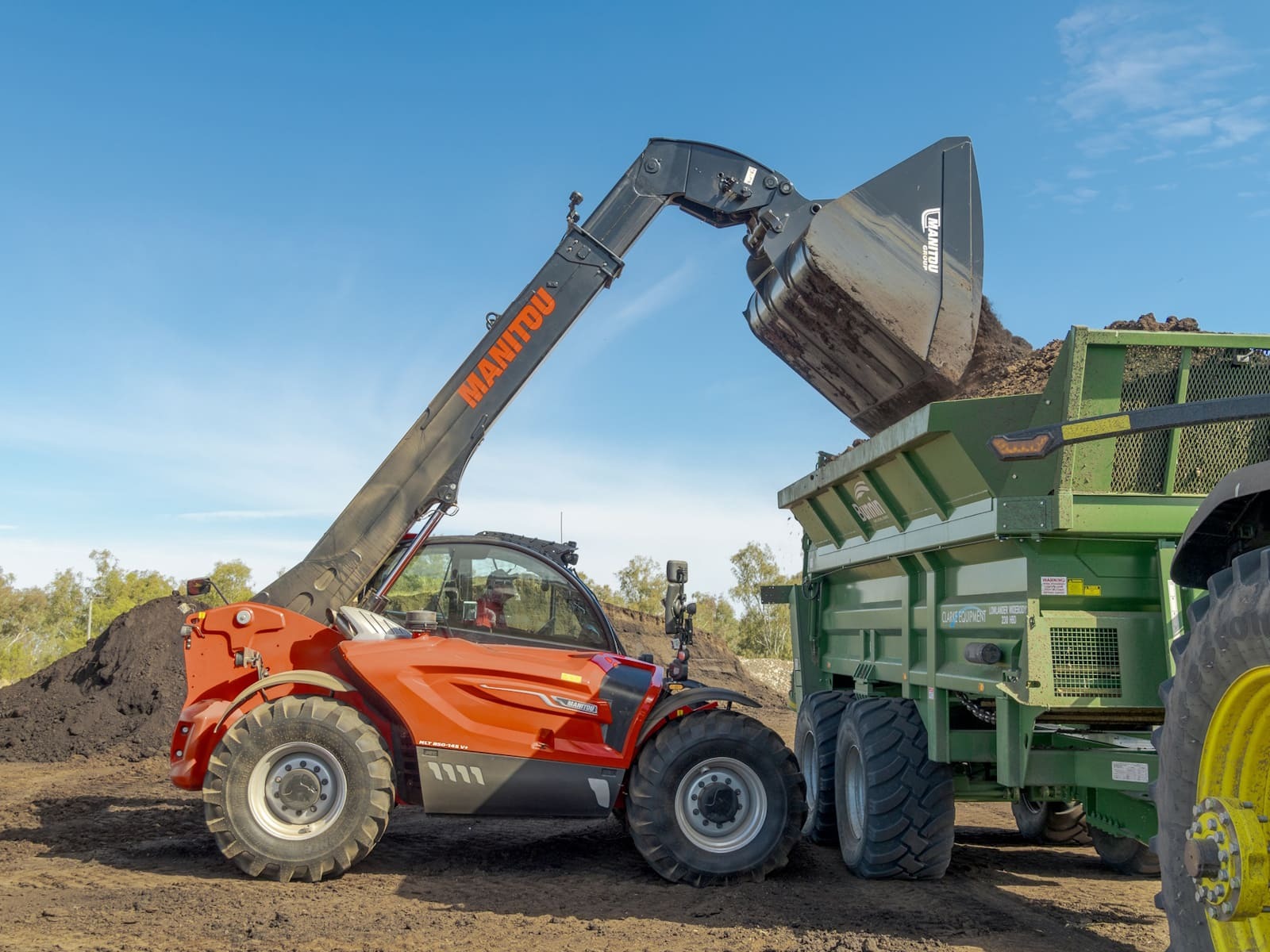

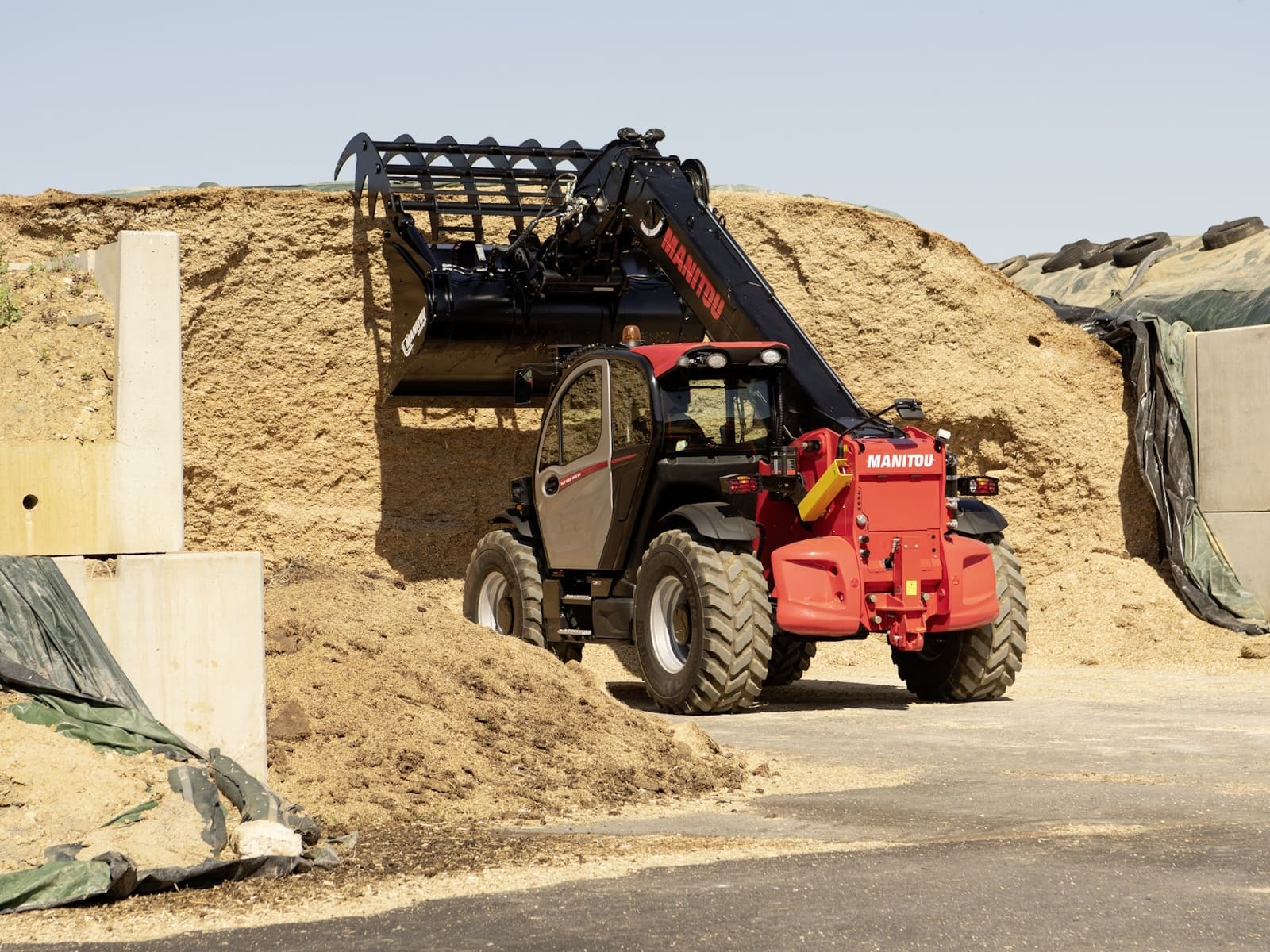

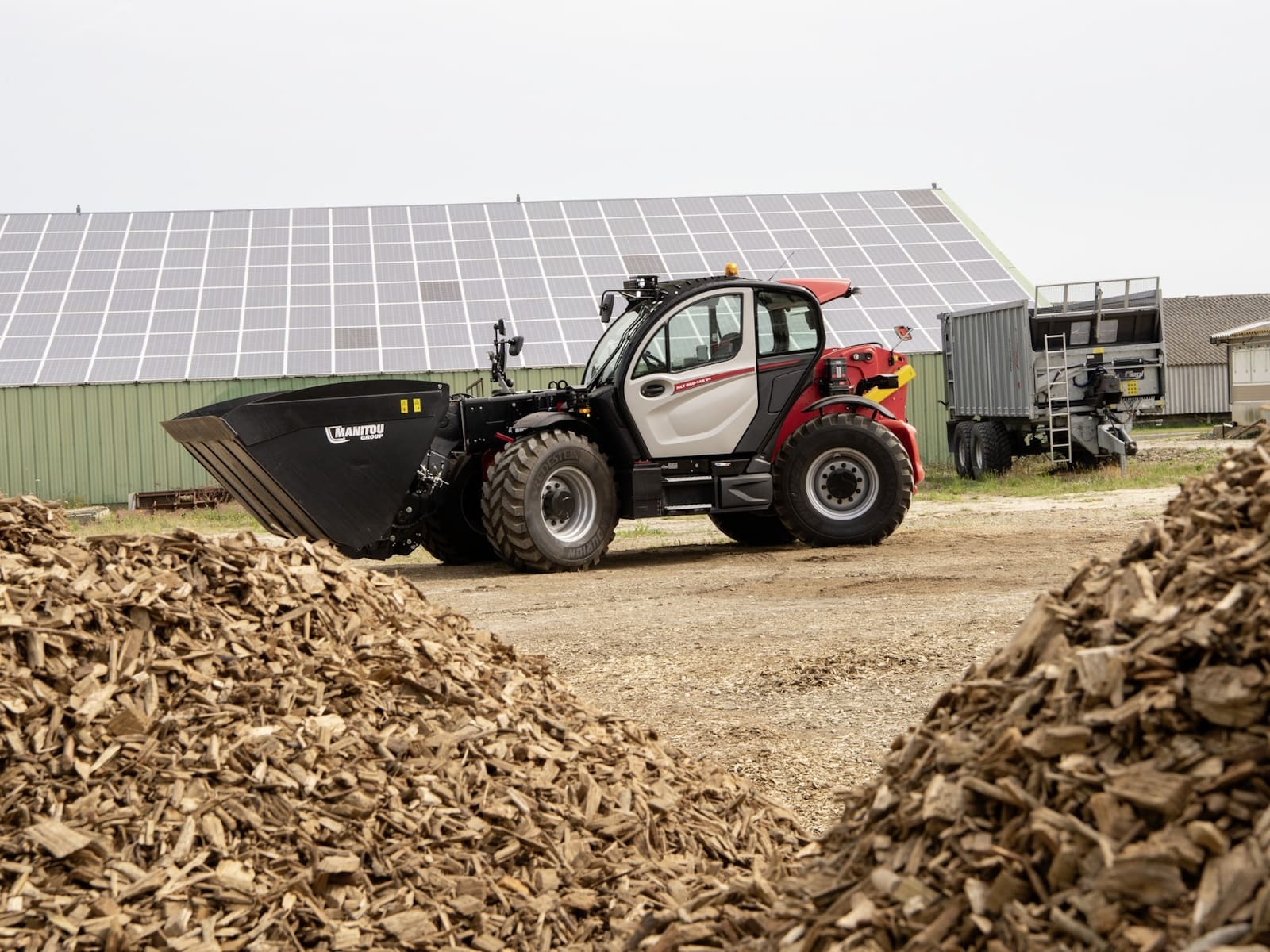

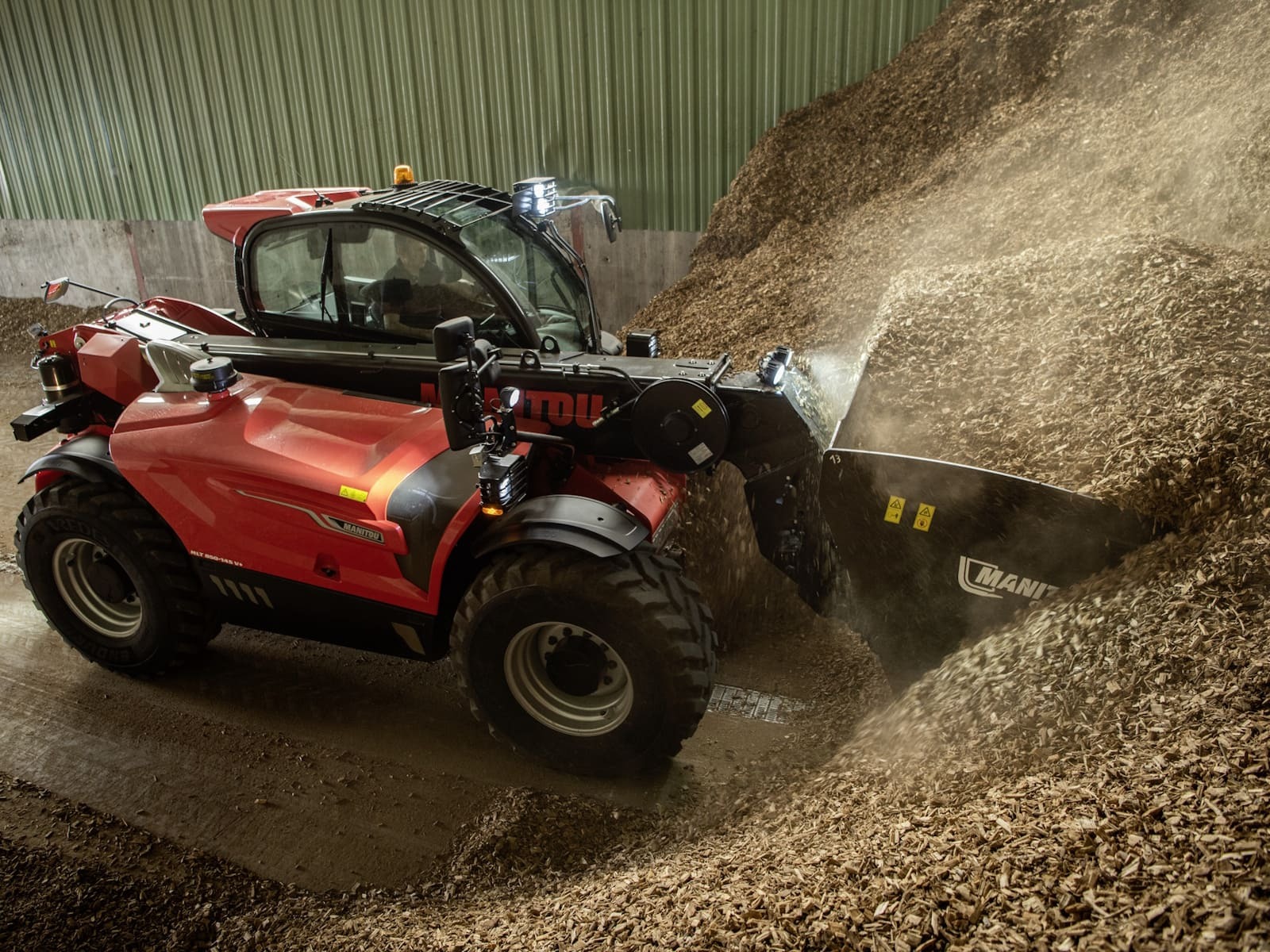

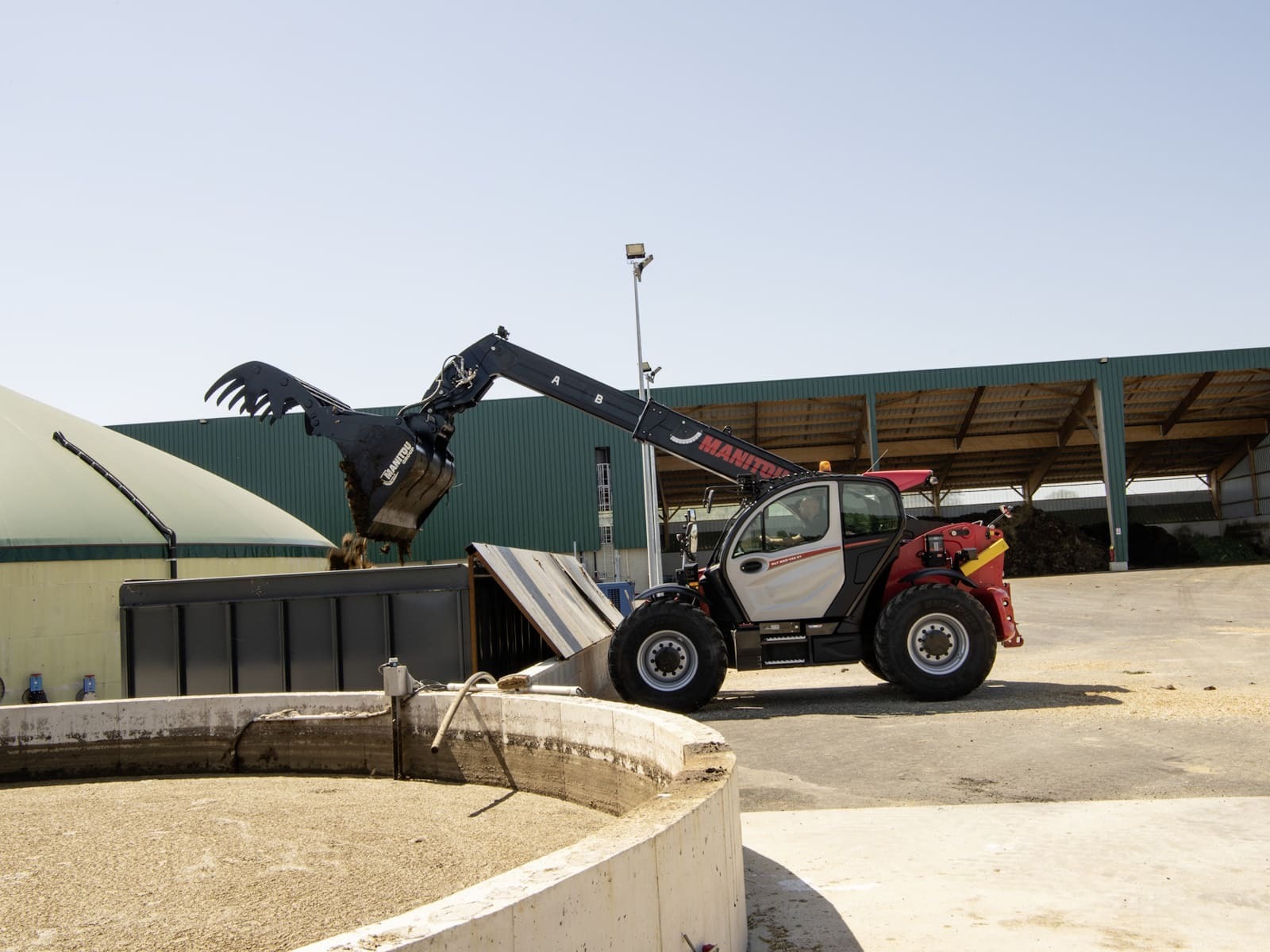

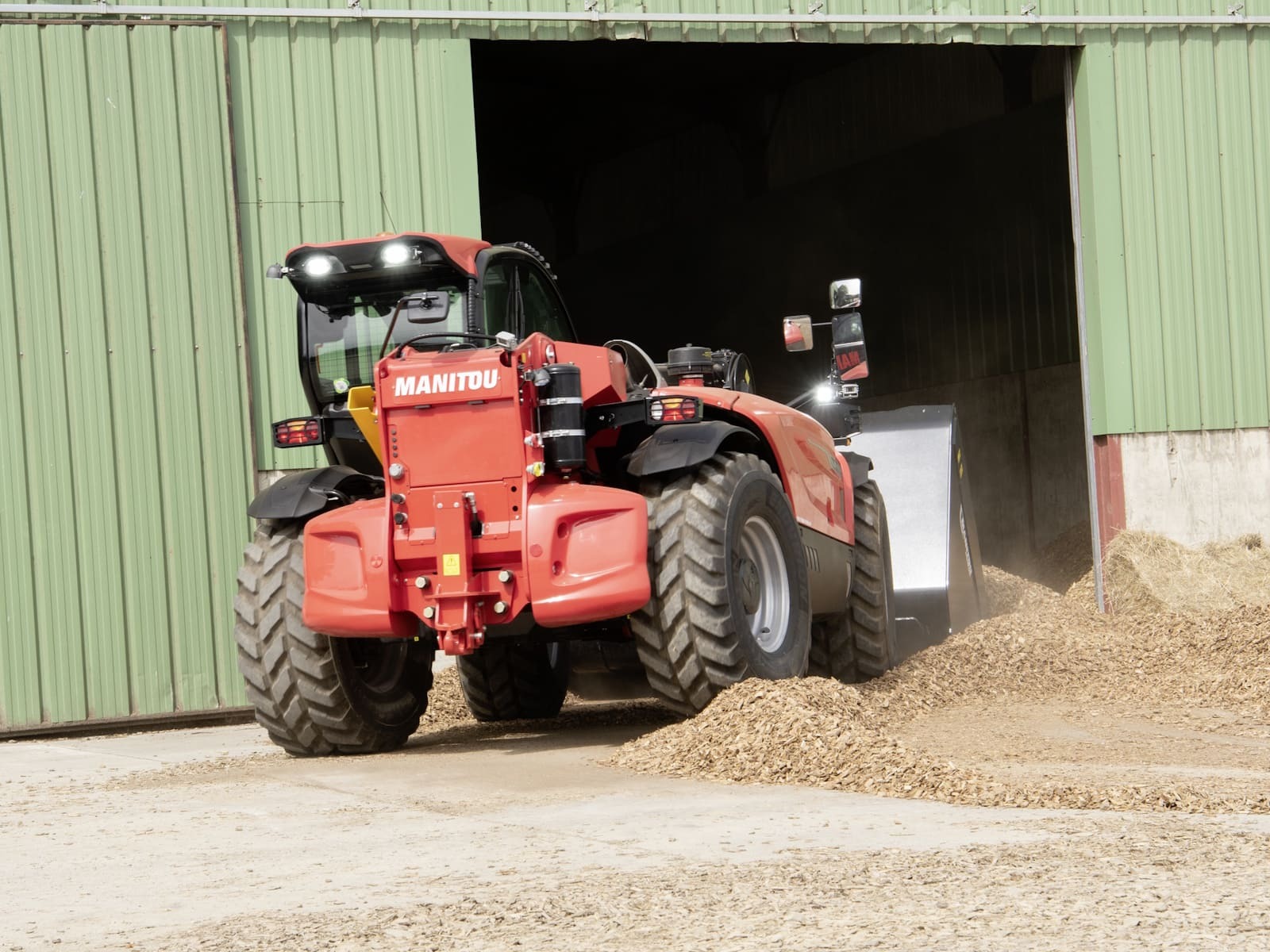

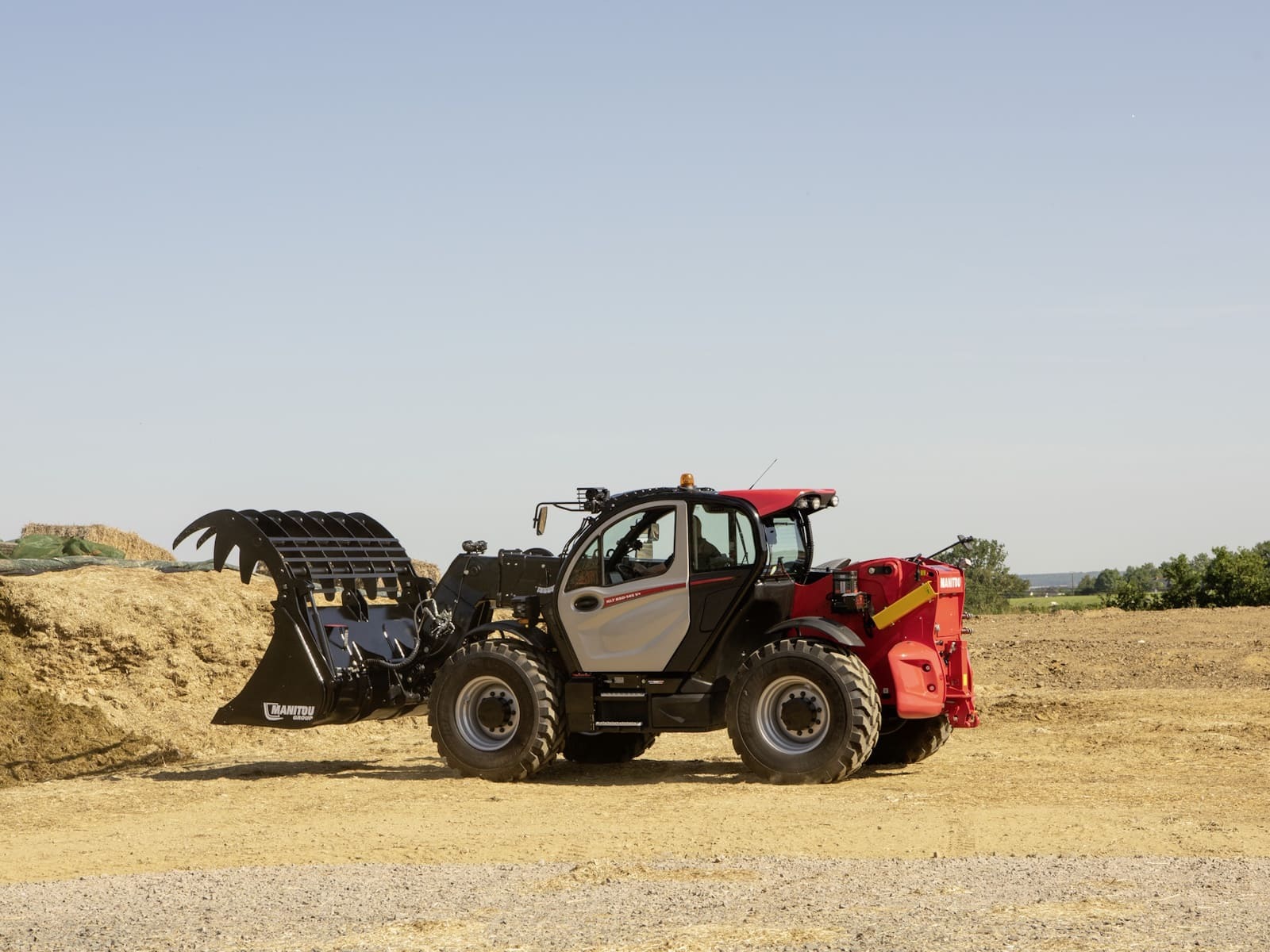

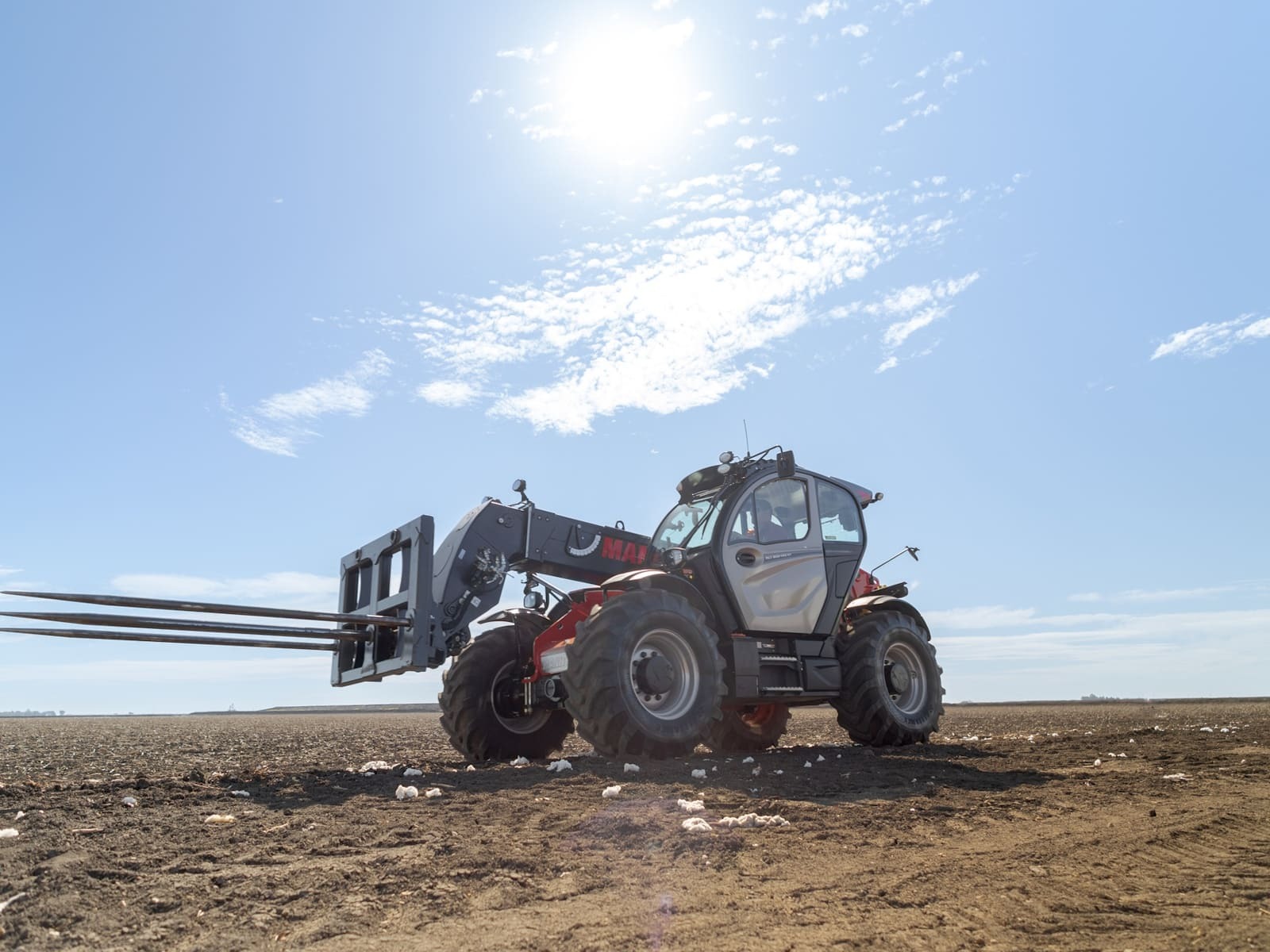

The MLT/MLT-X 850-145 V+ is designed to meet the needs of large farms, ETAs, cooperatives, agro-industry as well as the recycling and environmental sector.

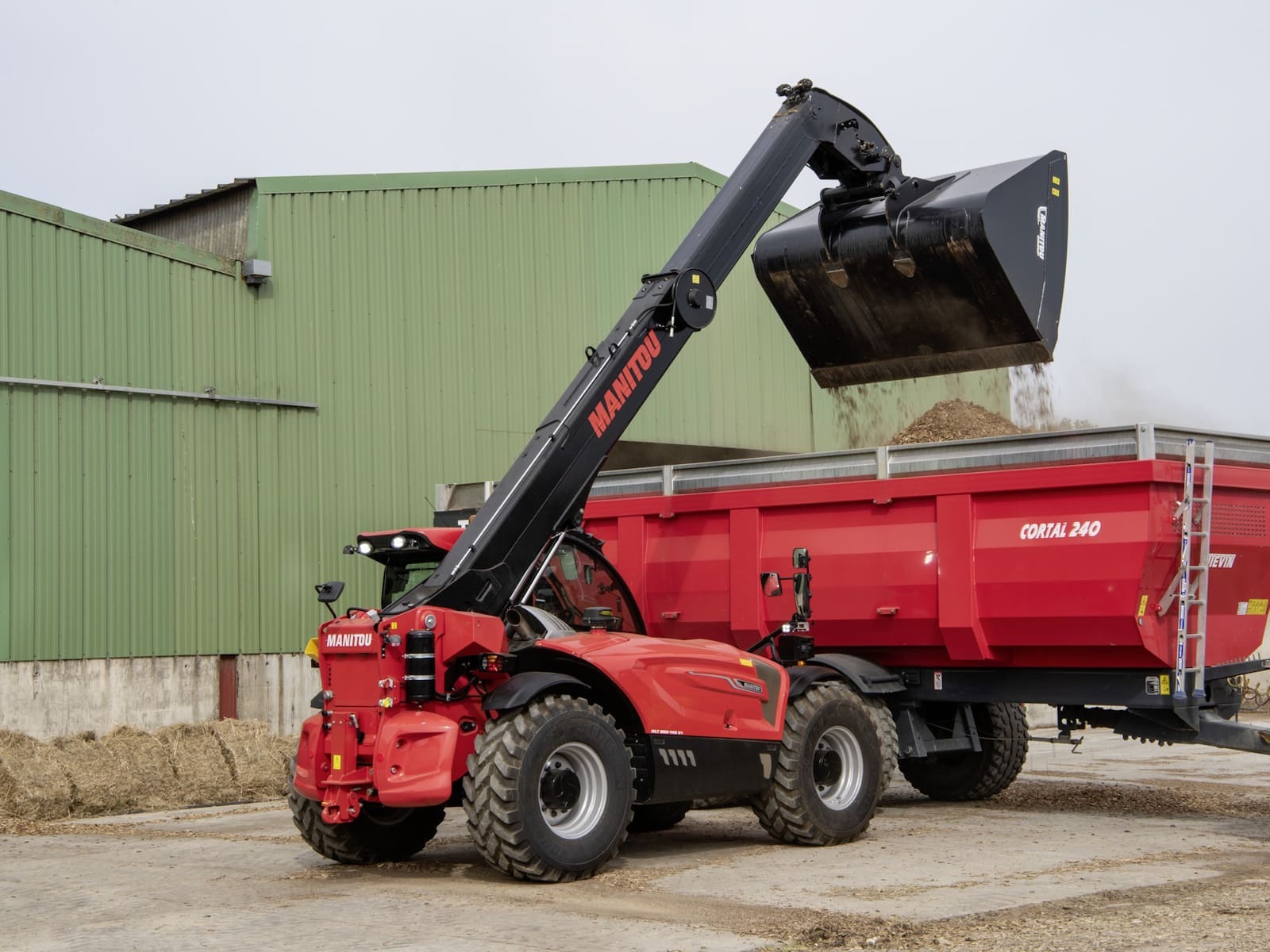

With a capacity of 5 tons and maximum lifting height of 24'11" (7.55 m), this machine can handle high capacity attachments and a very high hydraulic working speed. The MLT 850 has the best work rate in its category: +18% compared to the competition, that is to say 2 more loaded semi-trailers per hour.

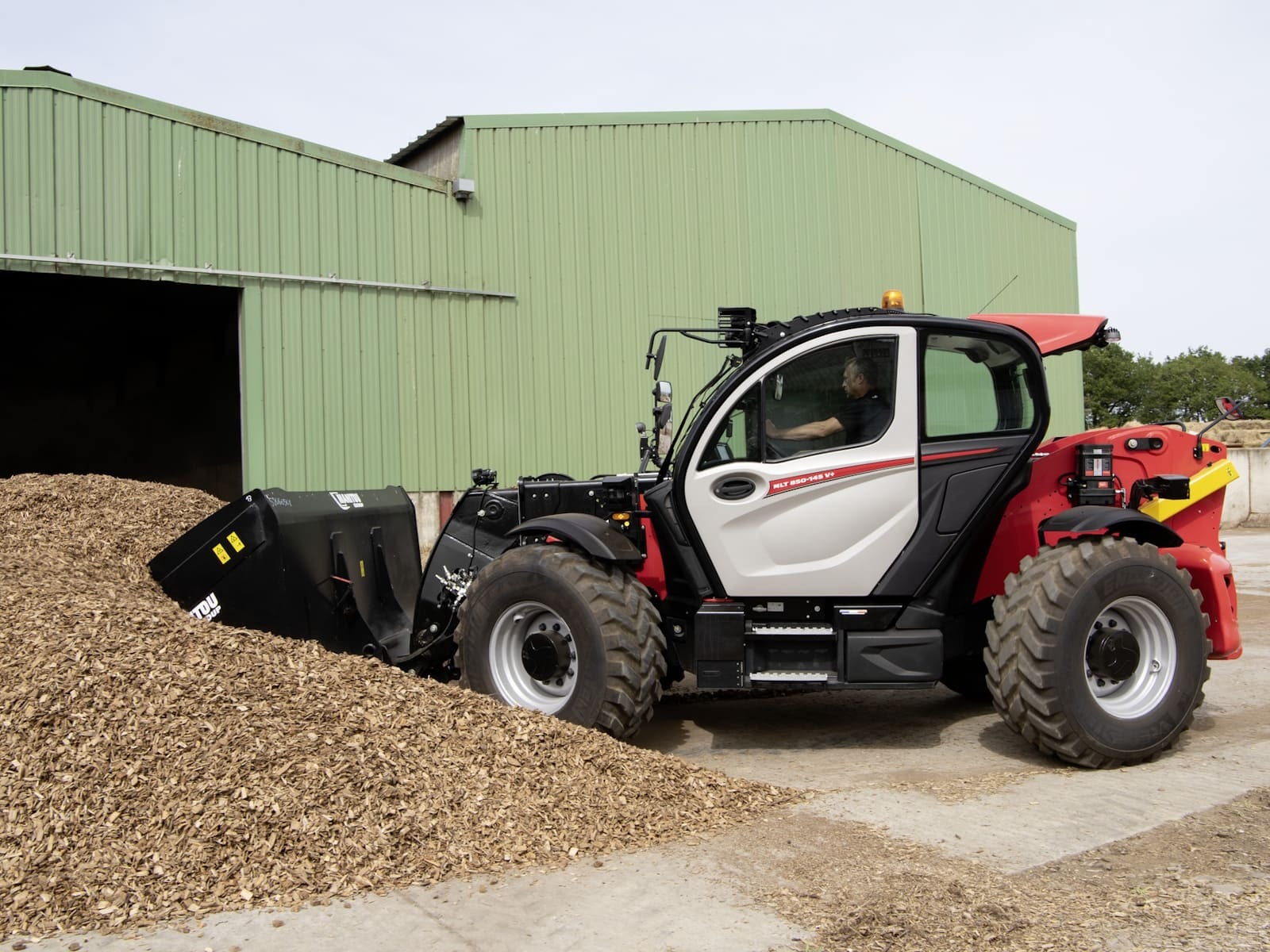

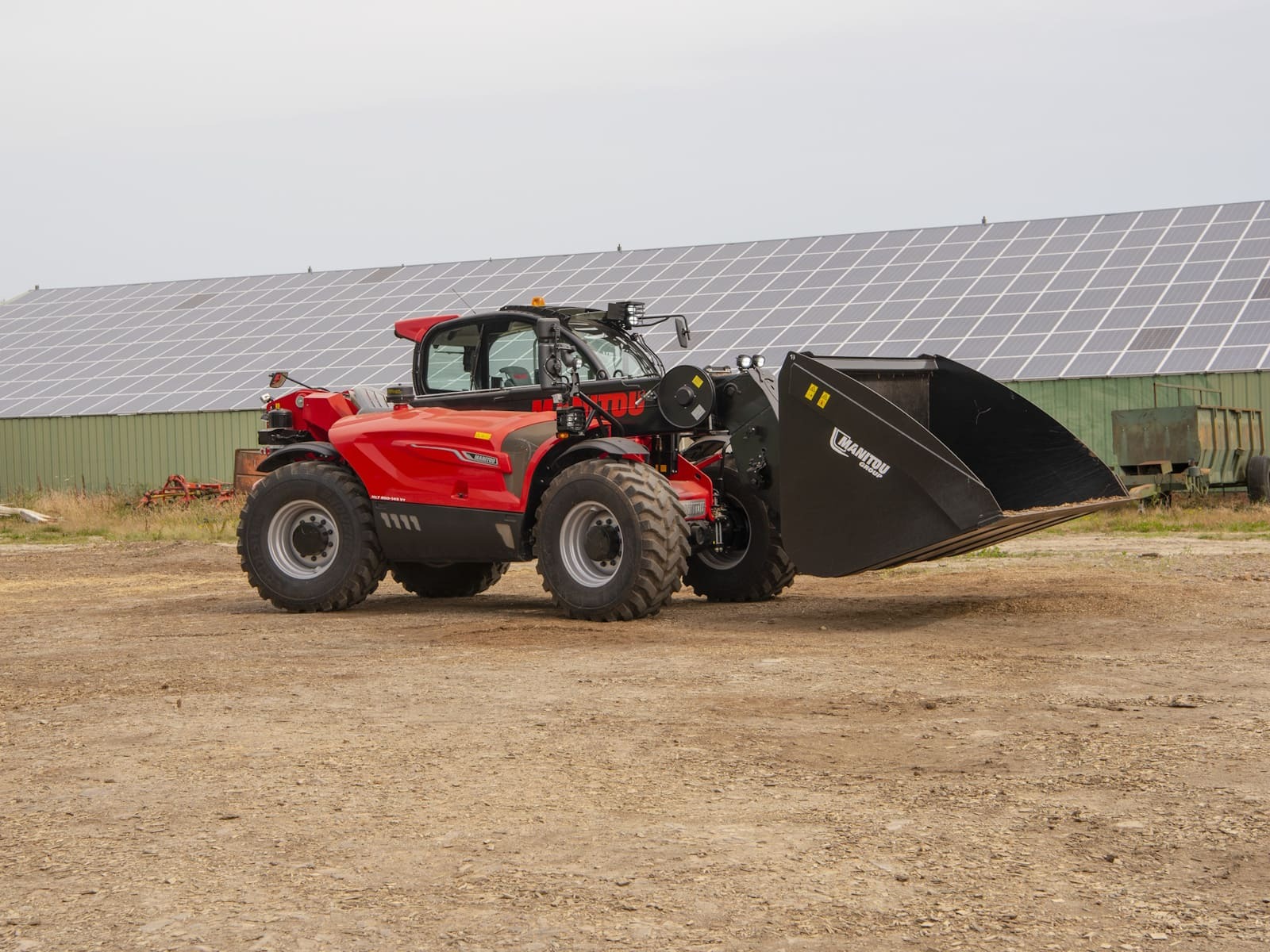

Maximum productivity: the MLT 850 offers more than 600 Nm of torque, with a pulling force of more than 9160 daN (+20% compared to the competition). The high speed of movement provided by the 53 gpm (200 l/min) LSU pump is complemented by a bucket breakout force of over 8670 daN (+32% compared to the competition).

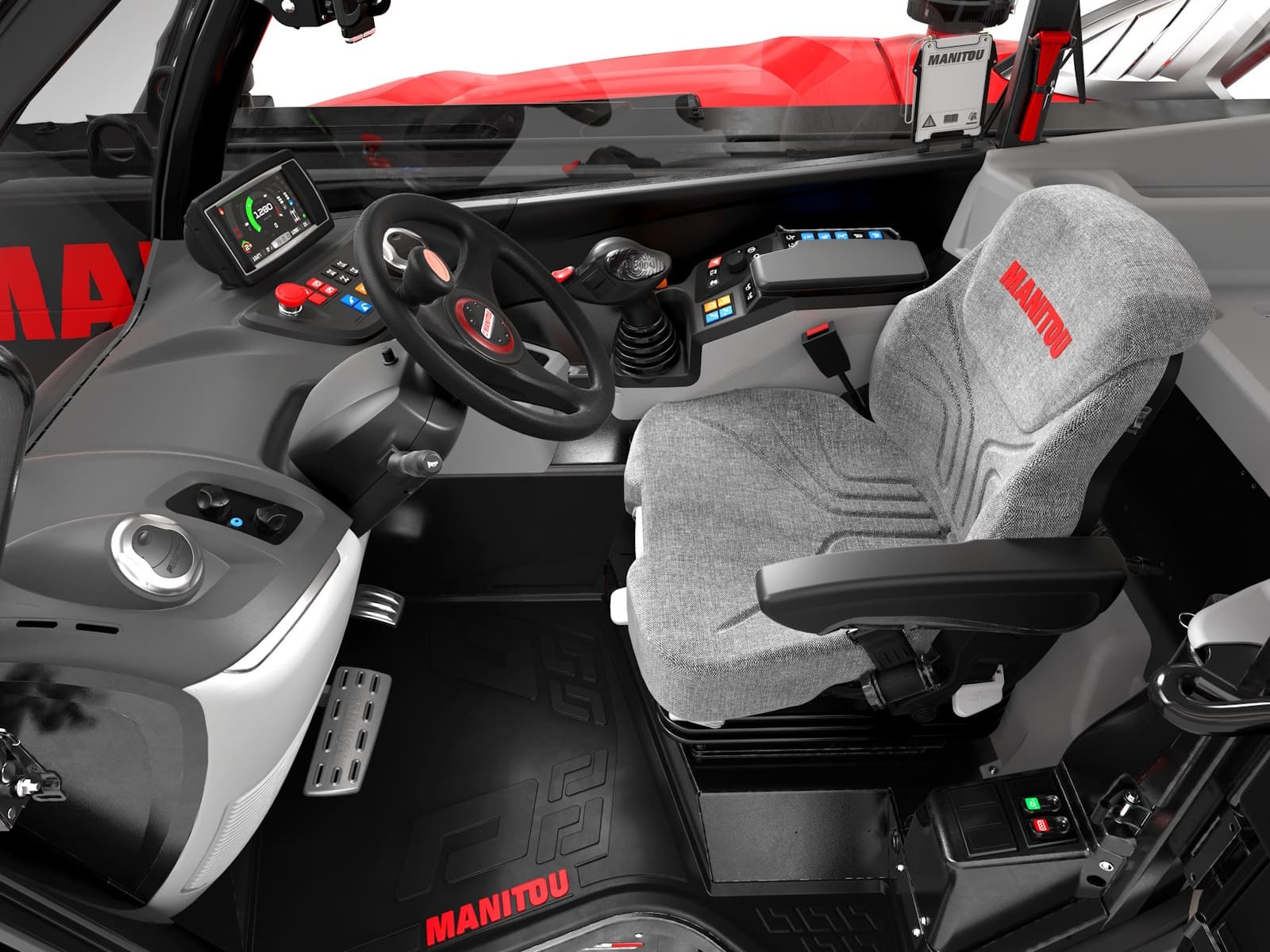

Effortless comfort: As with the entire NewAg XL range, the MLT 850 has the quietest cab on the market with only 69 dBA to reduce your fatigue. The cabin access has been optimized with two Easy-step steps combined with under-door lighting make getting in and out even safer, day or night.
Unmatched cost effectiveness: the MLT 850 is coupled with a range of services offered and adapted to your use and boasts a 4% reduction in maintenance costs as well as the lowest total cost of ownership in its category with 8% less than the competition. In addition, the energy efficiency of this machine allows you to consume 20% less fuel than the competition.
Info
Industry
Agriculture
Make
Manitou Group
Model
MLT 850-145 V+
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
Max. capacity: 11020 lb
Height
Max. lifting height: 24 ft 9 in | Reach at max. height: 2 ft 11 in | 8 ft 6 in
Notes
Max. outreach: 15 ft 1 in | Breakout force with bucket: 8670 daN | Front overhang: 5 ft 1 in | Tilt-down angle: 132 ° | Tilt-up angle: 12 ° | Lifting: 6.60 s | Lowering: 4.90 s | Extension: 6.30 s | Retraction: 5.70 s | Crowd: 4.20 s | Dump: 3.10 s | Drawbar pull (Laden): 9160 daN | Engine cooling system: 3 radiators water + intercooler + transmission oil | Gearbox: M-Vario Plus | Max. travel speed: 25 mph | Differential lock: Limited slip differential on front and rear axles | Hydraulic pump type: Variable displacement pump | Hydraulic flow - Pressure: 53 US gpm - 3916 PSI | Energy consumption according to EN 16796-4 standard: 2 US gph | Noise at driving position (LpA) tested following NF EN 12053 norm: 69 dB | Noise to environment (LwA): 105 dB | Vibration on hands/arms: < 8 ft/s² | Tractor homologation | Cab certification: Cabin ROPS - FOPS level 2 | Controls: JSM
Weight
Unladen weight (with forks): 23766 lb
Ground Clearance
1 ft 6 in
Wheelbase
9 ft 8 in
Length
Overall length to carriage (with hitch): 18 ft 3 in | Overall length to carriage (without hitch): 18 ft 2 in
Width
8 ft 2 in | Overall cab width: 3 ft 3 in
Turning Radius
External turning radius (over tyres): 13 ft 3 in
Tires
Alliance - A580 - 500/70 R24 164A8
Wheels
Drive wheels (front / rear): 2 / 2
Steering
Manicrab, 2 wheel steer, 4 wheel steer, Crab mode
Engine
Yanmar | Stage V / Tier 4 Final
Fuel Capacity
38 US gal | Max. fuel sulphur content: 1000 ppm | Flow sharing distributor: Standard | Diesel Exhaust fluid (AdBlue® type) tank capacity: 6 US gal
Cylinders
Number of cylinders - Capacity of cylinders: 4 - 279 in³
Power/Horsepower
141 Hp / 105 kW
Torque
Max. torque / Engine rotation: 444 ft/lbs @1500 rpm
Transmission
Continuously variable transmission
Brakes
Parking brake: Automatic negative parking brake | Service brake: Oil-immersed multi-discs braking on front & rear axles
