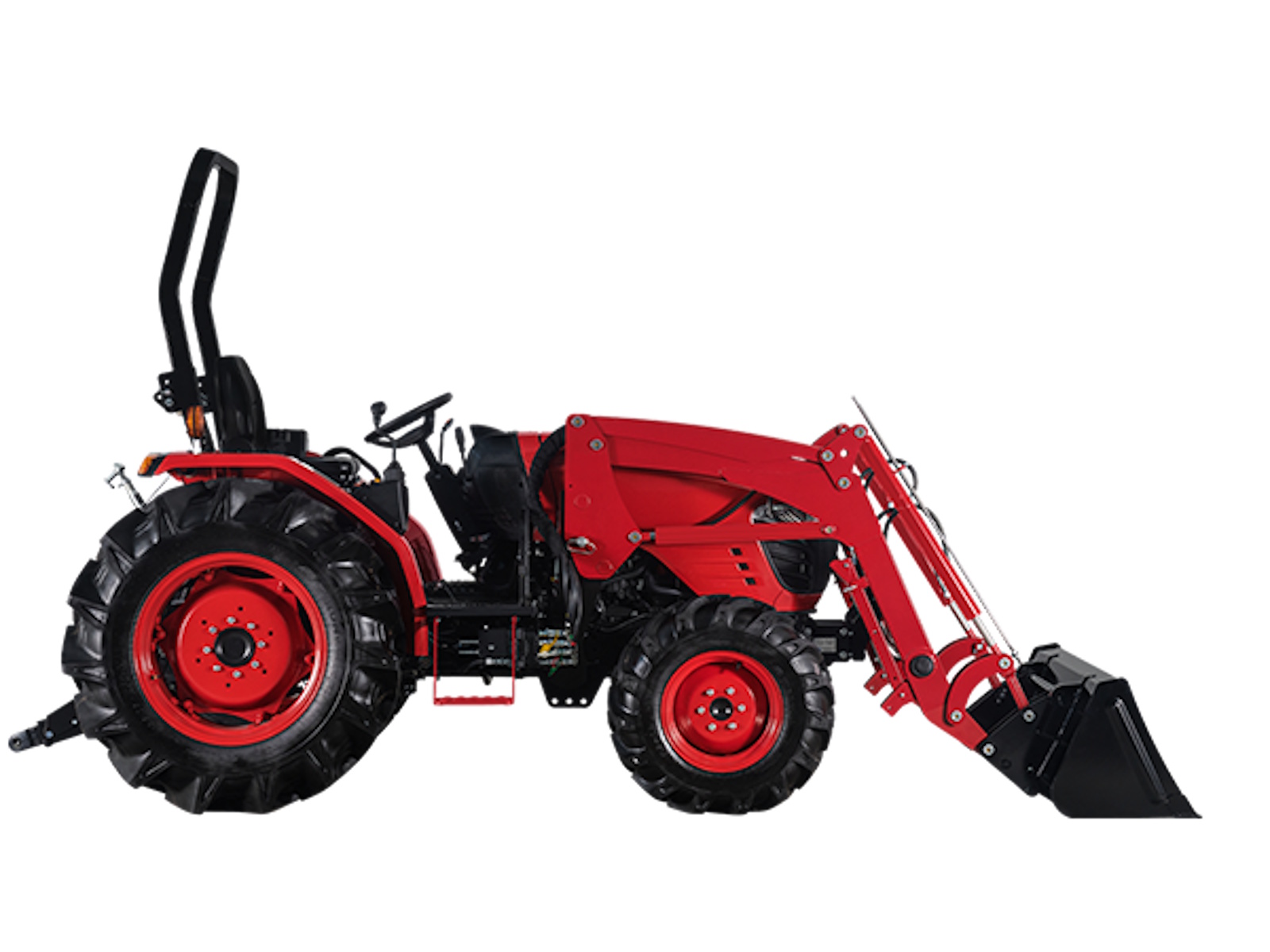

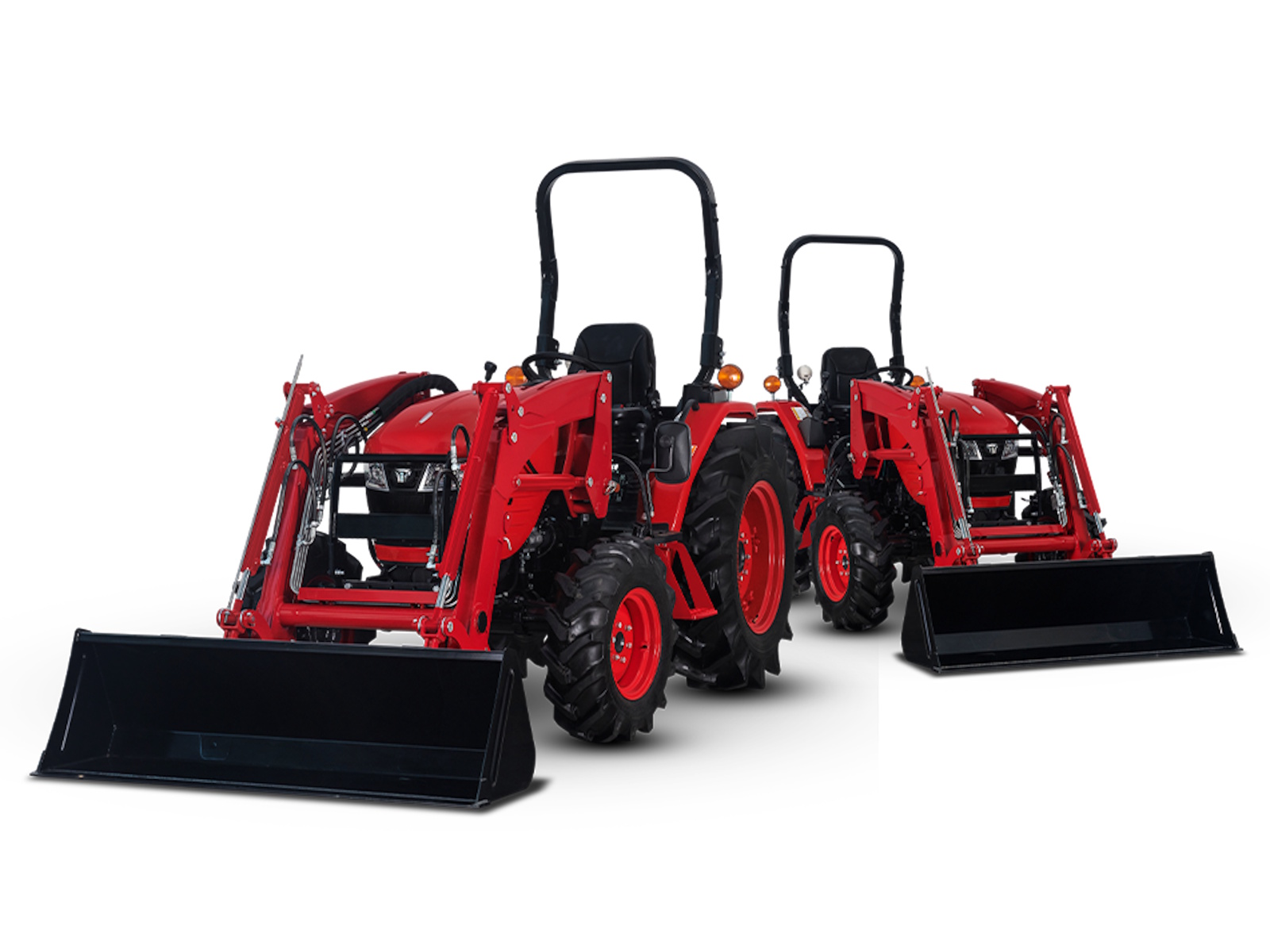

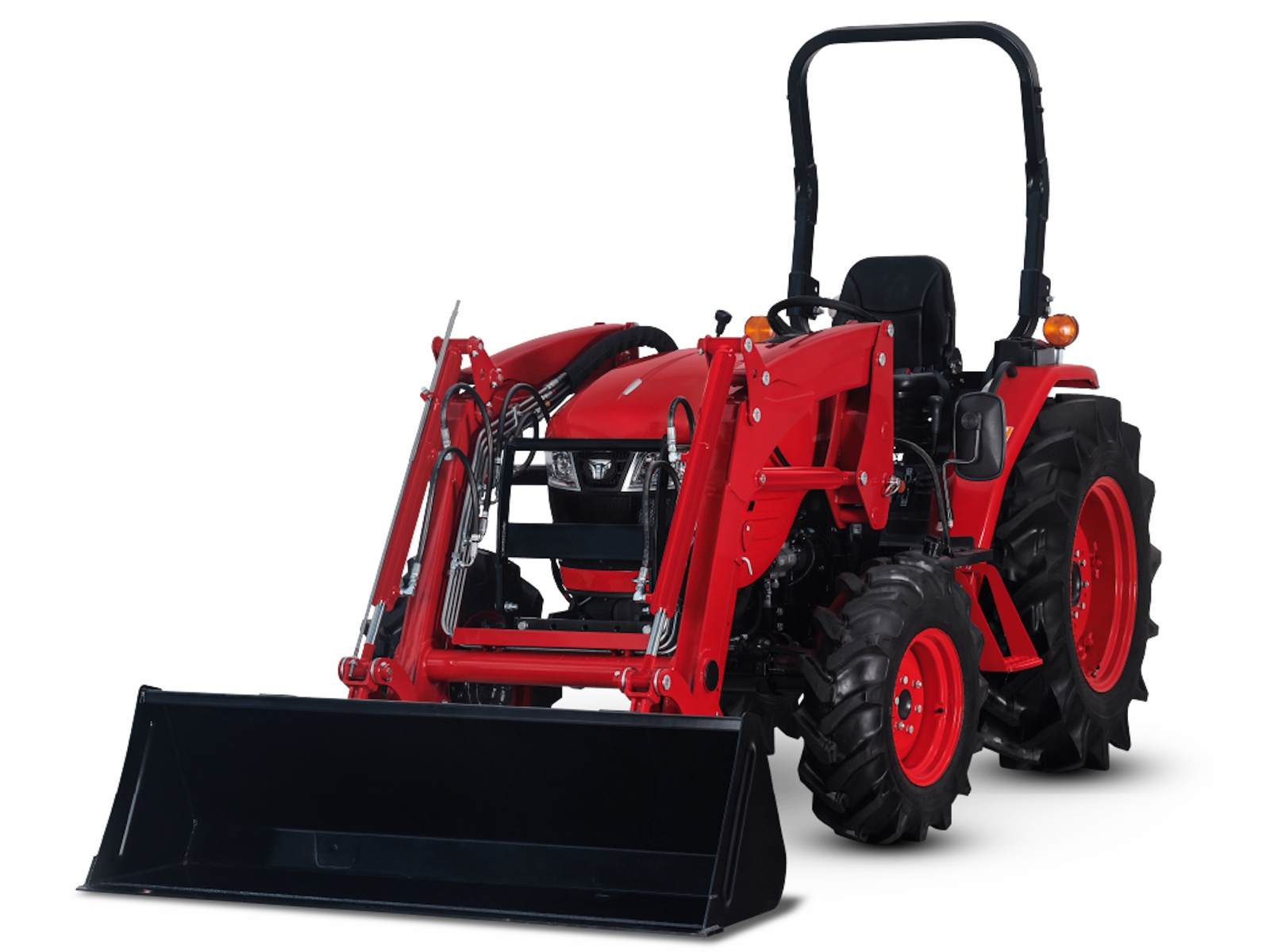

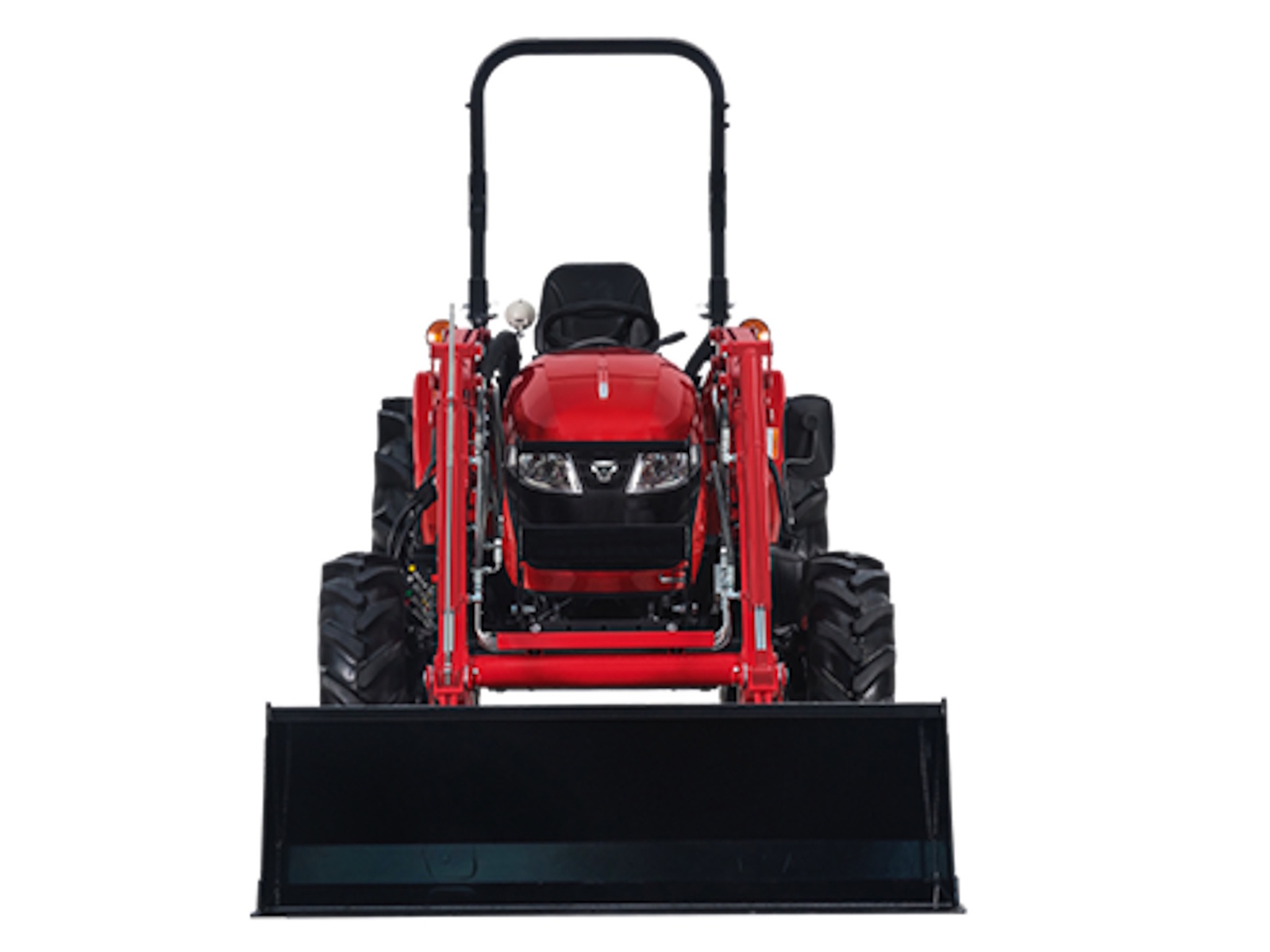

    2026 TYM Tractors 4820R

    A high-performance compact tractor built to take on challenges of all sizes
    High performance meets high efficiency in this customizable Series 3 tractor. The 4820 can be configured as you see fit to drive productivity and it’s equipped with the features designed to maintain your comfort throughout tasks of varying intensities.

    Features May Include:

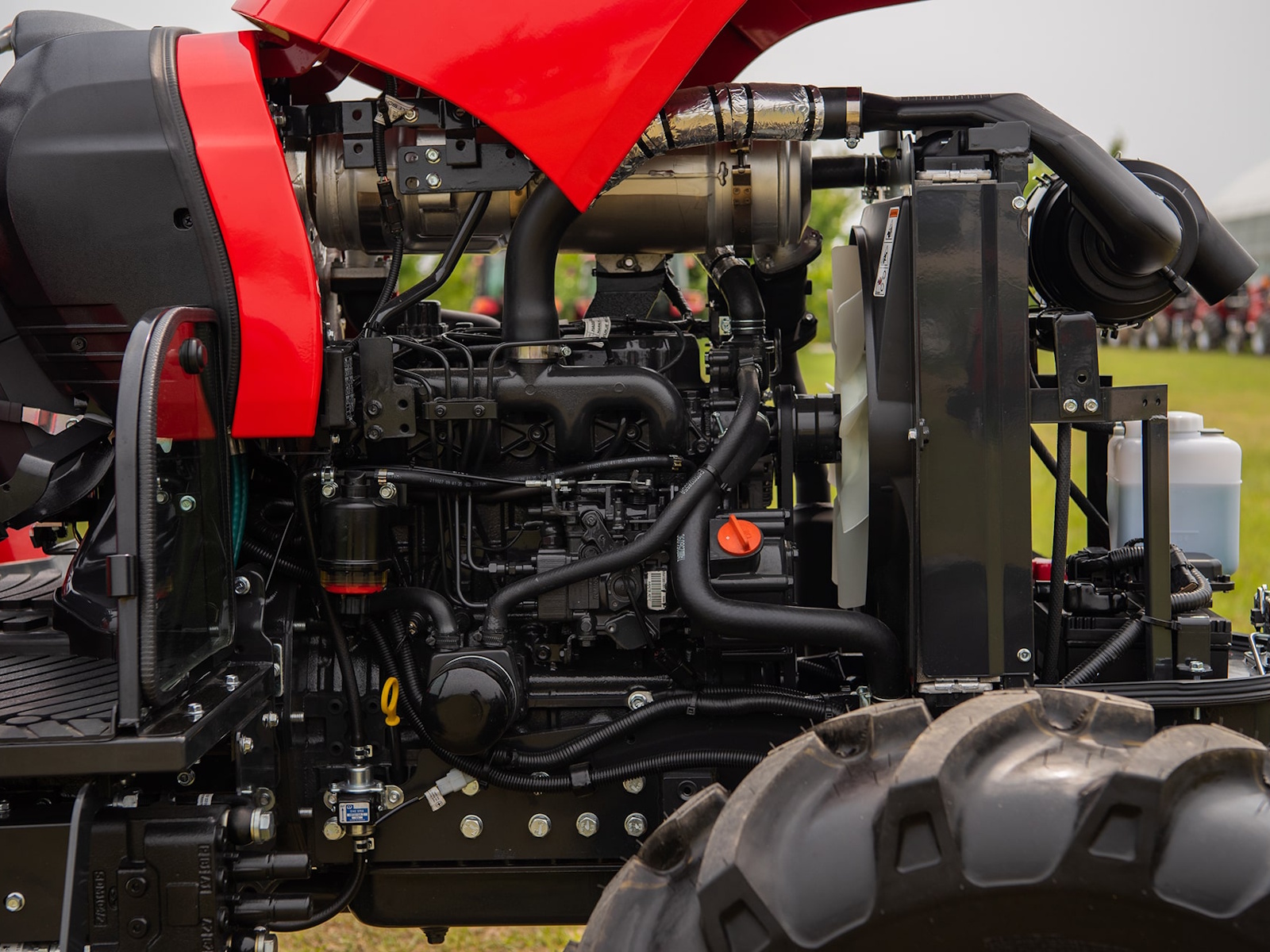

    Eco-friendly TYM Tier 4 engine

    • Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient without compromising on performance.

    Tilt steering wheel

    • The tilt steering wheel allows operators to adjust the position of the steering wheel for a more comfortable driving experience.

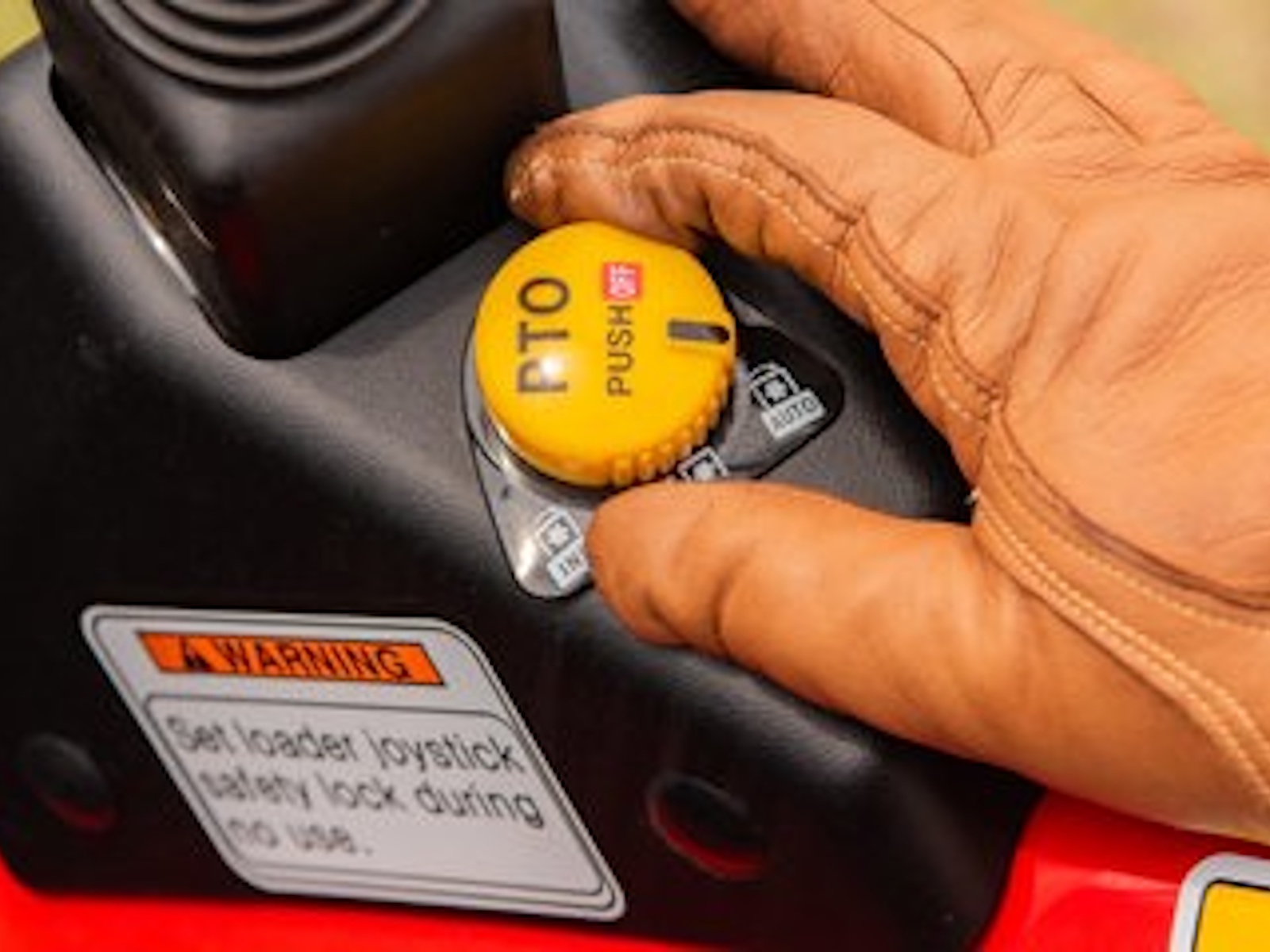

    PTO on/off switch

    • Safety is a top priority. The PTO switch ensures secure operation of all tractor attachments.

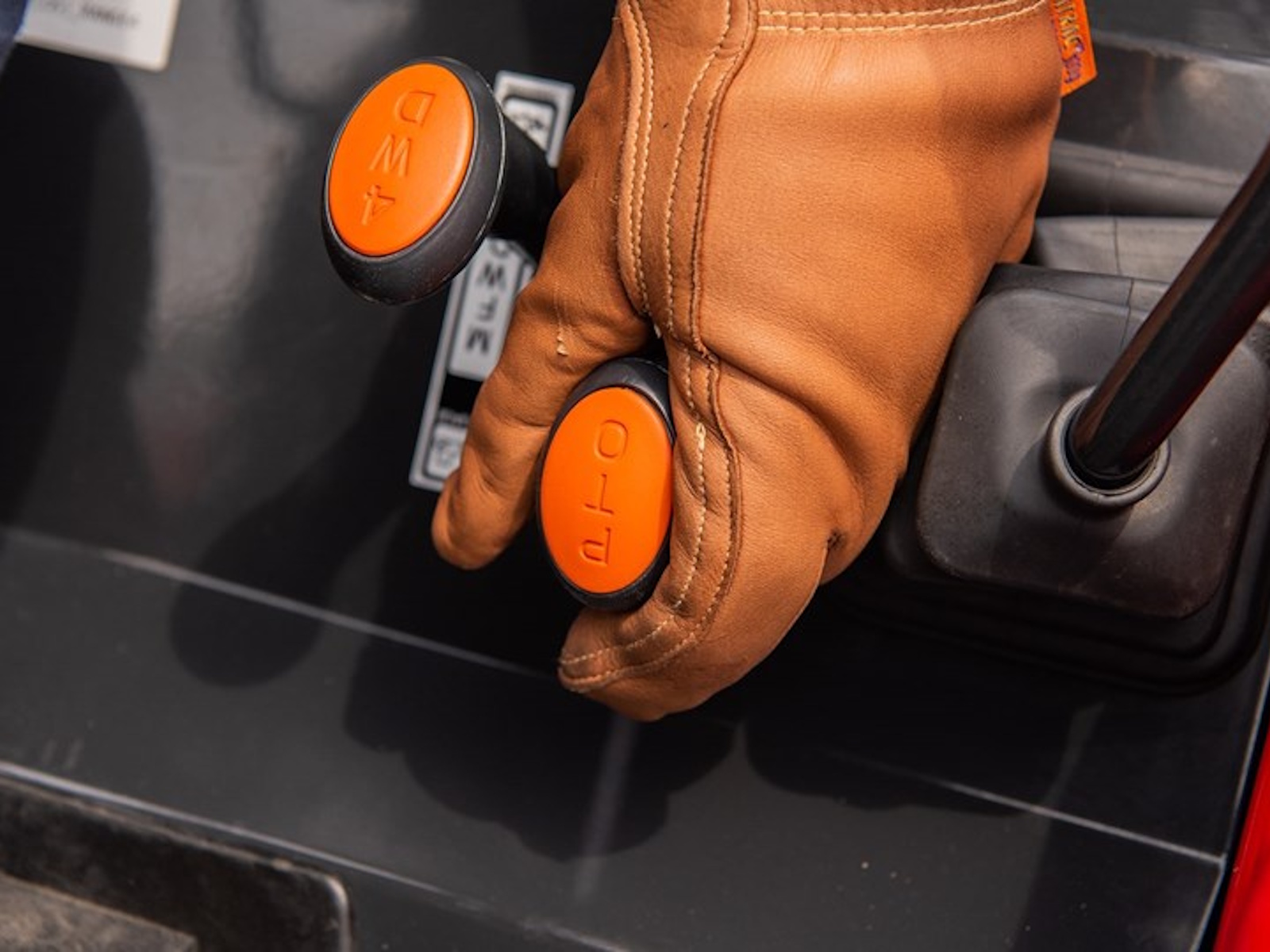

    Differential lock systems & low turning angle

    • The differential lock system, activated with easily accessible levers, provides enhanced traction in slippery work environments, while a 52˚ turning angle makes operation in narrow areas much easier.

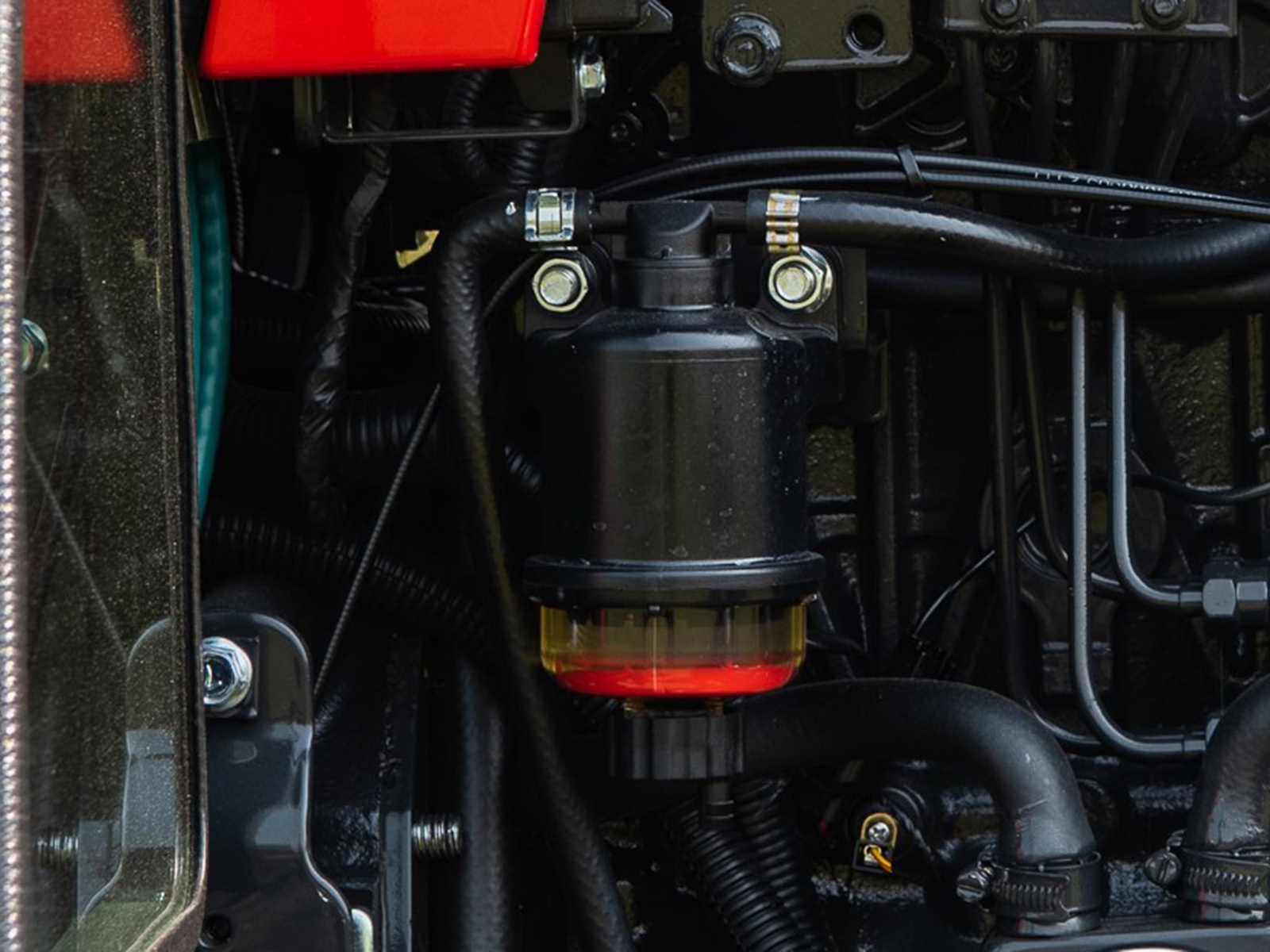

    Water-separating fuel filter

    • The water-separating fuel filter prevents foreign substances from entering the fuel, ensuring better engine starting performance and preventing damage to the machine.

    Optional tires for various working conditions

    • In addition to standard agricultural tires, industrial and turf tires are also available for versatile working conditions.

    Info

    Industry

    Agriculture

    Make

    TYM Tractors

    Model

    4820R

    Trim

    Base

    Year

    2026

    MSRP

    N/A

    Category

    Tractor

    Subcategory

    Compact


    Specs

    Engine

    Manufacturer: TYM A2300N2

    Engine Type

    Natural Aspiration

    Power/Horsepower

    Engine: 48 hp | PTO: 38.4 hp

    RPM

    Engine: 2600 rpm | PTO Rear: 584 rpm

    Cylinders

    4

    Displacement

    139.5 cu. in.

    Alternator

    12V, 50A

    Fuel System

    IDI

    Transmission

    Synchromesh | Hydraulics system: 4820R: 10.3 gal

    Brakes

    Wet, Multi-disc

    Steering

    Flow: 5.2 gpm | Hydrostatic

    Clutch

    Dry Single Type

    PTO Type

    Independent | Control: Wet/Multi disc | Rear: 540/750 rpm

    Fuel Capacity

    11.8 gal

    Length

    Overall: 127.4 in.

    Width

    Overall: 64.9 in.

    Wheelbase

    71.1 in.

    Height

    Overall: 98.4 in.

    Ground Clearance

    15.5 in.

    Turning Radius

    With Brakes: 9.2 ft | Without Brakes: 9.2 ft

    Weight

    3831 lb

    Fuel Type

    Diesel

    Family/Type

    Pump type: Dual gear pump

    Notes

    Implement flow: 11.4 gpm | Category, 3-point hitch: I | Hitch lift capacity: 3306 lb | Hitch lift capacity at 24 inches behind link ends: 2425 lb | Lift control type: Position | No. of standard remote valves: Optional (up to 4) | No. of speeds: 4820R: F16 x R16 | Max. traveling speed: 4820R: 16 mph | R1 Agricultural - Front: 9.5-16 | R1 Agricultural - Rear: 13.6-26 | R3 Turf - Front: 1: 27x8.5-15 2: 29x12.5-15 | R3 Turf - Rear: 1: 41x14-20 2: 44x18-20 | R4 Industrial - Front: 12-16.5 | R4 Industrial - Rear: 17.5Lx24
