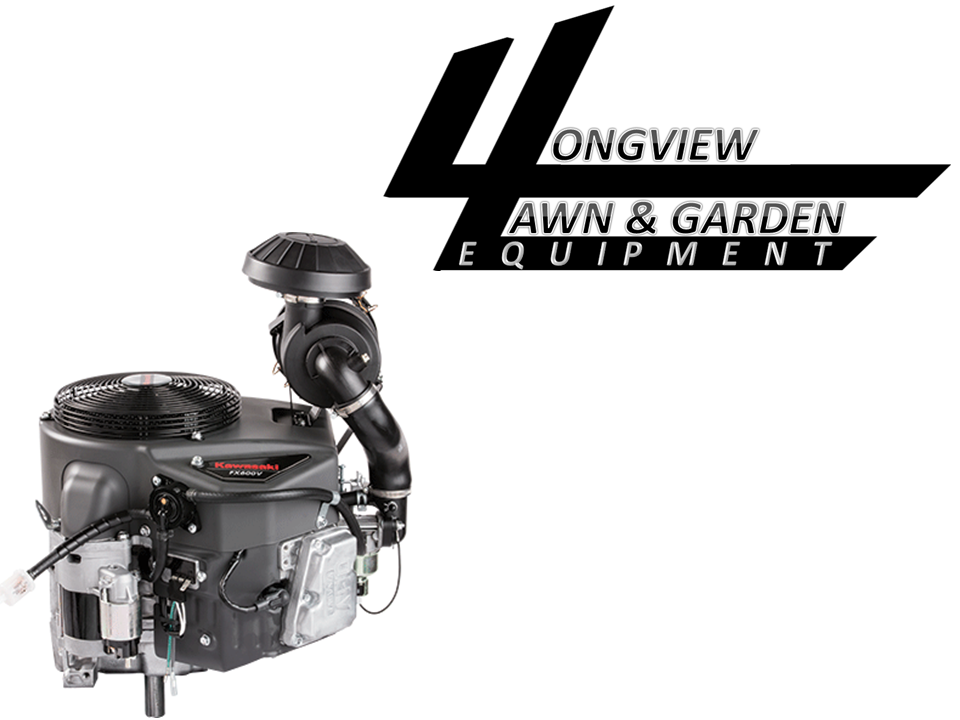

2026 Kawasaki Engines 20 hp FX Series Vertical Shaft - FX600V-FS01-S

Factory Freight: $130.00

Crankshaft: 3 5/32" (1000 MM), 1",

Muffler Not Included

New Muffler will be required if replacing FH Series Engines

Scag Tiger Cat Application

•Overhead v-valve

•90° V-twin

•Pressurized lubrication system

•Electronic spark ignition

•Automatic compression release

•Internally vented carburetor

•Rotating grass chopper screen

•Multi-Stage canister air filter

•Cast-iron cylinder liners

•Metal engine cover with integrated clean out ports

•Heavy duty shift-type starter

Specifications

Displacement 603 cc (36.8 cu. in.)

Number of Cylinders 2

Bore x Stroke 2.9 x 2.8 in. (73 x 72mm)

Compression Ratio 8.1:1

Oil capacity w/filter 1.8 U.S. qt ( 1.7 liters)

Maximum Power 19.0 hp (14.2 kW) at 3,600 RPM

Maximum Torque 32.5 ft lbs (44.1 N·m) at 2,200 RPM

Dry weight w/o muffler 89.7 lbs (36.7 kg)
