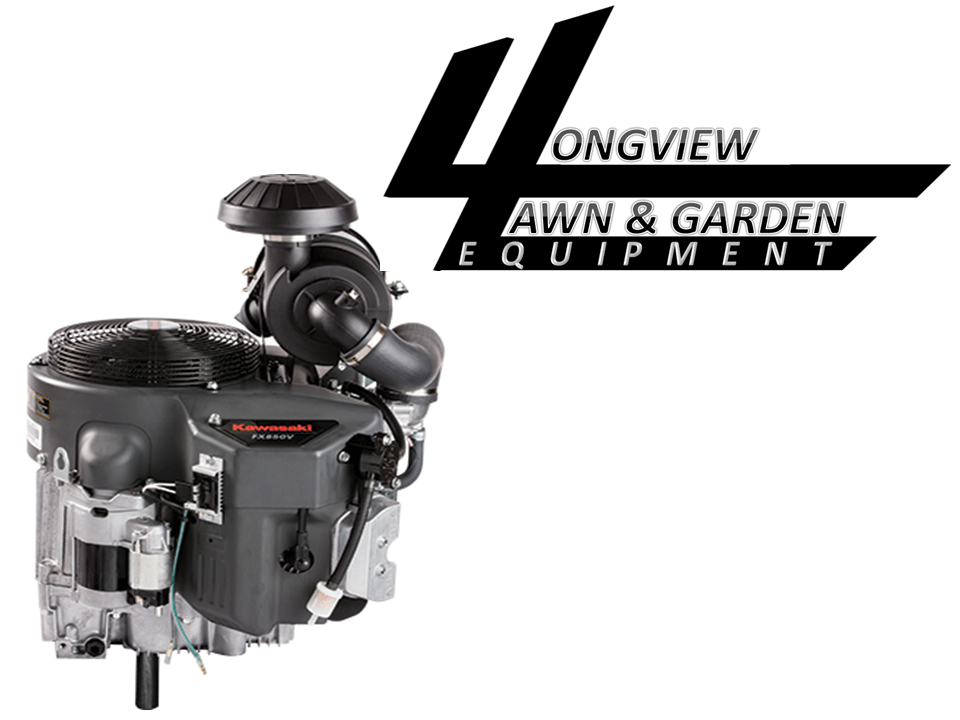

2026 Kawasaki Engines 27 hp FX Series Vertical Shaft - FX850V-MS00S

Factory Freight: $130.00

Crankshaft: 4 9/32" (108.8 MM), 1 1/8",

Muffler Not Included

New Muffler will be required if replacing FH Series Engines

Scag SVR, Cheetah Application

•Overhead v-valve

•90° V-twin

•Pressurized lubrication system

•Electronic spark ignition

•Automatic compression release

•High efficiency oil cooler

•Rotating metal grass chopper screen

•Multi-Stage canister air filter

•Cast-iron cylinder liners

•Metal engine cover with integrated clean out ports

•Heavy duty shift-type starter

Specifications

Displacement 852 cc (52.0 cu. in.)

Number of Cylinders 2

Bore x Stroke 3.33 x 2.99 in. (84.5 x 76mm)

Compression Ratio 8.2:1

Oil capacity w/filter 2.1 U.S. qt ( 2.0 liters)

Maximum Power 27.0 hp (20.1 kW) at 3,600 RPM

Maximum Torque 44.6 ft lbs (60.5 N·m) at 2,400 RPM

Dry weight w/o muffler 105.0 lbs (47.6 kg)
