2027 Cub Cadet ZTXS5 54

2027 Cub Cadet ZTXS5 54

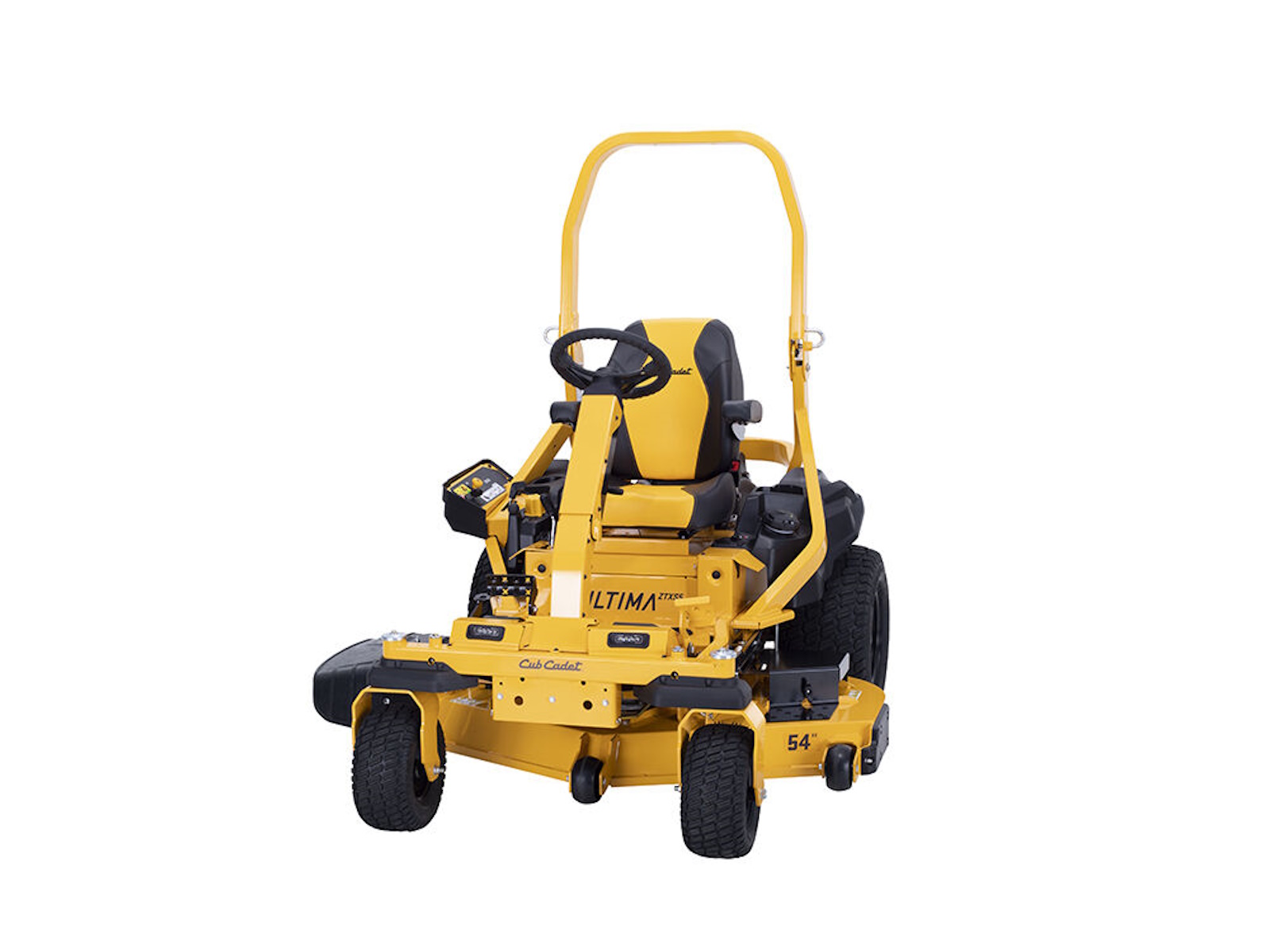

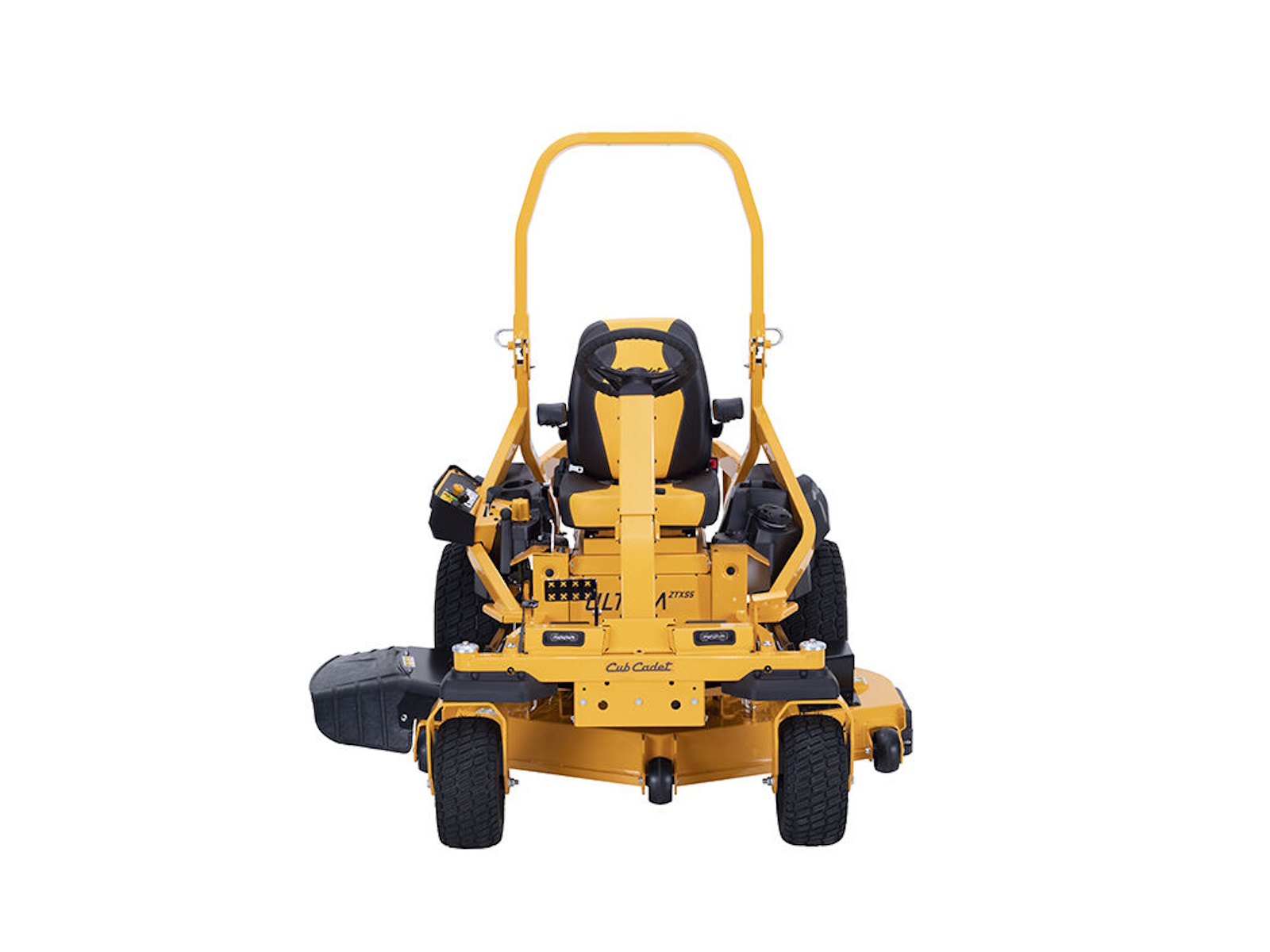

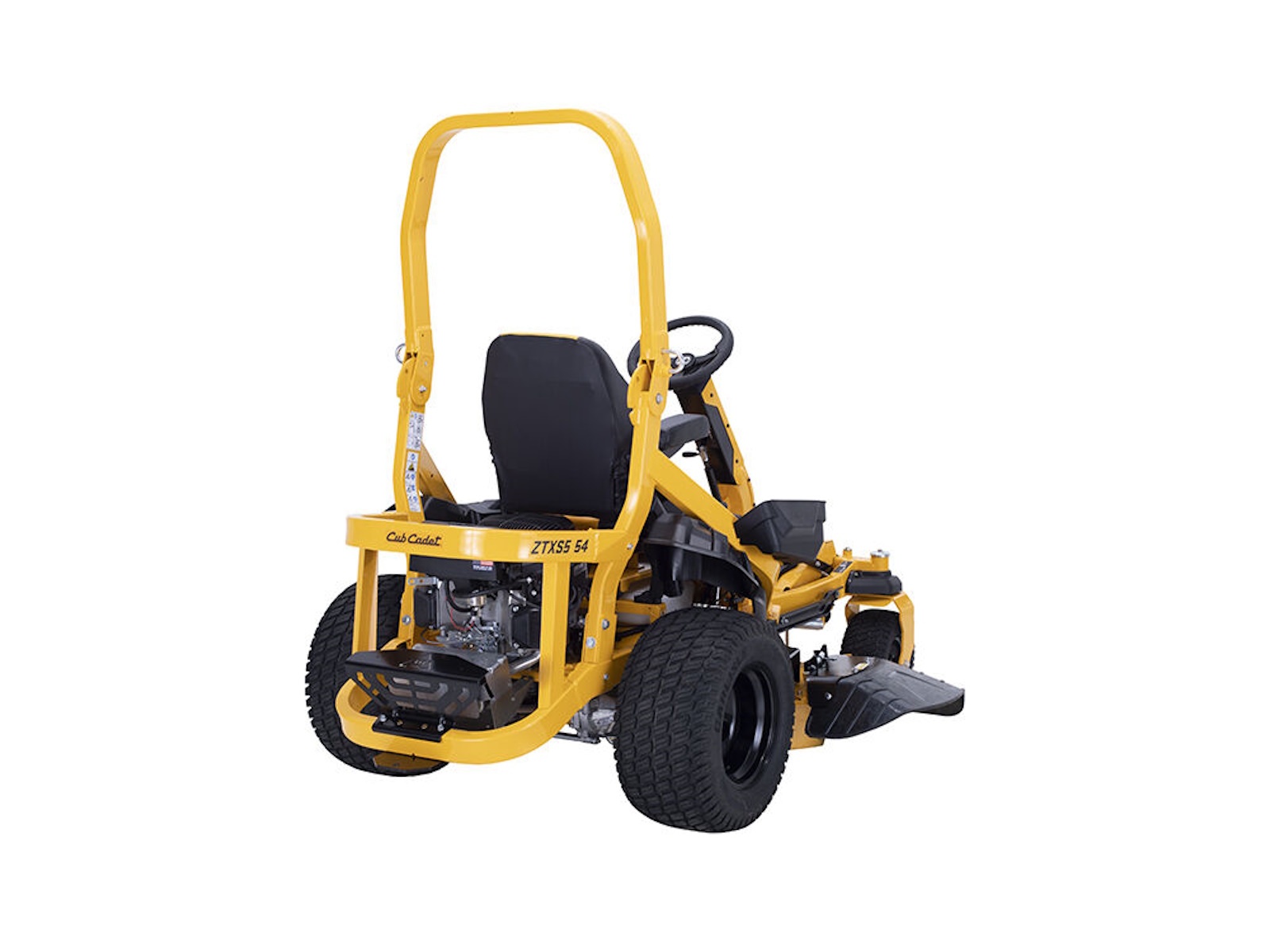

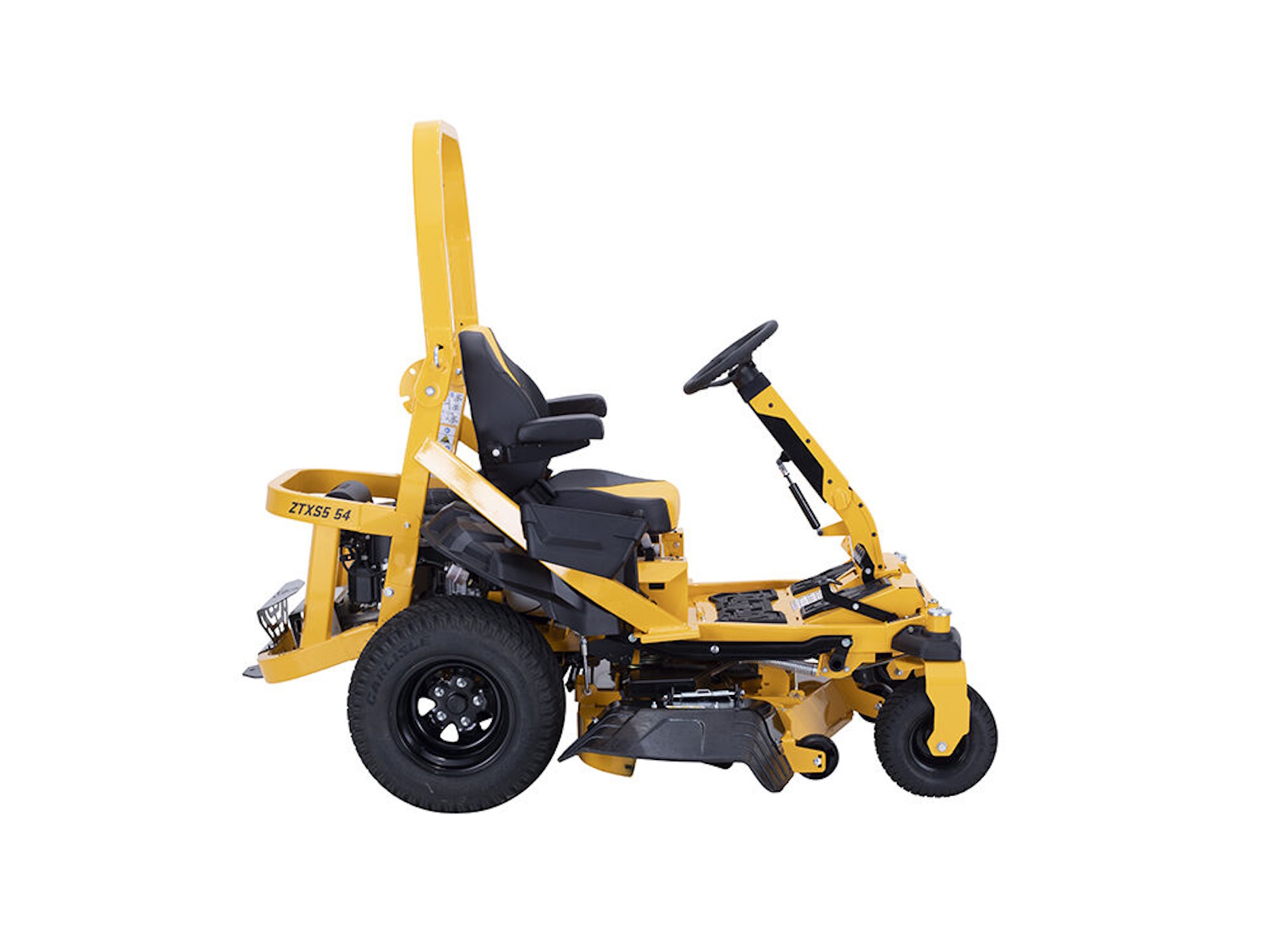

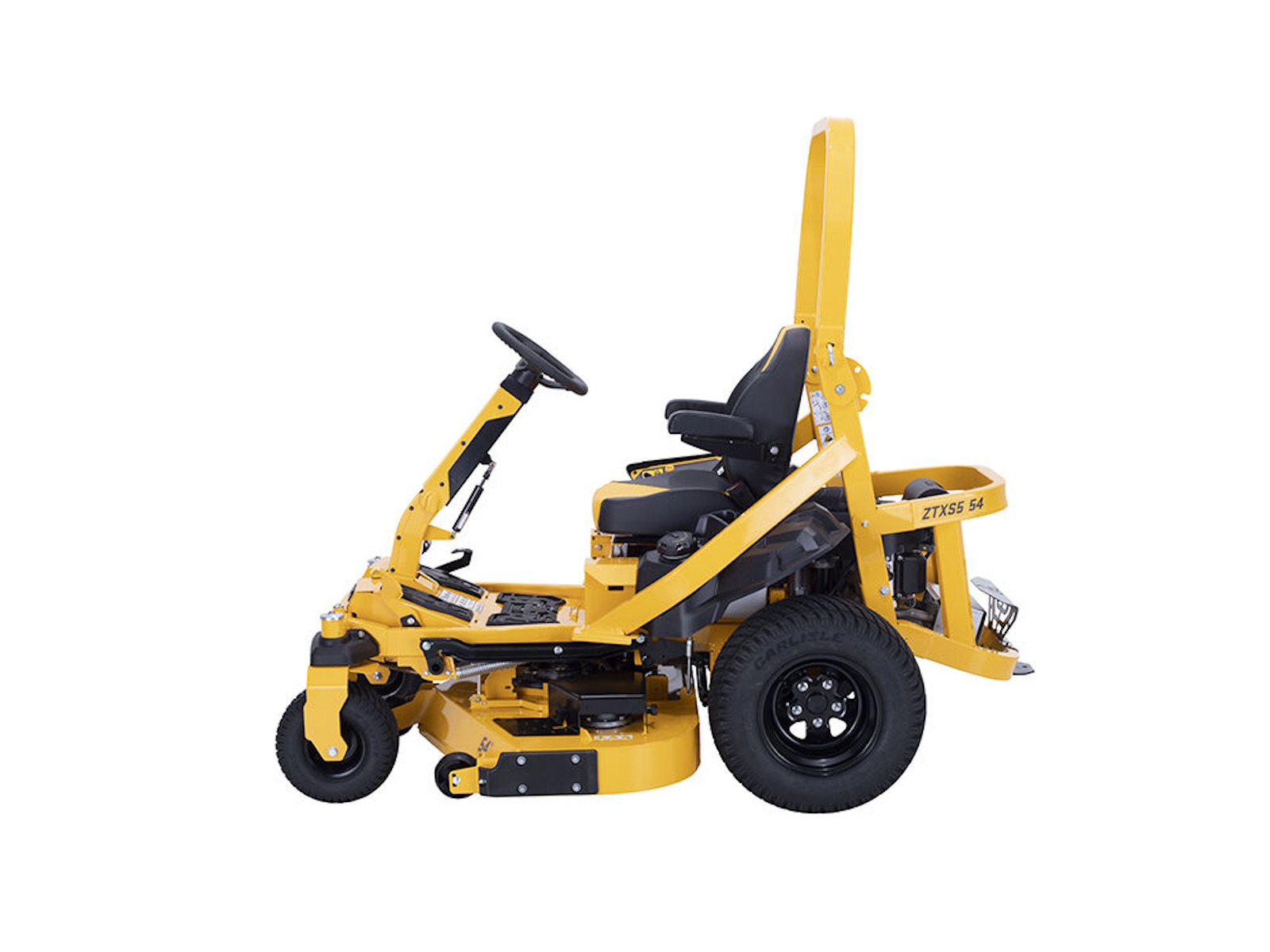

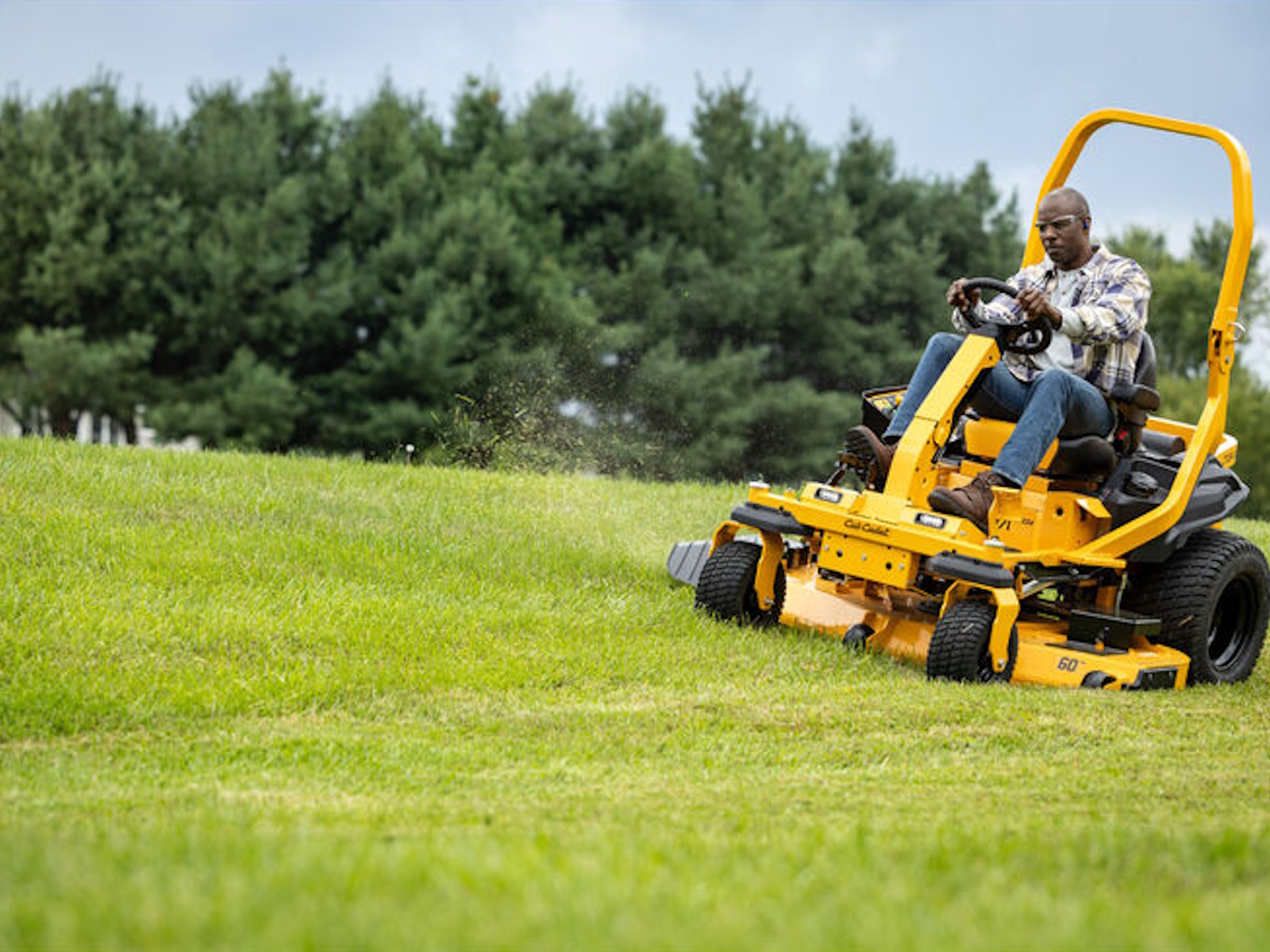

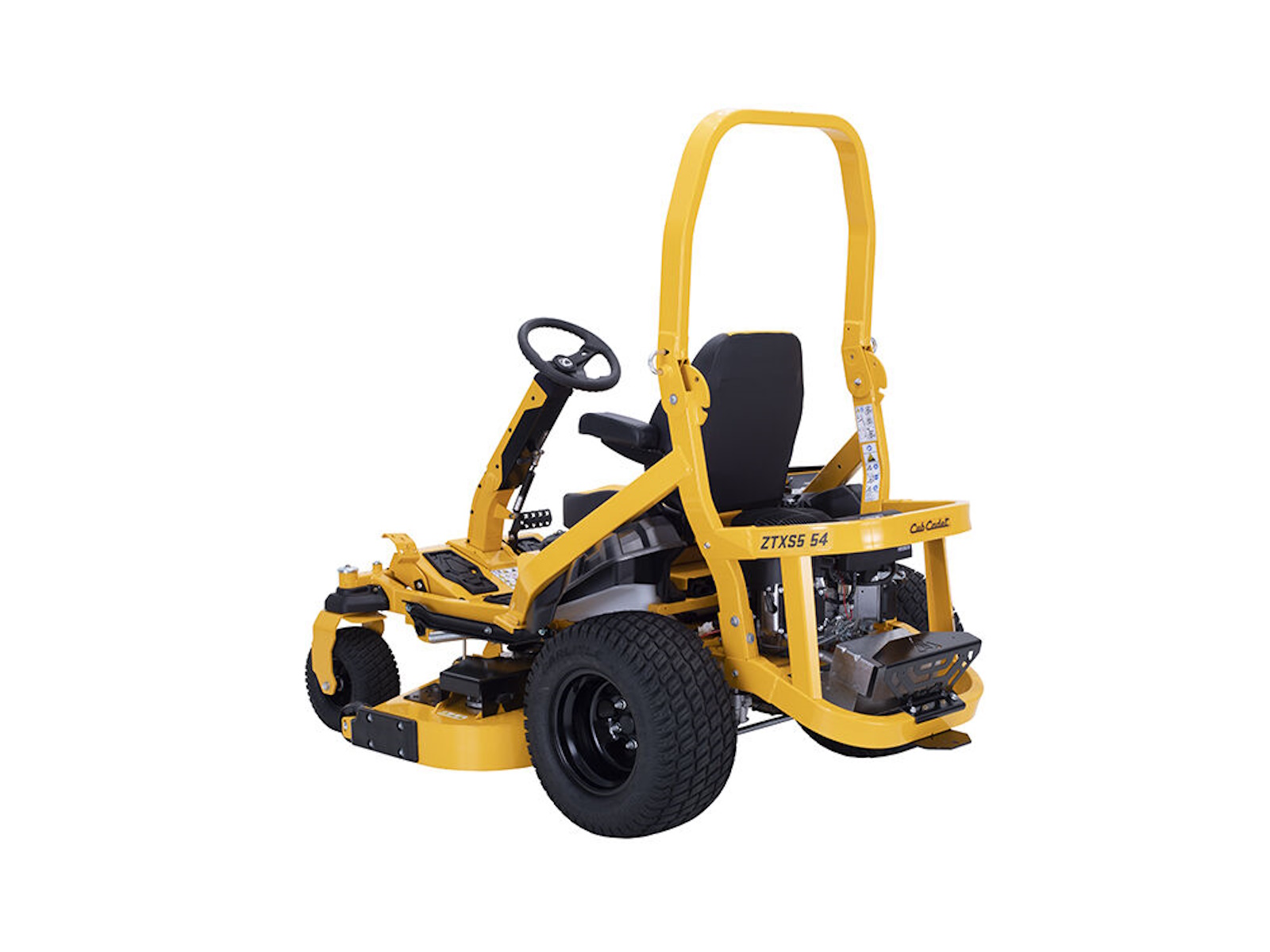

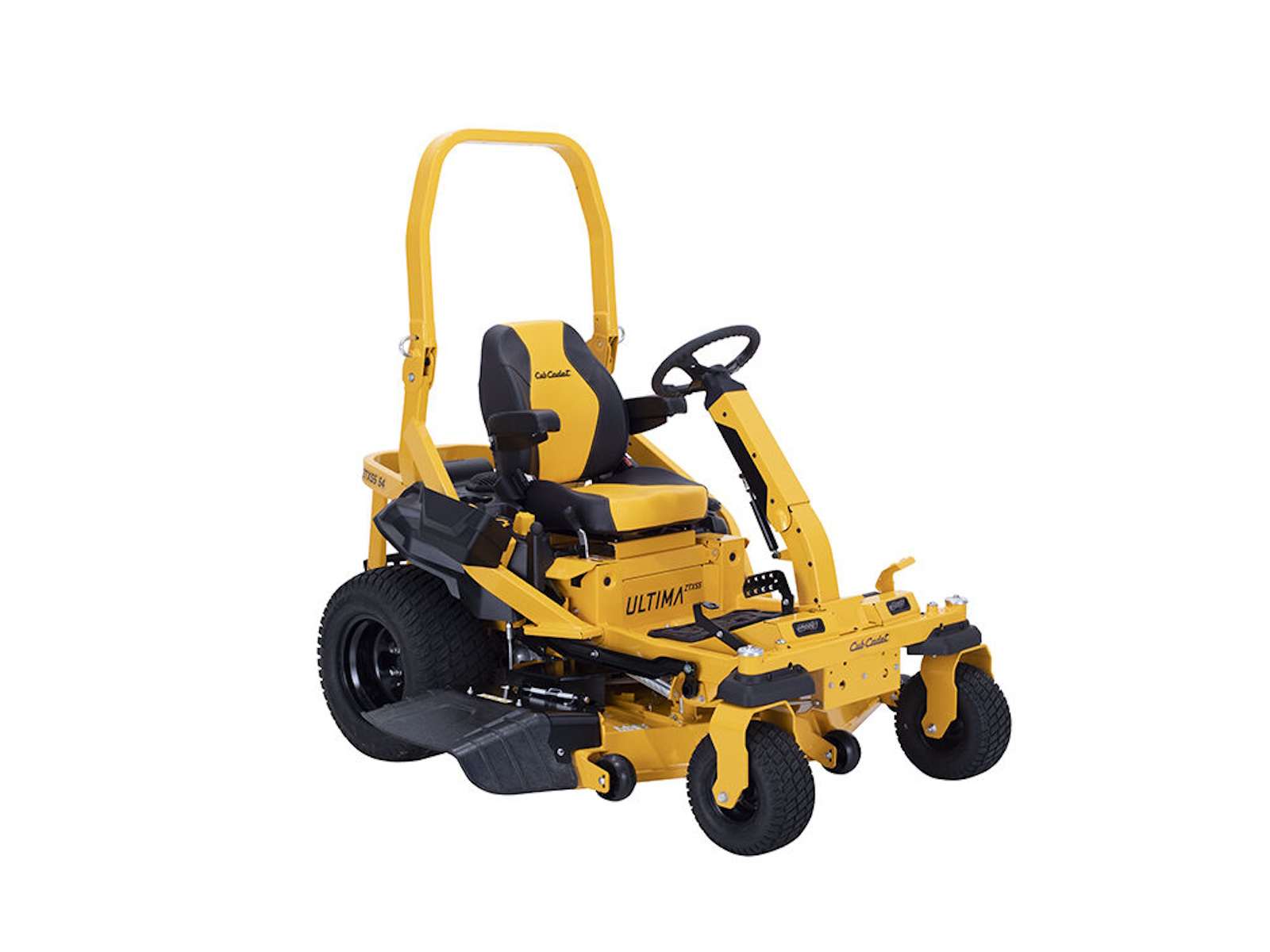

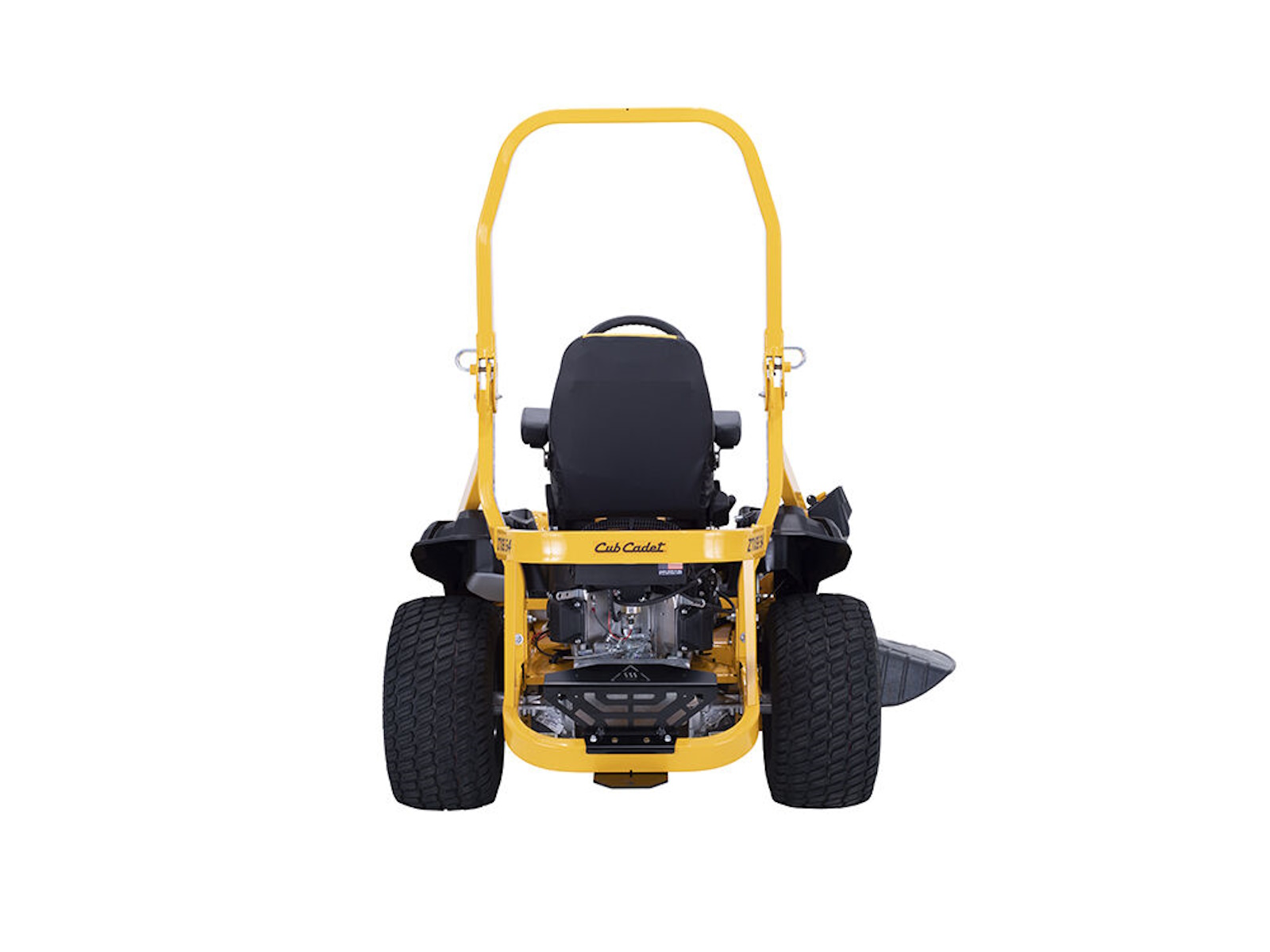

The Cub Cadet® Ultima Series ZTXS5 54 is a 54-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ Max reinforced fabricated deck, which is designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. The Synchro-Steer™ technology provides 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees.

• Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°

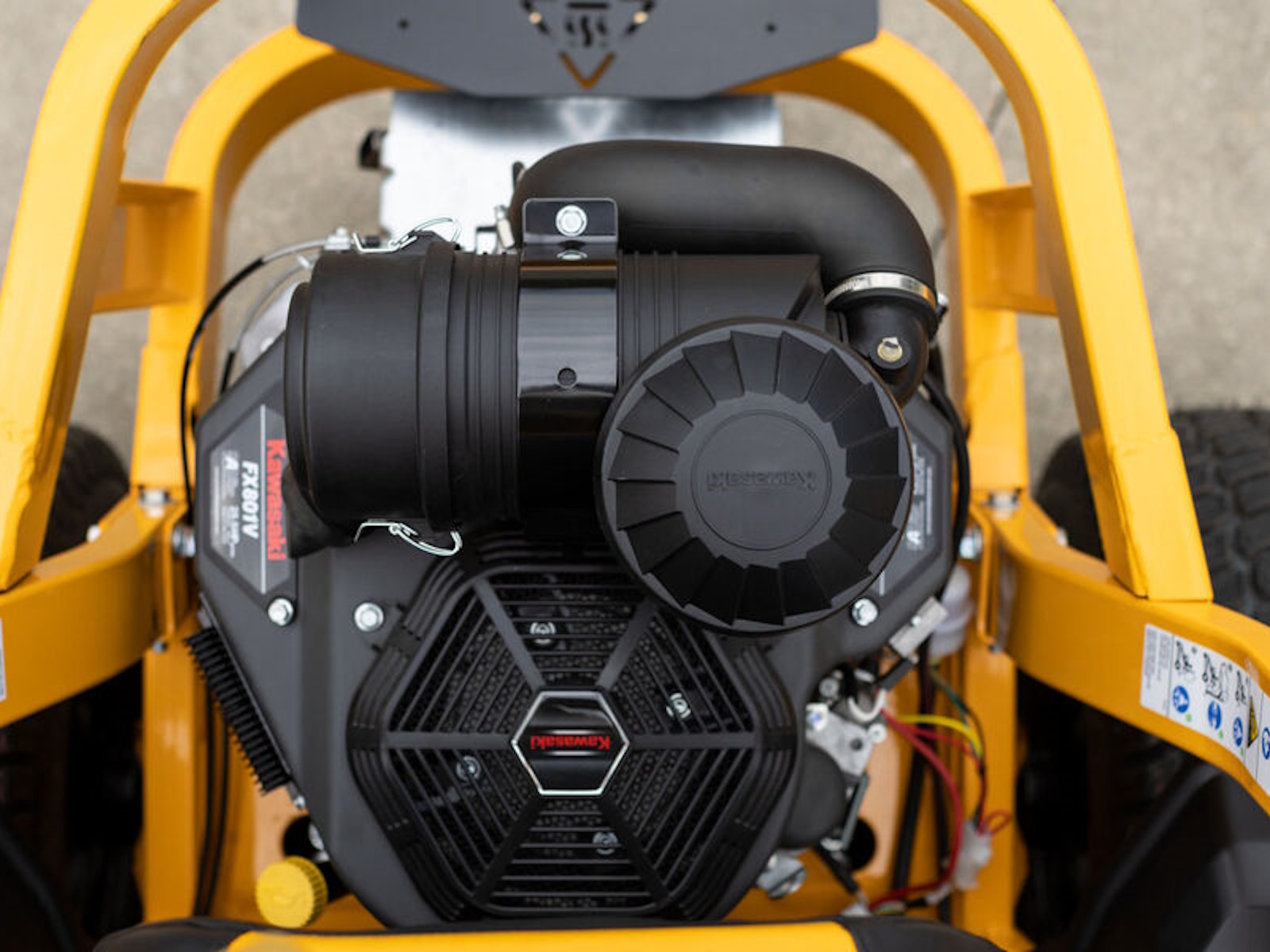

• A 24 HP* Kawasaki FS Series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
• A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear

Features May Include:

Excellent Stability On Hills

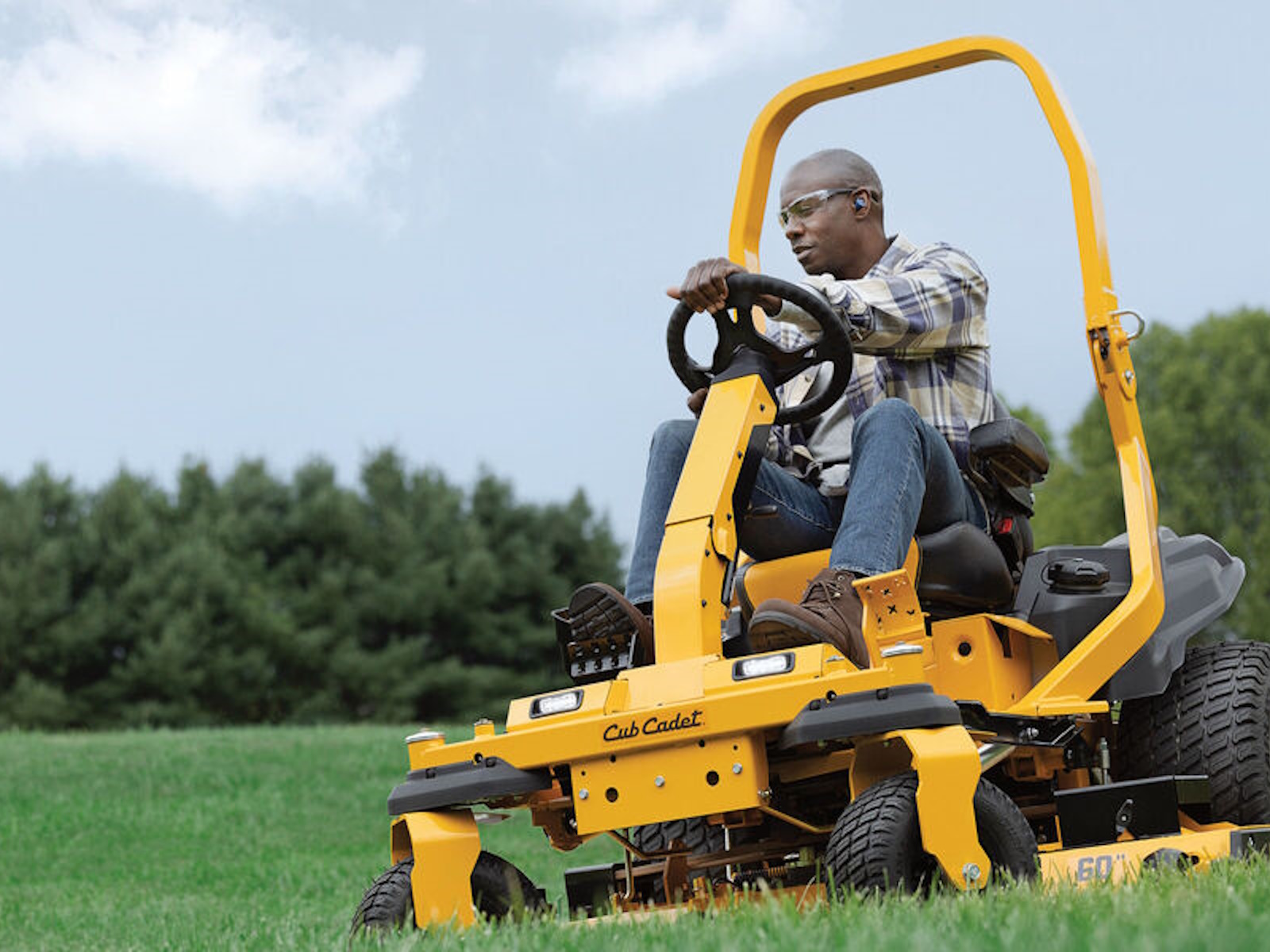

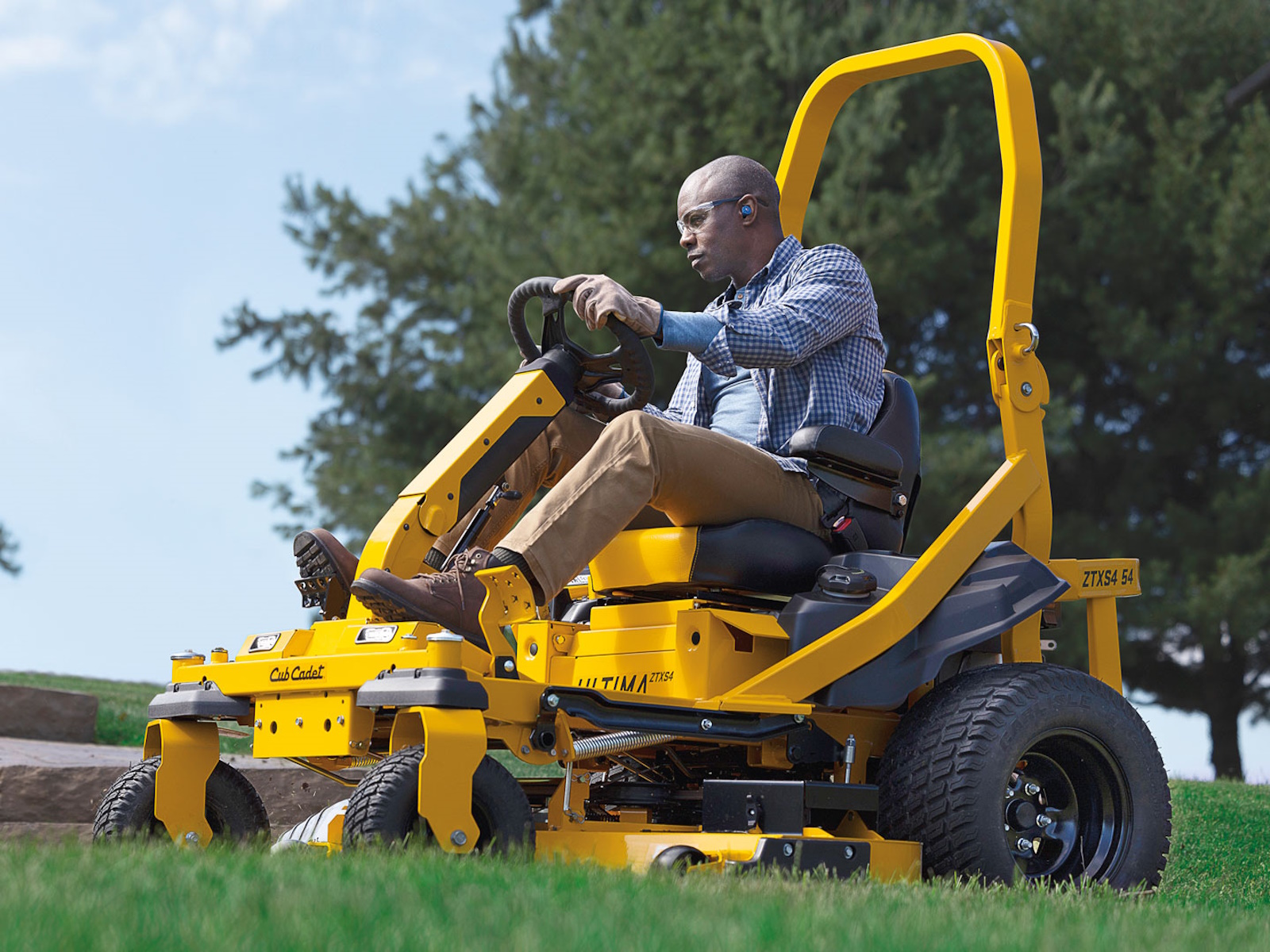

• Synchro-Steer™ technology delivers four-wheel control, providing straight-line mowing on hillsides and slopes up to 20-degrees

Premium Cut

• AeroForce™ Max reinforced fabricated steel cutting decks designed to deliver high quality results and mow a wide area of grass to help minimize cutting time.

Strong, Durable Frame

• A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system helps protect against wear and tear

Turf Master® Tires

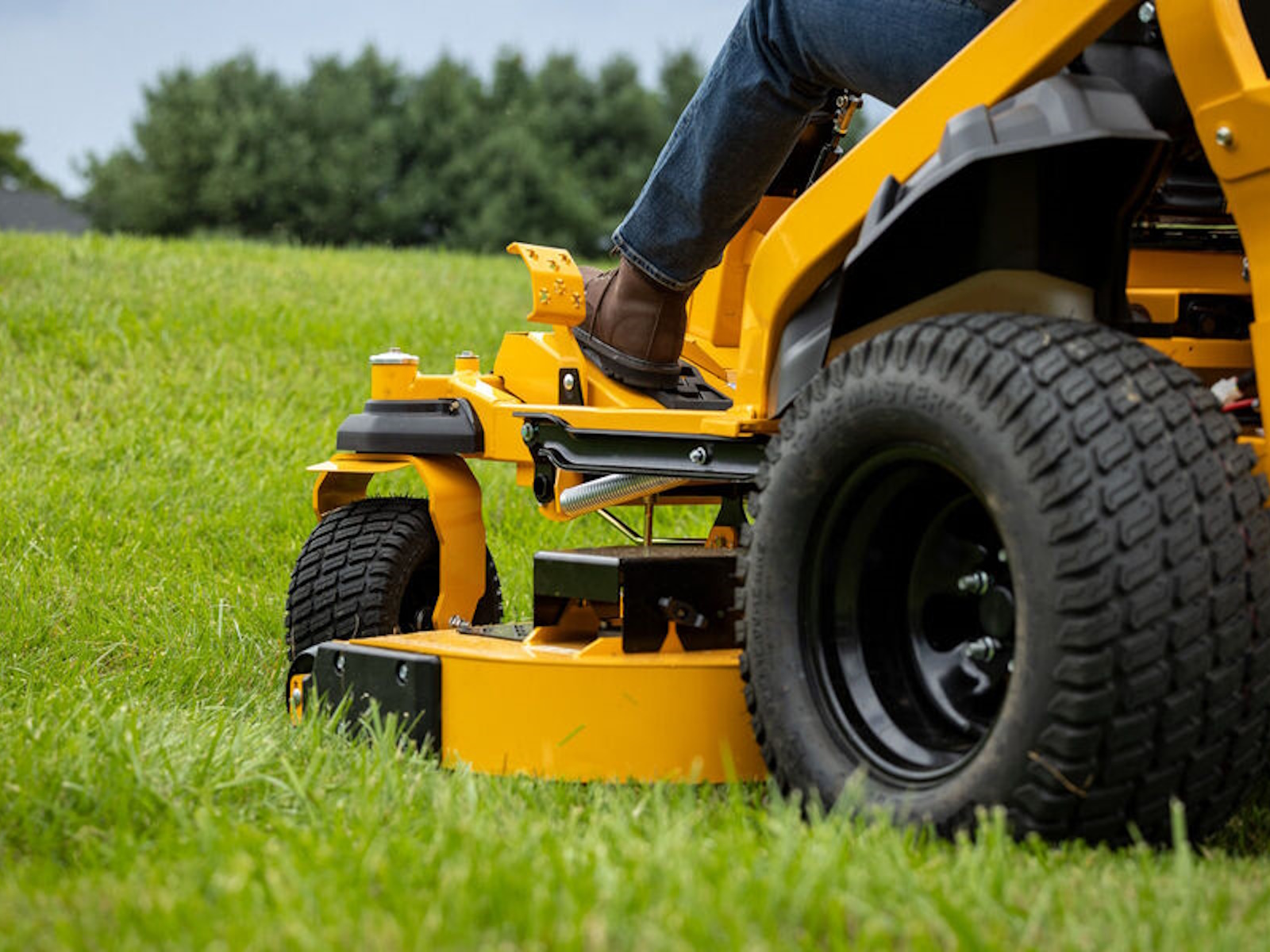

• Turf Master® tires designed to help minimize turfing and provide traction and stability on hills.

Ride In Comfort

• SoftTouch steering wheel and an adjustable steering column that tilts for easy steering and great handling on hills and uneven terrain.

Customize Your Machine

• Unlock the full potential of your Ultima ZTXS with a variety of attachments and accessories (sold separately).

Easy Maintenance

• An open frame design and hinged/removable floor pan allow easy access to the deck and engine for easy maintenance

Strong Warranty

• 4-year/800-hour limited product warranty, lifetime limited frame and fabricated deck shell warranty for the ultimate peace of mind

Options:

Engine

• Engine Brand: Kawasaki®

• Engine Model: FS Series

• Engine Model Number: 730R

• Engine Displacement: 726cc

• Engine Output: 24HP

• Starter Type: Electric

• Fuel Tank Capacity: 5.5 gal. US (20.82 L)

• Cylinders: Twin

• Engine Start: Ignition Key

• Engine Oil Capacity: 2.1 qt US ( 2 L)

• Lubrication: Fully pressurized

• Charging System: 12 amp regulated

• Fuel Gauge: Yes

• Governor: Mechanical

• Choke: Choke-a-matic

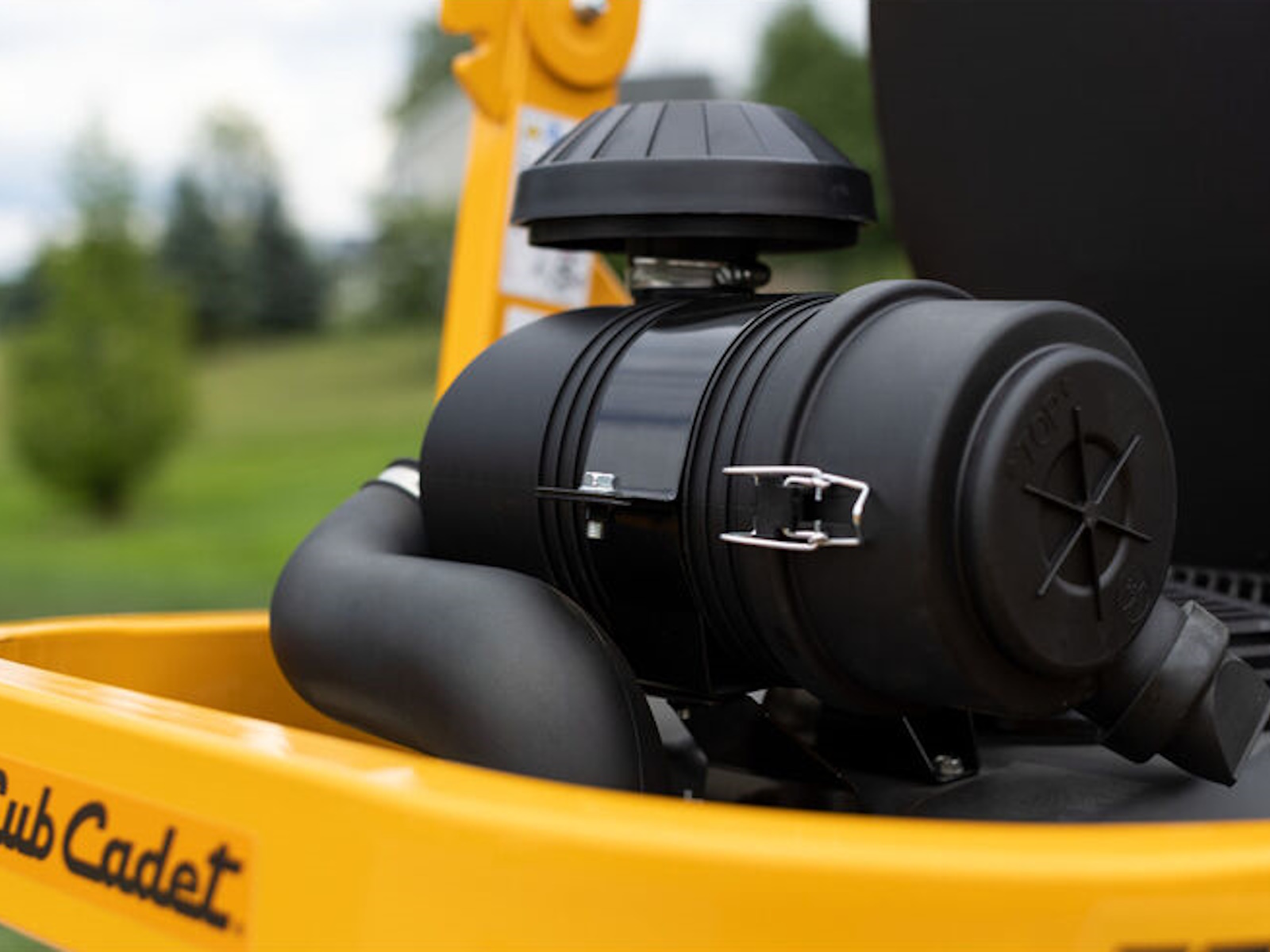

• Air Filter: Dual element

• Oil Filter: Yes

• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA

• Battery Type: Lead Acid

• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3200

• Forward Speed: 8.5 MPH / 13.7 km/h

• Reverse Speed: 3.5 MPH / 5.6 km/h

• Drive System: Hydrostatic

• Serviceable Transmission: Yes (Serviceable)

Cutting Deck

• Deck Cutting Width: 54 in

• Deck Wash: No

• Deck Material: 10-gauge steel with 2-gauge reinforcement

• Deck Engagement (PTO): Electric

• Deck Construction: Reinforced Fabricated

• Blade(s): Three

• Deck Lift: Foot pedal with Dial Adjust

• Cutting Height Range: 1" - 4.75"

• Anti-Scalping: Three gauge wheels

• Deck Positions: 17

Chassis

• Frame: 1.5" x 3" tubular steel

• Turning Radius: 0°

• ROPS: Yes

• Rear Tow Hitch: Yes

• Corrosion Protection: Yes

• Front Caster Yokes: 5/16" Steel

Controls

• Cruise Control: No

• Brakes: Disc

• Steering Control: Steering Wheel

Comfort

• Seat Type: 24" high back

• Armrests: Yes

• Seat Adjustment: Lever

• Front Caster Suspension: No

Wheels

• Rear Tires: 23"x 12"-12"

• Front Tires: 13"x 6.5"-6"

• Tire Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTXS

Additional Specifications

• Hour Meter: Yes

• Mulch Kit: Available separately

• Headlight(s): Dual-LED

• Cup Holder: Yes

• Operator Presence System: Yes

• Parking Brake: Foot Controlled

• Model Number: 47RTCAB7010
