2023 Smithco 1110

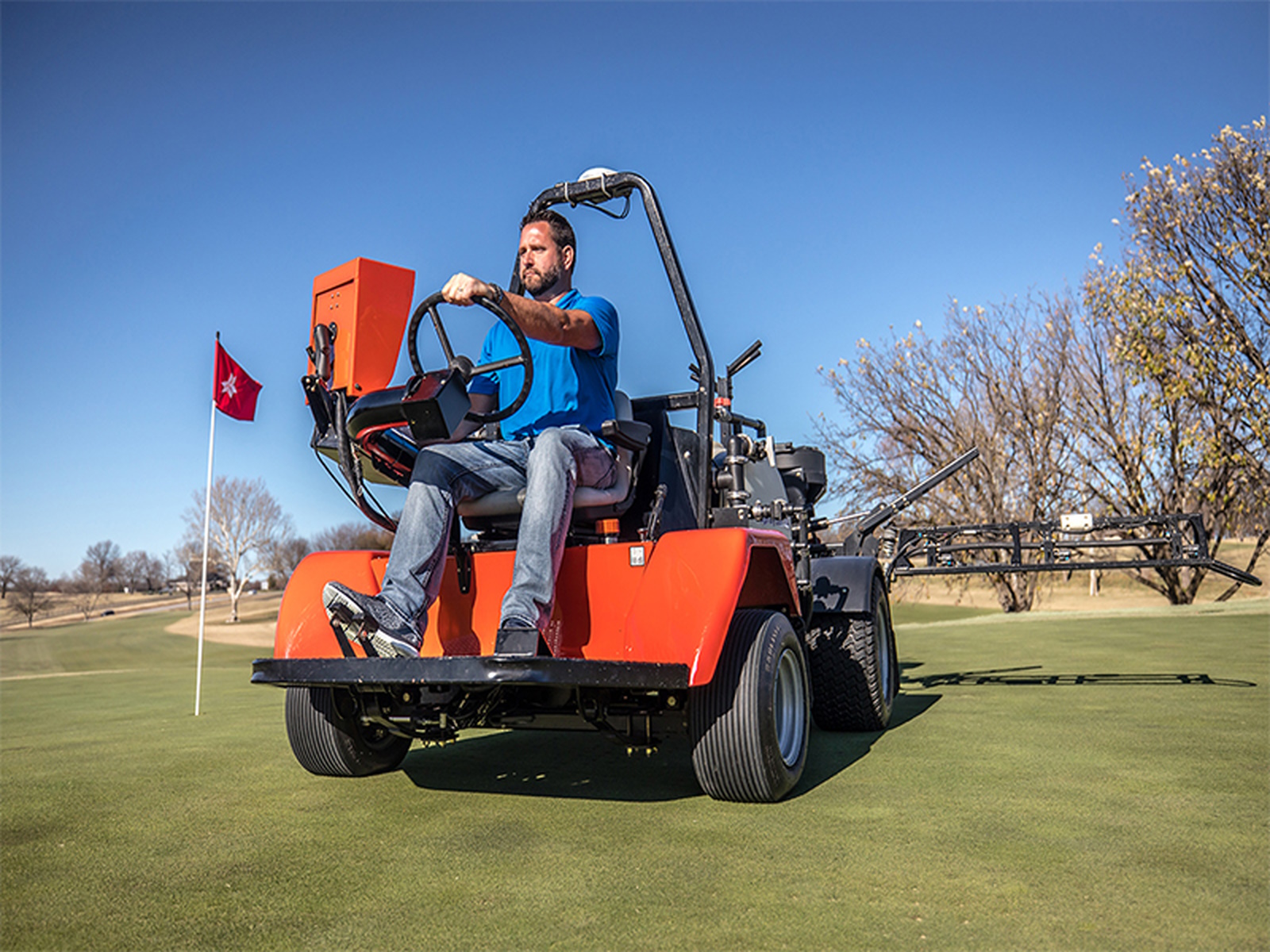

2023 Smithco SPRAY STAR 1110 SPRAY VEHICLE

No one matches our 9 years of experience developing the most precise application available for spraying chemicals on turf. With our Partner, TeeJet® Technologies, the Star Command System features all of TeeJet’s® previous benefits available on every Star Command sprayer, as well as these exclusive new features:

TURN COMPENSATION corrects flow to keep application rates on target through turns as tight as 20 feet. It lets you avoid straight- line applications on contoured area or rates varying as much as 50% from the inside to the outside of a boom. That doubles the application rate on the inside and cuts the outside rate in half.

TEN INCH NOZZLE SPACING to cut off-target applications in half. This spacing also allows for more efficacy because of increased overlap of the spray patterns.

VIRTUAL, ON-SCREEN NOZZLE CONTROL. TeeJet’s® new job computers operate up to 100 nozzle sections that can be controlled individually. This eliminates the need for extra cabling and job-stopping failure of mechanical switches.

THE DYNAJET SYSTEM is also incorporated into the TeeJet Matrix controller, eliminating extra cabling and separate controller.

TERRASTAR-C PRO significantly reduces Convergence Time, to as little as 90 seconds or less.

SPRAY STAR 1110 WITH STAR COMMAND I SYSTEM & 15 FOOT (4.5M) SPRAY BOOM

• Advanced Rate Control Field Computer (TeeJet Radion 8140) with DynaJet Pulse Width Modulation System. Presssure and droplet size control. Wide range of ground speed. Purpose-built spray boom with dual nozzles and dual solenoid valves

SPRAY STAR 1110 WITH STAR COMMAND I SYSTEM & 18.5 FOOT (5.5M) SPRAY BOOM

• Same extreme application ability as Model 1011A (Above) except 18.5 Foot/5.5m Spray Boom

SPRAY STAR 1110 WITH STAR COMMAND II SYSTEM & 15 FOOT (4.5M) SPRAY BOOM

• Advanced precision TeeJet Matrix GPS Satellite guided Field Computer. Terra Star Antenna for use with GS, WAAS & Glonass Satellites. Provides Sub-2 in (5 cm) position control and permanently retained mapping. Smithco/TeeJet DynaJet Pulse Width Modulation. Pressure & droplet size control. Wide ground speed range. Purpose built 5 ft (4.5 meter) Spray Boom. Dual Nozzle-Dual Solenoid Valve System.

SPRAY STAR 1110 WITH STAR COMMAND II SYSTEM & 18.5 FOOT (5.5M) SPRAY BOOM

• Same extreme application accuracy as Model 1015 (Above) except 18.5 ft./5.5mm Spray Boom. Same Annual Subscription Required for GS, GPS & Glonass Satellites. CE & British Sprayer Standards compliance (Optional at extra cost).
